Запчасти Case SV212 (75.200.03[01]) - DRUM, SMOOTH VIBRATORY (ACE) - BSN NANTC2081 (75) - SOIL PREPARATION

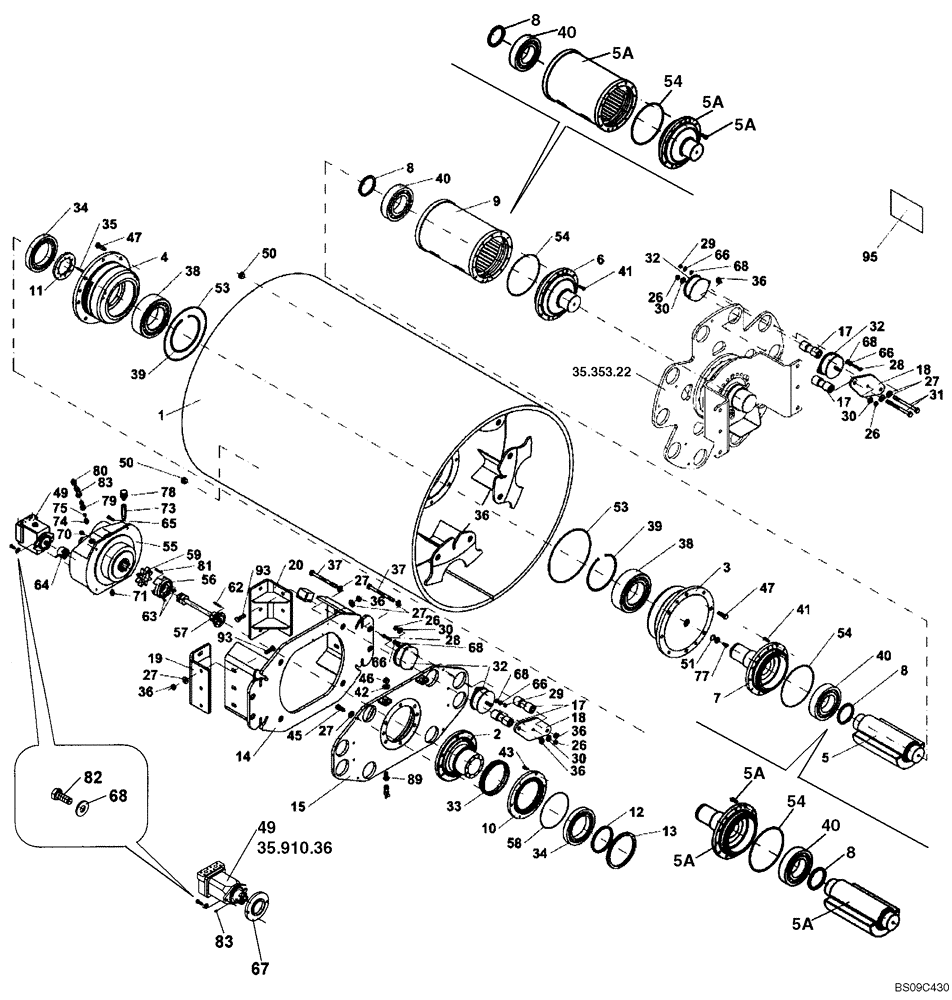

Схема запчастей Case SV212 - (75.200.03[01]) - DRUM, SMOOTH VIBRATORY (ACE) - BSN NANTC2081 (75) - SOIL PREPARATION
49
15
55
36
34
54
66
6
26
67
50
18
5
28
93
46
63
68
47
40
40
57
59
45
19
66
27
9
66
73
18
5a
5a
68
32
26
29
30
32
50
38
40
8
33
83
30
65
10
34
5a
58
42
35
27
31
93
17
82
14
83
36
11
80
26
17
37
38
40
95
37
49
68
4
79
36
51
56
64
5a
5a
17
77
2
26
75
29
30
5a
70
62
30
47
68
8
3
41
68
27
66
36
54
74
54
27
7
36
78
35.910.36
35.353.22
13
32
71
39
39
8
53
28
8
54
43
53
36
41
81
27
20
89
1
12

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

INSTRUCTION DRUM, SMOOTH VIBBRATORY (ND123545) (GROUP 8)

1шт.

1

ND123544

DRUM

1шт.

2

ND123591

FLANGE

1шт.

3

ND123585

FRAME

1шт.

4

ND123586

FLANGE

1шт.

5

ND123587

SHAFT

No Longer Used; Service With Complete Assy - Sub to ND145759 Item 5A

1шт.

5a

ND145759

SHAFT

No Longer Used; Service With Complete Assy - Sub to ND145759 Item 5A

1шт.

6

ND123592

FLANGE

No Longer Used; Service With Complete Assy - Sub to ND145759 Item 5A

1шт.

7

ND123588

SHAFT

No Longer Used; Service With Complete Assy - Sub to ND145759 Item 5A

1шт.

8

ND125056

SEAL

2шт.

9

ND128370

ECCENTRIC

No Longer Used; Service With Complete Assy - Sub to ND145759 Item 5A

1шт.

10

ND123601

SEAL

1шт.

11

ND123589

RING

1шт.

12

ND123595

RING

1шт.

13

ND123594

RING

1шт.

14

ND123596

BRACKET

1шт.

15

ND123597

BRACKET

1шт.

17

ND123598

PIPE

18шт.

18

ND123600

BRACKET

9шт.

19

ND123606

BRACKET

1шт.

20

ND123607

BRACKET

1шт.

26

ND021851

NUT

18шт.

27

ND029270

WASHER

60шт.

28

ND021209

BOLT

18шт.

29

ND034086

NUT

18шт.

30

ND029269

WASHER

20шт.

31

ND122269

BOLT

10шт.

32

ND122466

RUBBER MOUNTING

18шт.

33

ND122462

PACKING

1шт.

34

ND122459

BALL BEARING

2шт.

35

ND021187

BOLT

10шт.

36

ND021853

NUT

28шт.

37

ND122270

BOLT

8шт.

38

ND122461

ROLLER BEARING

2шт.

39

ND069916

SNAP RING

2шт.

40

ND122460

ROLLER BEARING

2шт.

41

ND122368

BOLT

No Longer Required

24шт.

42

ND035944

WASHER

2шт.

43

ND024270

BOLT

6шт.

45

ND021344

BOLT

22шт.

46

ND026474

NUT

2шт.

47

ND123237

BOLT

28шт.

49

NSS

NOT SOLD SEPARAT

ND141903 Motor, Hydraulic, Replaces ND128668 Motor, Hydraulic; For Service Breakdown See Figure 35.910.36

1шт.

50

ND065636

PLUG

Replaces ND062401 Plug Used On Some Models

2шт.

51

ND073368

SEAL

1шт.

53

ND122465

RING

2шт.

54

ND122463

RING

2шт.

55

ND122473

GEARBOX

1шт.

56

ND122468

COUPLING

1шт.

57

ND122469

COUPLING

1шт.

58

ND122464

RING

1шт.

59

ND122471

GEAR

1шт.

62

ND021175

BOLT

6шт.

63

ND122273

PIN

4-5шт.

64

ND122470

COUPLING

1шт.

65

ND122271

BOLT

4шт.

66

ND029267

WASHER

6шт.

67

ND141902

FLANGE

1шт.

68

ND122456

WASHER

4шт.

70

ND062220

HYD CONNECTOR

1шт.

71

ND062110

HYD CONNECTOR

1шт.

73

ND123604

EXTENSION

1шт.

74

ND123603

HYD CONNECTOR

1шт.

75

ND138910

ORIFICE

1шт.

77

ND125875

BLEEDER VALVE

1шт.

78

ND122458

FILTER

1шт.

79

ND062394

HYD CONNECTOR

1шт.

80

ND062446

REDUCER FITTING

1шт.

81

ND107945

BOLT

4шт.

82

ND034158

BOLT

Replaces ND119917 Bolt Used on Some Models

2шт.

83

ND062367

HYD CONNECTOR

1шт.

89

ND138000

BOLT

2шт.

93

ND123238

BOLT

36шт.

95

ND133094

DECAL

2шт.

Выбрано товаров: 74
