Запчасти Case SV212 (75.000.01) - SOIL PREPARATION - DRUM ASSY - SECTION PICTORIAL 1/1 (75) - SOIL PREPARATION

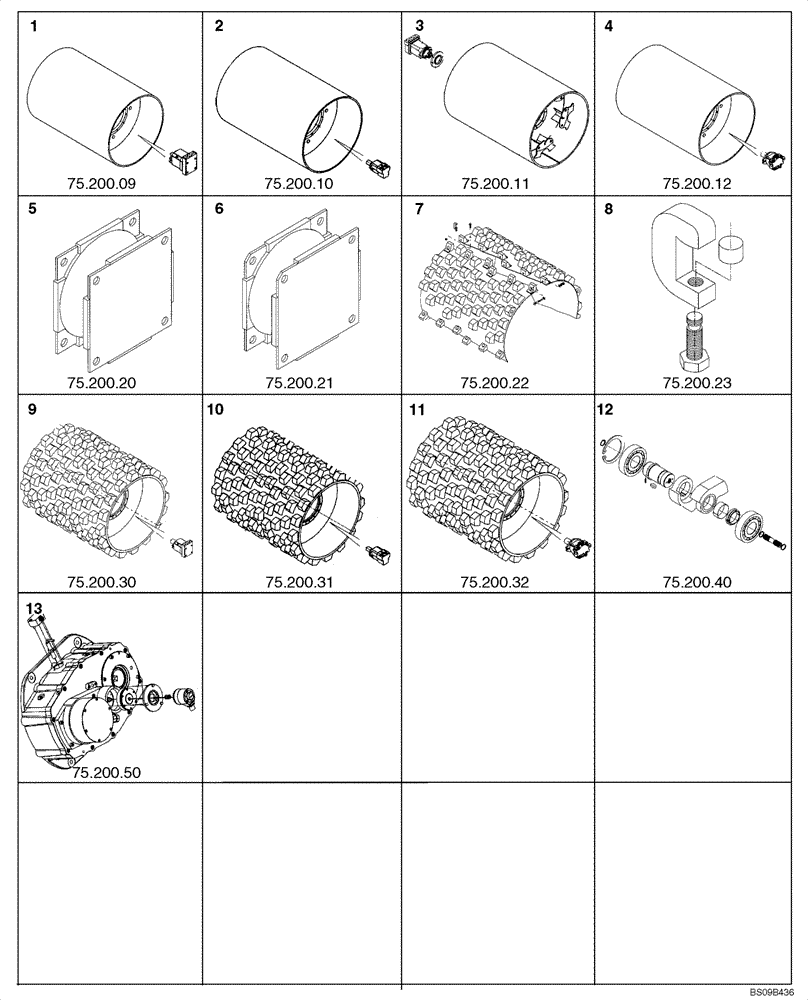

Схема запчастей Case SV212 - (75.000.01) - SOIL PREPARATION - DRUM ASSY - SECTION PICTORIAL 1/1 (75) - SOIL PREPARATION
12
11
7
13
1
2
75.200.20
75.200.10
75.200.09
75.200.23
75.200.22
75.200.30
75.200.31
75.200.21
75.200.12
75.200.11
75.200.40
75.200.32
75.200.50
9
10
5
8
4
3
6

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

SOIL PREPARATION - DRUM ASSY - SECTION PICTORIAL

1шт.

1

REF

INSTRUCTION

Drum, Smooth Vibratory - For Service Breakdown See Figure 75.200.09

1шт.

2

REF

INSTRUCTION

Drum, Smooth Vibratory - For Service Breakdown See Figure 75.200.10

1шт.

3

REF

INSTRUCTION

Drum, Smooth Vibratory - For Service Breakdown See Figure 75.200.11

1шт.

4

REF

INSTRUCTION

Drum, Smooth Vibratory - For Service Breakdown See Figure 75.200.12

1шт.

5

REF

INSTRUCTION

Mountings, Rubber - For Service Breakdown See Figure 75.200.20

1шт.

6

REF

INSTRUCTION

Mounting, Rubber - For Service Breakdown See Figure 75.200.21

1шт.

7

REF

INSTRUCTION

Segments, Pad Foot Adapting - For Service Breakdown See Figure 75.200.22

1шт.

8

REF

INSTRUCTION

Clamps, Fixing - For Service Breakdown See Figure 75.200.23

1шт.

9

REF

INSTRUCTION

Drum, Pad Foot Vibratory - For Service Breakdown See Figure 75.200.30

1шт.

10

REF

INSTRUCTION

Drum, Pad Foot Vibratory - For Service Breakdown See Figure 75.200.31

1шт.

11

REF

INSTRUCTION

Drum, Pad Foot Vibratory - For Service Breakdown See Figure 75.200.32

1шт.

12

REF

INSTRUCTION

Vibrator, Drum - For Service Breakdown See Figure 75.200.40

1шт.

13

REF

INSTRUCTION

Sensors, Vibratory Drum Gearbox - For Service Breakdown See Figure 75.200.50

1шт.
