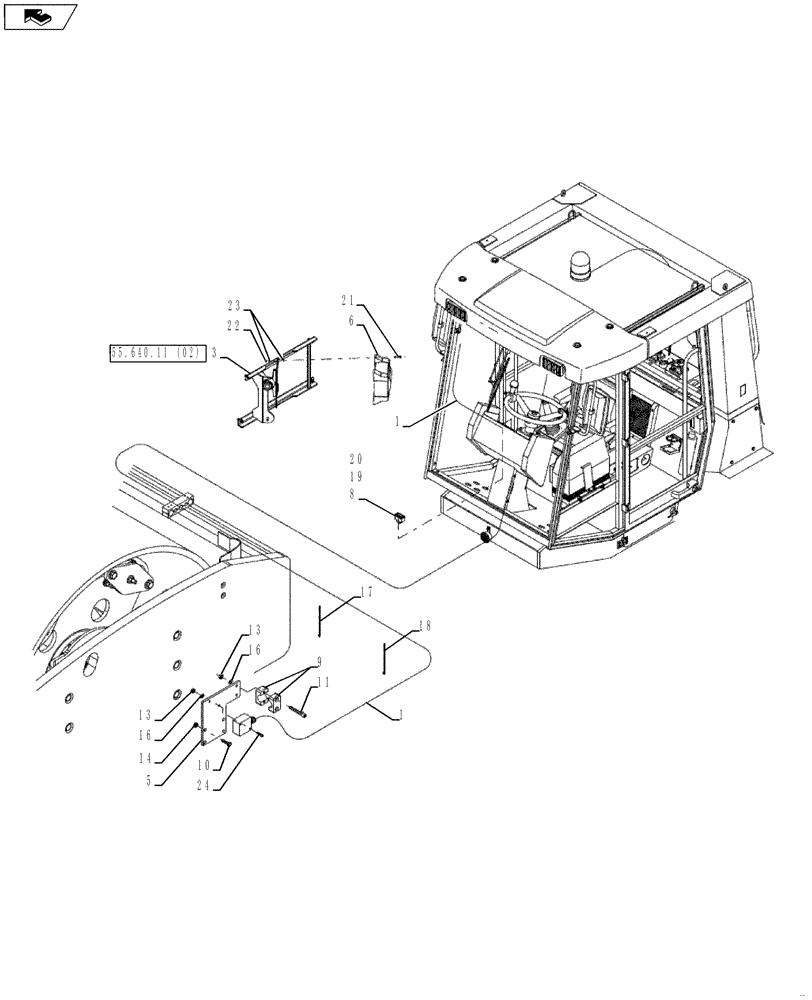

Запчасти Case SV212 (55.640.12[01]) - METER INSTALLATION W/O PRINTER - BSN NANTC2084 (55) - ELECTRICAL SYSTEMS

1

ND142379

HARNESS

1шт.

3

NSS

NOT SOLD SEPARAT

Bracket Assy; See Figure 55.640.11 (02)

1шт.

5

ND142386

BRACKET

1шт.

6

ND140414

METER

1шт.

8

ND065399

SWITCH

1шт.

9

ND064814

CLAMP

1шт.

10

ND021187

BOLT

4шт.

11

ND024237

BOLT

2шт.

13

ND027300

NUT

4шт.

14

ND034087

NUT

4шт.

16

ND029248

WASHER

8шт.

17

ND078447

CABLE TIE

CABLE STRAP

5шт.

18

ND078445

SECURING STRAP

5шт.

19

ND141687

SYMBOL

1шт.

20

ND117687

TYPE PLATE

1шт.

21

ND110229

BOLT

4шт.

22

ND107948

LOCK NUT

4шт.

23

ND029247

WASHER

8шт.

24

ND024234

BOLT

2шт.
