(55.640.08) - BOX, ELECTRICAL DISTRIBUTION (ACE)

Запчасти Case SV212 (55.640.08) - BOX, ELECTRICAL DISTRIBUTION (ACE) (55) - ELECTRICAL SYSTEMS

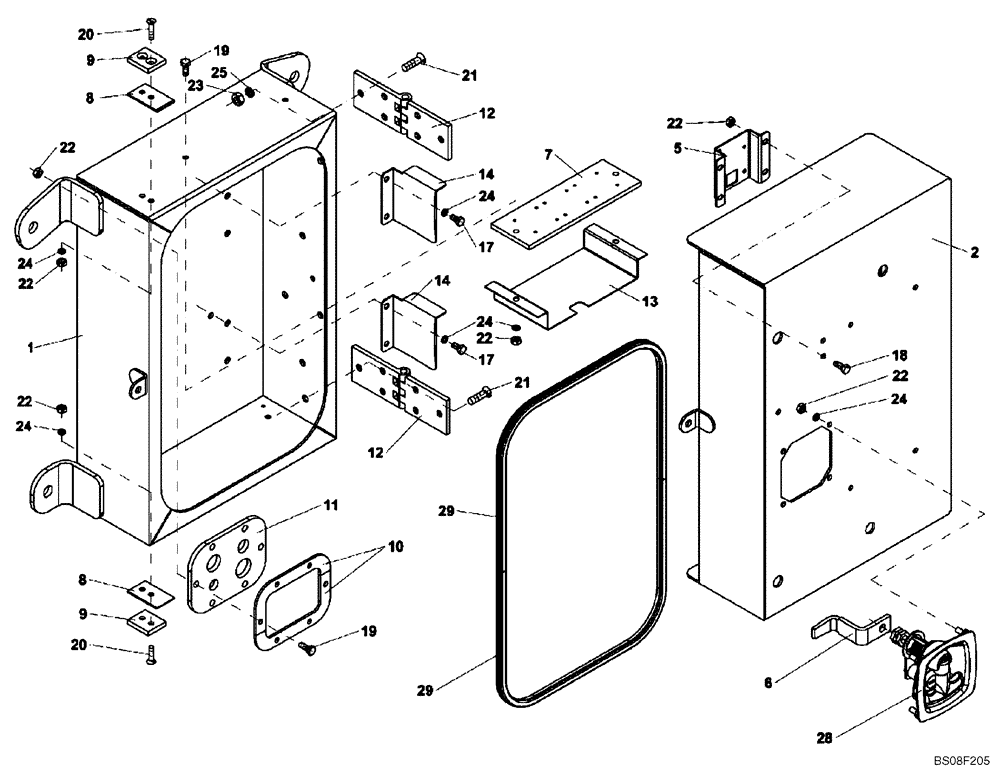

Схема запчастей Case SV212 - (55.640.08) - BOX, ELECTRICAL DISTRIBUTION (ACE) (55) - ELECTRICAL SYSTEMS
19
12
13
22
10
22
25
9
29
24
5
22
21
20
24
24
19
8
17
12
24
20
8
14
23
7
11
21
17
28
18
1
14
9
22
29
22
24
2
6
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BOX, ELECTRICAL DISTRIBUTION (ND134851) (GROUP 430-2-2) (ACE)

1шт.

1

ND134862

BOX

1шт.

2

ND134863

COVER PLATE

1шт.

5

ND134387

BRACKET

Replacces ND134066 Bracket

1шт.

6

ND134180

LATCH

1шт.

7

ND134184

SUPPORT

1шт.

8

ND134185

ADJUSTING PLATE

2шт.

9

ND134186

STOP

2шт.

10

ND134187

CLAMP

2шт.

11

ND134060

PROTECTOR

1шт.

12

ND134905

HINGE

2шт.

13

ND134389

COVER PLATE

1шт.

14

ND134188

BRACKET

2шт.

17

ND021287

BOLT,M8 x 16

4шт.

18

ND021288

BOLT

2шт.

19

ND021289

BOLT

8шт.

20

ND024383

SCREW,99mm

4шт.

21

ND024390

SCREW,99mm

12шт.

22

ND021847

NUT

18шт.

23

ND021848

NUT

12шт.

24

ND118926

WASHER

22шт.

25

ND035940

SPRING WASHER

12шт.

28

ND132727

LOCKING HANDLE

1шт.

29

ND076085

TAPE

Replaces ND134912 Weatherstrip

1шт.
