(10.206.01) - BELT AND FILTERS, ENGINE (GROUP 106) (ND133165)

Запчасти Case SV212 (10.206.01) - BELT AND FILTERS, ENGINE (GROUP 106) (ND133165) (10) - ENGINE

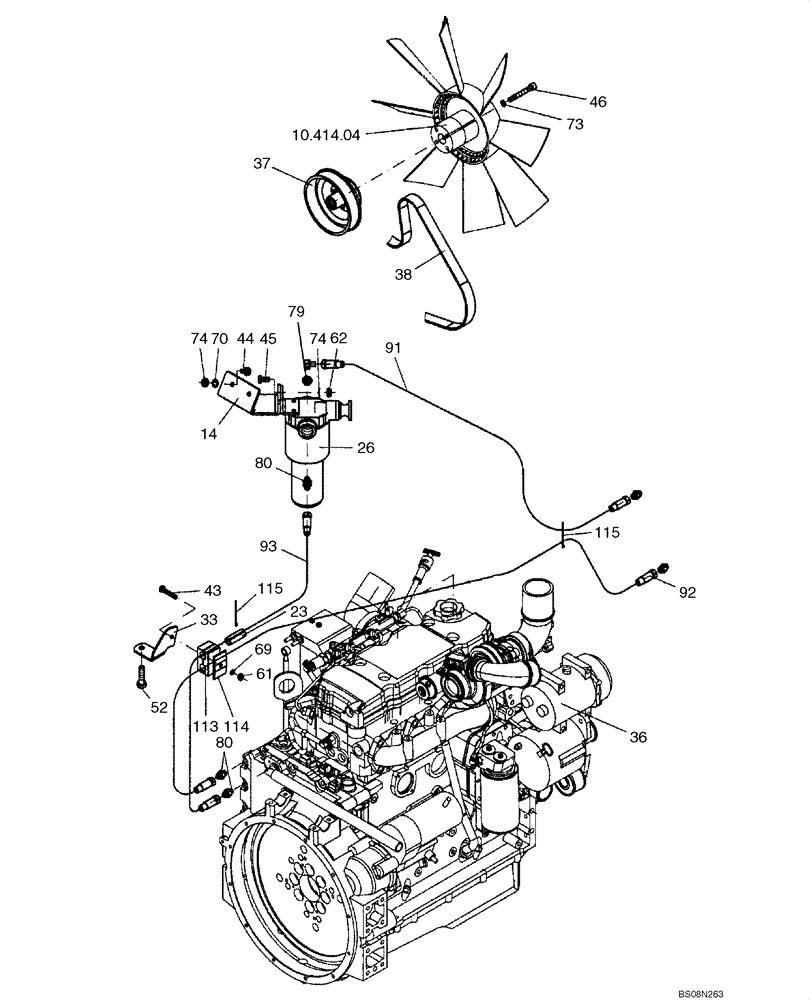

Схема запчастей Case SV212 - (10.206.01) - BELT AND FILTERS, ENGINE (GROUP 106) (ND133165) (10) - ENGINE
43
36
74
26
73
92
74
61
44
23
69
80
52
91
45
93
113
33
37
115
79
70
80
46
14
10.414.04
38
115
114
62
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BELT AND FILTERS, ENGINE (ND133165) (GROUP 106)

1шт.

14

ND134882

HOLDER

If Used

1шт.

26

NSS

NOT SOLD SEPARAT

FILTER ASSY, FUEL; See your nearest Cummins Engine Dealer For Service Of Engine Componnents

1шт.

26-1

ND131085

FUEL FILTER

Element Not Illustrated

1шт.

33

ND133655

BRACKET, SUPPORTING

Replaces ND133178 Bracket

1шт.

36

NSS

NOT SOLD SEPARAT

ENGINE, CUMMINS; See Your Nearest Cummins Engine Dealer for Service of Engine Components

1шт.

36-1

ND131084

FUEL FILTER

Element Not Illustrated

1шт.

36-2

ND116140

ENGINE OIL FILTER

Not Illustrated

2шт.

37

ND135116

GROOVED PULLEY

Replaces ND133153 Pulley

1шт.

38

ND135169

BELT

Replaces ND133154 Belt

1шт.

43

ND021187

BOLT

2шт.

44

ND021301

BOLT

2шт.

45

ND021195

BOLT

12шт.

46

ND110938

BOLT

Replaces ND132904 Bolt

4шт.

52

ND021313

BOLT

1шт.

61

ND034087

NUT

2шт.

62

ND034088

NUT

2шт.

69

ND035940

SPRING WASHER

6шт.

70

ND035941

WASHER

Qty Was 16

12-16шт.

73

ND029266

WASHER

If Used

4шт.

74

ND035826

WASHER

4шт.

79

ND062457

BOLT

Includes Bolt, Banjo Fitting, and Sealing Washer

2шт.

80

ND105608

PIPE FITTING

4шт.

91

ND133084

HOSE

1шт.

92

ND133141

HOSE

1шт.

93

ND133233

HOSE ASSY.

1шт.

113

ND062019

CLAMP

2шт.

114

ND064807

CLAMP

2шт.

115

ND078445

SECURING STRAP

7шт.
