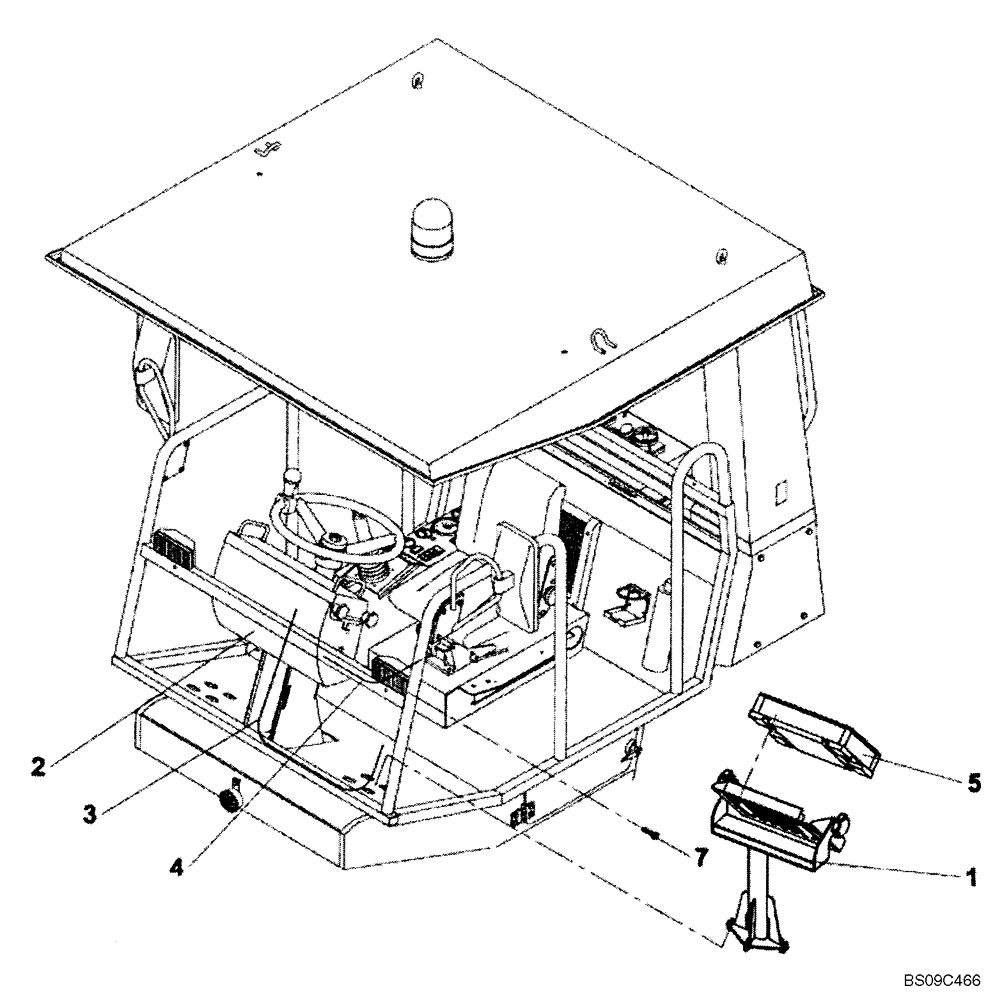

Запчасти Case SV212 (55.640.02) - GPS INSTAL (ACE) (55) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

MOUNTING, GPS (ACE) (ND142502)

1шт.

1

ND142364

BRACKET

Assy

1шт.

2

ND144887

SUPPORT

1шт.

3

ND144905

HARNESS

Replaces ND142381 Harness

1шт.

4

ND144904

HARNESS

1шт.

5

ND140194

DISPLAY

1шт.

7

ND024955

SELF-TAP SCREW

2шт.
