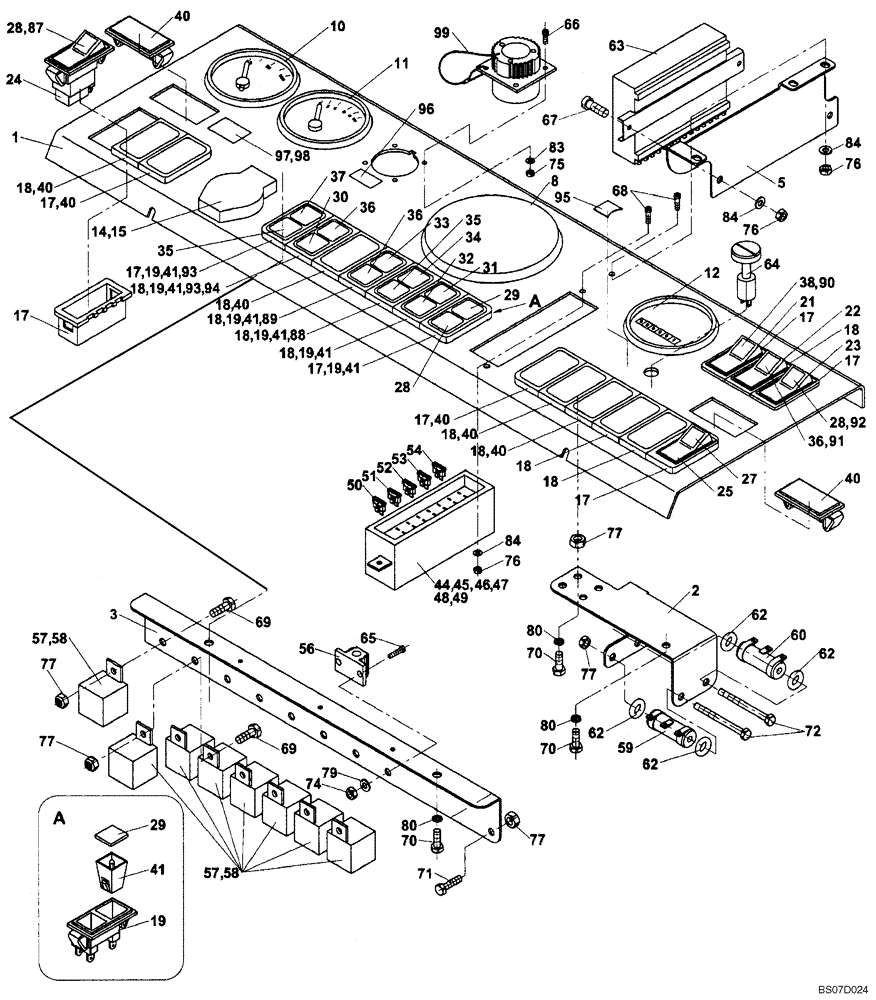

Запчасти Case SV212 (55.418.01[01]) - INSTRUMENT PANEL - BSN DDD003017 (55) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

DASHBOARD (ND131737) (GROUP 408-1)

1шт.

1

ND122424

PLATE

1шт.

2

ND110362

BRACKET

1шт.

3

ND122422

BRACKET

1шт.

5

ND122423

PLATE

Steel

1шт.

8

ND093279

HOLE PLUG BUTTON

1шт.

10

ND104425

GAUGE

Hyd Fluid Temp

1шт.

11

ND098758

FUEL GAUGE

1шт.

12

ND136541

HOURMETER

24V; Replaces ND098758 Hourmeter

1шт.

14

ND064513

IGNITION SWITCH

1шт.

15

ND064514

COVER

1шт.

16

73171248

WRENCH

KEY, LOCK Ignition, (Not Shown)

1шт.

17

ND065309

BEZEL

Terminal Piece

8шт.

18

ND065310

TERMINAL

Intermediate Piece

11шт.

19

ND065398

INDICATOR LIGHT

6шт.

21

ND065382

SWITCH

Travel Speed

1шт.

22

ND101989

SWITCH

ACI ECO

1шт.

23

ND065432

SWITCH

Windshield Washer

1шт.

24

ND065396

SWITCH

Emergency Brake

1шт.

25

ND065315

SWITCH

Horn Control Switch

1шт.

27

ND065353

LENS

Horn

1шт.

28

ND065354

LENS

Rating Plate

3шт.

29

ND065346

LENS

Rating Plate

1шт.

30

ND065355

TYPE PLATE

Rating Plate

1шт.

31

ND065349

LENS

Rating Plate

1шт.

32

ND065423

DECAL

1шт.

33

ND065390

LENS

Rating Plate

1шт.

34

ND065359

LENS

Rating Plate

1шт.

35

ND065403

LENS

Rating Plate

2шт.

36

ND065413

LENS

Rating Plate

3шт.

37

ND065435

TYPE PLATE

Rating Plate

1шт.

38

ND117687

TYPE PLATE

Rating Plate

1шт.

40

ND065391

COVER

8шт.

41

ND065422

SWITCH

Headlight

11шт.

44

ND090099

FUSE BOX

; Includes ND130664 Cover

1шт.

44

ND130664

COVER

FUSE BOX

1шт.

45

ND090098

ELEC CONNECTOR

6шт.

46

ND090097

BASE

1шт.

47

ND090096

BASE

1шт.

48

ND090095

BASE

1шт.

49

ND090094

BASE

1шт.

50

ND065920

FUSE,5A

1шт.

51

ND065918

FUSE,7.5A

2шт.

52

ND065922

FUSE,10A

1шт.

53

ND065919

FUSE,15A

1шт.

54

ND065923

FUSE,20A

2шт.

56

ND066649

RESISTOR

1шт.

57

ND065142

RELAY

8шт.

58

ND065143

HOLDER

8шт.

59

ND066654

RESISTOR

1шт.

60

ND066655

RESISTOR

1шт.

62

ND079697

RING

4шт.

63

ND122019

MODULE

, Serial Range: -NENTD3346

1шт.

63

47675172

MODULE

, Start Serial: NENTD3347

1шт.

64

ND110561

POTENTIOMETER

1шт.

65

ND024097

BOLT

2шт.

66

ND024102

BOLT

2шт.

67

ND024109

BOLT

4шт.

68

ND024110

BOLT

3шт.

69

ND093424

BOLT

7шт.

70

ND021285

BOLT

6шт.

71

47837256

BOLT

1шт.

72

ND021172

BOLT

2шт.

74

ND026411

NUT

2шт.

75

ND107946

NUT

4шт.

76

ND107947

NUT

5шт.

77

ND107948

LOCK NUT

12шт.

79

ND029324

WASHER

2шт.

80

ND029308

WASHER

4шт.

83

ND029245

WASHER

4шт.

84

ND029246

WASHER

5шт.

87

ND081546

TAG

1шт.

88

ND081796

DECAL

1шт.

89

ND081821

DECAL

1шт.

90

ND114989

SYMBOLS

SYMBOL

1шт.

91

ND114988

SYMBOLS

SYMBOL

1шт.

92

ND114990

SYMBOLS

SYMBOL

1шт.

93

ND114983

SYMBOLS

SYMBOL

3шт.

94

ND131072

DECAL

1шт.

95

ND114987

SYMBOLS

SYMBOL

1шт.

96

ND114986

SYMBOLS

SYMBOL

1шт.

97

ND114987

SYMBOLS

SYMBOL

1шт.

98

ND129984

DECAL

1шт.

99

ND065980

WIRE CONNECTOR

1шт.
