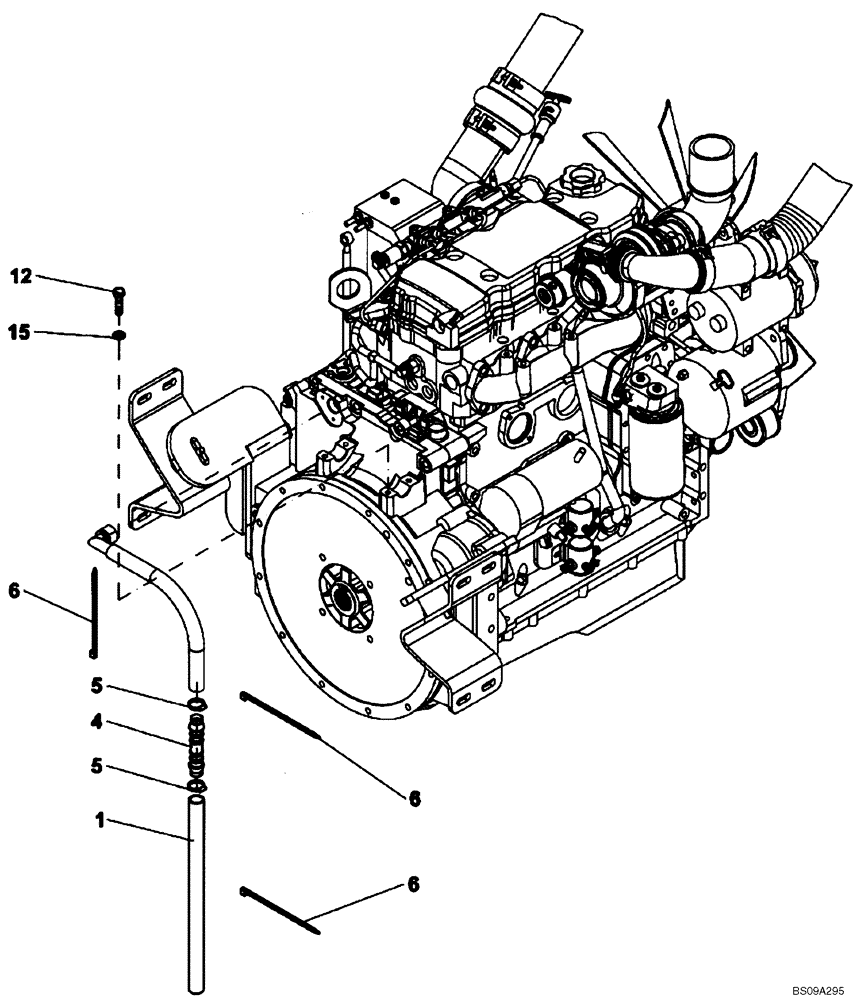

Запчасти Case SV212 (10.102.01) - VENTILATION, ENGINE (GROUP 107) (ND133265) (10) - ENGINE

REF

INSTRUCTION

VENTILATION, ENGINE (ND133265) (GROUP 107)

1шт.

1

ND136824

HOSE

Replaces ND133289 Hose

1шт.

4

ND126650

PIPE FITTING

Connecting

1шт.

5

ND107319

CLAMP

2шт.

6

ND078445

SECURING STRAP

Not Illustrated

3шт.

12

ND024257

BOLT

Not Illustrated

1шт.

15

ND035941

WASHER

Not Illustrated

1шт.
