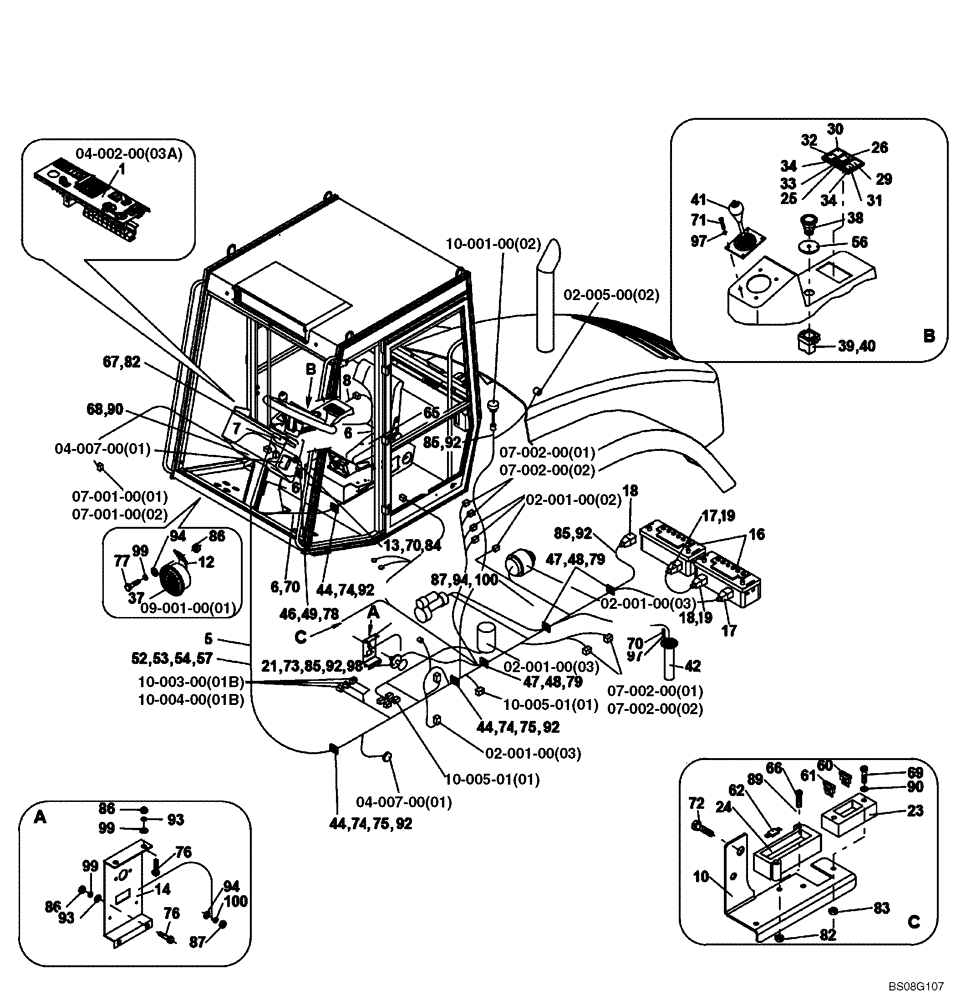

Запчасти Case SV212 (55.100.01[02]) - WIRING INSTALLATION - DDD003016 (55) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

WIRING INSTALLATION (ND142146) (GROUP 408)

1шт.

1

NSS

NOT SOLD SEPARAT

DASHBOARD; See Figure 04-002-00 (03A) For Service Breakdown

1шт.

5

ND147297

WIRE HARNESS

Replaces Harness ND143316

1шт.

6

ND139588

HARNESS

1шт.

7

84372442

WIRE HARNESS

1шт.

8

84372440

WIRE HARNESS

1шт.

10

ND139609

HOLDER

1шт.

12

ND054607

SUPPORT

1шт.

13

ND115409

PLUG

1шт.

14

ND031350

PLATE

, Serial Range: -DNTC3471

1шт.

14

47592081

BRACKET

, Start Serial: NDNTC3472

1шт.

16

B49850MFW

WET BATTERY

For US

2шт.

16

CBCM49MFW

WET BATTERY

For Canada

2шт.

17

ND111732

TERMINAL CONNECTOR

Positive

2шт.

18

ND111733

TERMINAL CONNECTOR

Negative

2шт.

19

ND111783

COVER

3шт.

21

ND064972

SWITCH

Master Disconnect

1шт.

23

ND138580

FUSE BOX

1шт.

24

ND129300

CLIP

Fuse

1шт.

25

ND064516

SWITCH

Work Speed Range

1шт.

26

ND064520

COVER PLATE

1шт.

29

ND065382

SWITCH

Travel Speed

1шт.

30

ND065396

SWITCH

Emergency Brake

1шт.

31

ND065401

LENS

1шт.

32

ND065349

LENS

1шт.

33

ND065310

TERMINAL

1шт.

34

ND065309

BEZEL

2шт.

37

ND064679

HORN

1шт.

38

ND121085

KNOB

Emergency Stop

1шт.

39

ND124174

CONTACT PLATE

1шт.

40

ND121091

FLANGE

Connecting

1шт.

41

ND119476

MANIPULATOR

1шт.

41

84593572

CONTROL LEVER

1шт.

41

ND118115

SWITCH

Drum Vibration Control

1шт.

41

ND141149

BOOT

RUBBER, Joystick

1шт.

41

47397505

KNOB

1шт.

42

ND069432

FLOAT

, Serial Range: -NENTC3675

1шт.

42

47838472

SENDER UNIT

, Start Serial: NENTC3676

1шт.

44

ND062001

CLAMP

7шт.

46

ND064849

SLEEVE

1шт.

47

ND064823

CABLE CLIP

5шт.

48

ND064822

COVER

5шт.

49

ND064807

CLAMP

1шт.

52

ND078445

SECURING STRAP

Tie Strap

35шт.

53

ND078447

CABLE TIE

CABLE STRAP Tie Strap

10шт.

54

ND066061

TAPE

Insulating

1шт.

56

ND081766

DECAL

Symbol

1шт.

57

ND132522

DECAL

Symbol

1шт.

60

ND065922

FUSE,10A

1шт.

61

ND065926

FUSE,30A

1шт.

62

ND129301

FUSE,125A

1шт.

65

ND024965

SELF-TAP SCREW

4шт.

66

ND024102

BOLT

2шт.

67

ND024101

BOLT

4шт.

68

ND023783

BOLT

4шт.

69

ND024110

BOLT

2шт.

70

ND024122

BOLT

11шт.

71

ND024124

BOLT

4шт.

72

ND021288

BOLT

1шт.

73

ND021289

BOLT

2шт.

74

ND024234

BOLT

11шт.

75

ND024237

BOLT

3шт.

76

ND021294

BOLT

4шт.

77

ND021295

BOLT

1шт.

78

ND021184

BOLT

1шт.

79

ND021186

BOLT

5шт.

82

ND107946

NUT

6шт.

83

ND107947

NUT

2шт.

84

ND107948

LOCK NUT

6шт.

85

ND021847

NUT

6шт.

86

ND021848

NUT

5шт.

87

ND021849

NUT

2шт.

89

ND029245

WASHER

2шт.

90

ND029246

WASHER

6шт.

92

ND029248

WASHER

20шт.

93

ND029249

WASHER

4шт.

94

ND029250

WASHER

3шт.

97

ND029308

WASHER

Spring

9шт.

98

ND029309

SPRING WASHER

Spring

2шт.

99

ND029310

WASHER

Spring

5шт.

100

ND029311

WASHER

Spring

2шт.
