Запчасти Case SV212 (55.100.01[01]) - WIRING INSTALLATION - BSN DDD003017 (55) - ELECTRICAL SYSTEMS

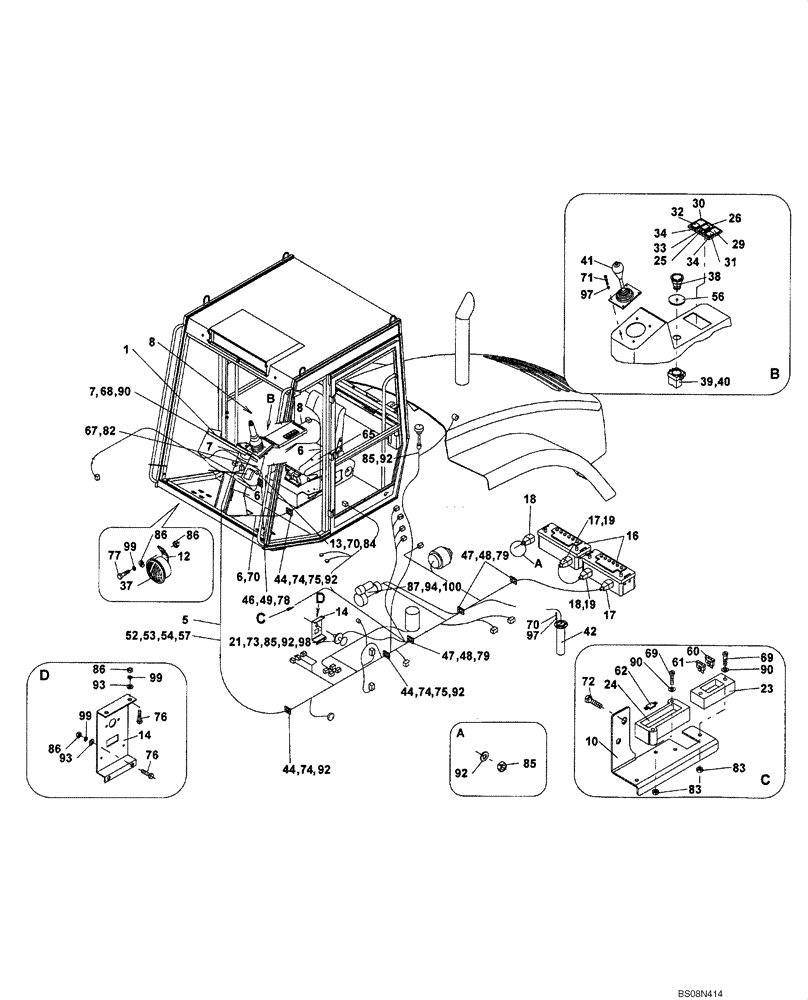

Схема запчастей Case SV212 - (55.100.01[01]) - WIRING INSTALLATION - BSN DDD003017 (55) - ELECTRICAL SYSTEMS
76
44
6
97
7
74
52
74
75
26
14
29
61
99
76
92
83
78
92
6
8
79
33
69
92
39
8
69
13
83
38
12
37
92
90
85
94
82
14
16
86
68
90
24
34
6
74
30
44
21
48
99
99
60
97
72
85
32
87
77
98
23
31
54
48
70
19
46
10
92
25
85
93
1
41
19
70
7
44
92
57
71
18
53
73
67
47
93
18
17
79
40
34
84
86
5
90
49
86
47
70
56
75
42
62
65
86
17
100

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

WIRING INSTALLATION (ND133639) (GROUP 408)

1шт.

1

ND131737

DASHBOARD

1шт.

5

ND133640

WIRE HARNESS

Until P.I.N. DDD001142

1шт.

5

ND136809

HARNESS

WIRE P.I.N. DDD001143 And After

1шт.

5

ND140908

HARNESS

WIRE P.I.N. DDD001184 To DDD001189 And DDD001193 And After

1шт.

6

ND122410

WIRE HARNESS

1шт.

7

ND132438

WIRE HARNESS

Until P.I.N. DDD001184

1шт.

7

ND140910

HARNESS

WIRE P.I.N. DDD001185 To DDD001189 And DDD001193 And After

1шт.

8

ND122425

WIRE HARNESS

1шт.

10

ND133649

BRACKET, SUPPORTING

Until P.I.N. DDD001184

1шт.

10

ND139609

HOLDER

P.I.N. DDD001185 To DDD001189 And DDD001193 And After

1шт.

12

ND054607

SUPPORT

1шт.

13

ND115409

PLUG

1шт.

14

ND031350

PLATE

, Serial Range: -NDNTC3471

1шт.

14

47592081

BRACKET

, Start Serial: NDNTC3472

1шт.

16

B49850MFW

WET BATTERY

For US Only

2шт.

16

CBCM49MFW

WET BATTERY

For Canada Only

2шт.

17

ND111732

TERMINAL CONNECTOR

Positive

2шт.

18

ND111733

TERMINAL CONNECTOR

Negative

2шт.

19

ND111783

COVER

Qty Was 2

2-3шт.

21

ND064972

SWITCH

Master Disconnect

1шт.

23

ND125265

FUSE BOX

Until P.I.N. DDD001184

1шт.

23

ND138580

FUSE BOX

P.I.N. DDD001185 To DDD001189 And DDD001193 And After

1шт.

24

ND065914

FUSE,24V, 10W

Until P.I.N. DDD001184

1шт.

24

ND129300

CLIP

P.I.N. DDD001185 To DDD001189 And DDD001193 And After

1шт.

25

ND064516

SWITCH

Work Speed Range

1шт.

26

ND064520

COVER PLATE

1шт.

29

ND065382

SWITCH

Travel Speed

1шт.

30

ND065396

SWITCH

Emergency Brake

1шт.

31

ND065401

LENS

1шт.

32

ND065349

LENS

1шт.

33

ND065310

TERMINAL

1шт.

34

ND065309

BEZEL

2шт.

37

ND064679

HORN

1шт.

38

ND121085

KNOB

EMERGENCY STOP; Replaces ND120061 Knob, Emergency Stop

1шт.

39

ND124174

CONTACT PLATE

1шт.

40

ND121091

FLANGE

CONNECTING; Replaces ND120063 Connecting Flange

1шт.

41

ND119476

MANIPULATOR

1шт.

41

84593572

CONTROL LEVER

1шт.

41

ND118115

SWITCH

Drum Vibration Control

1шт.

41

ND141149

BOOT

Rubber, Joystick

1шт.

41

47397505

KNOB

1шт.

42

ND069432

FLOAT

1шт.

44

ND062001

CLAMP

7шт.

46

ND064849

SLEEVE

1шт.

47

ND064823

CABLE CLIP

5шт.

48

ND064822

COVER

5шт.

49

ND064807

CLAMP

1шт.

52

ND078445

SECURING STRAP

35шт.

53

ND078447

CABLE TIE

CABLE STRAP

10шт.

54

ND066061

TAPE

1шт.

56

ND081766

DECAL

1шт.

57

ND132522

DECAL

1шт.

60

ND065922

FUSE,10A

1шт.

61

ND065926

FUSE,30A

1шт.

62

ND129301

FUSE,125A

1шт.

65

ND024965

SELF-TAP SCREW

4шт.

66

ND024102

BOLT

2шт.

67

ND024101

BOLT

4шт.

68

ND023783

BOLT

4шт.

69

ND024110

BOLT

Qty Was 4

2-4шт.

70

ND024121

BOLT

11шт.

71

ND024124

BOLT

4шт.

72

ND021289

BOLT

Replaces ND021288 Bolt

1шт.

73

ND021289

BOLT

2шт.

74

ND024234

BOLT

11шт.

75

ND024237

BOLT

3шт.

76

ND021294

BOLT

4шт.

77

ND021295

BOLT

1шт.

78

ND021184

BOLT

1шт.

79

ND021186

BOLT

5шт.

82

ND107946

NUT

Qty Was 4

4-6шт.

83

ND107947

NUT

Qty Was 4

2-4шт.

84

ND107948

LOCK NUT

6шт.

85

ND021847

NUT

6шт.

86

ND034087

NUT

5шт.

87

ND034088

NUT

2шт.

89

ND029245

WASHER

2шт.

90

ND029246

WASHER

Qty Was 8

2-8шт.

92

ND029248

WASHER

20шт.

93

ND029249

WASHER

4шт.

94

ND029250

WASHER

3шт.

97

ND029308

WASHER

9шт.

98

ND029309

SPRING WASHER

2шт.

99

ND029310

WASHER

5шт.

100

ND029311

WASHER

2шт.

Выбрано товаров: 86
