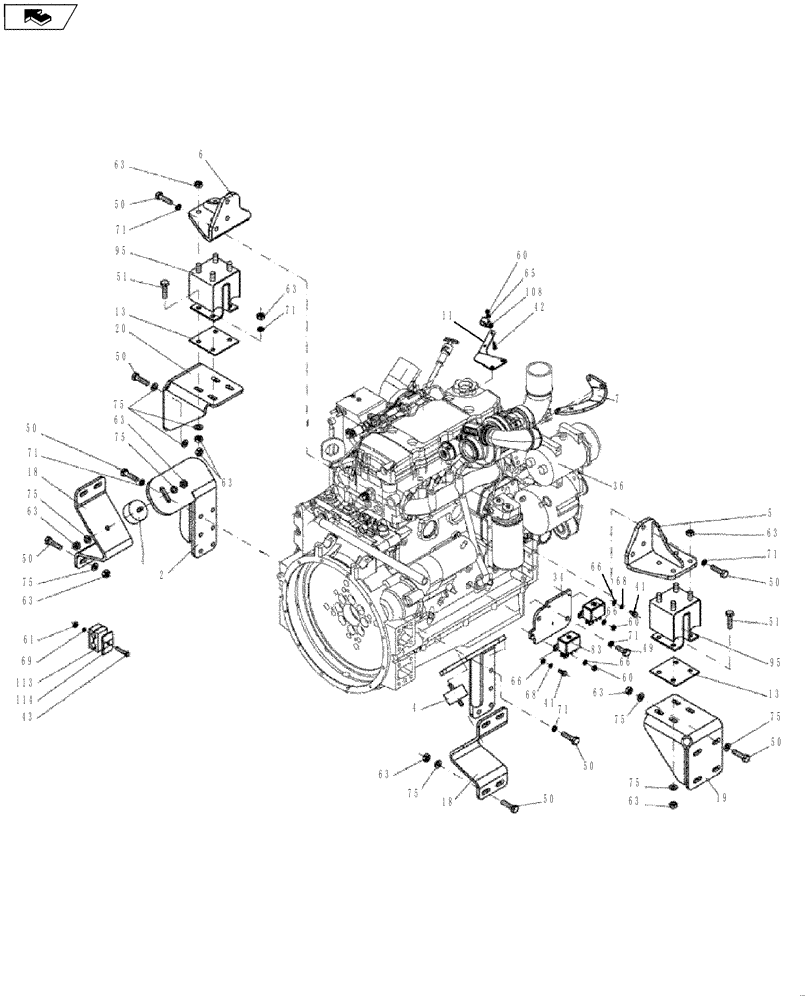

Запчасти Case SV212 (10.012.01) - ENGINE INSTALLATION (GROUP 106) (ND133165) (10) - ENGINE

REF

INSTRUCTION

MOUNTING, ENGINE (ND133165) (GROUP 106)

1шт.

1

ND133173

BRACKET

LH

1шт.

2

ND133174

BRACKET

RH

1шт.

4

ND107210

SHOCK ABSORBER

2шт.

5

ND133175

BRACKET

LH

1шт.

6

ND133176

BRACKET

RH

1шт.

7

ND136781

HOLDER

Replaces ND135012 Holder; If Used

1шт.

11

ND133183

BRACKET, SUPPORTING

1шт.

13

ND049398

PLATE

4шт.

18

ND133169

BRACKET, SUPPORTING

FRONT

2шт.

19

ND126694

BRACKET

1шт.

20

ND126693

BRACKET

1шт.

34

ND147288

BRACKET

1шт.

36

NSS

NOT SOLD SEPARAT

ENGINE CUMMINS; See Your Nearest Cummins Engine Dealer for Service of Engine Components

1шт.

41

ND021287

BOLT,M8 x 16

4шт.

42

ND021289

BOLT

2шт.

43

ND021187

BOLT

2шт.

49

ND021309

BOLT,M12 x 25

2шт.

50

ND021311

BOLT

40шт.

51

ND021312

BOLT

7шт.

60

ND027300

NUT

6шт.

61

ND034087

NUT

2шт.

63

ND034086

NUT

36шт.

65

ND118653

WASHER

2шт.

66

ND029248

WASHER

4шт.

68

ND118926

WASHER

4шт.

69

ND035940

SPRING WASHER

6шт.

71

ND035942

WASHER

22шт.

75

ND122456

WASHER

40шт.

83

ND145328

RELAY,24V

Starter

2шт.

95

ND064129

RUBBER MOUNTING

2шт.

108

ND063144

CLAMP

2шт.

113

ND062019

CLAMP

2шт.

114

ND064807

CLAMP

2шт.
