Запчасти Case SV212 (44.520.01) - WHEELS, REAR (GROUP 46) (ND103367) (44) - WHEELS

REF

INSTRUCTION

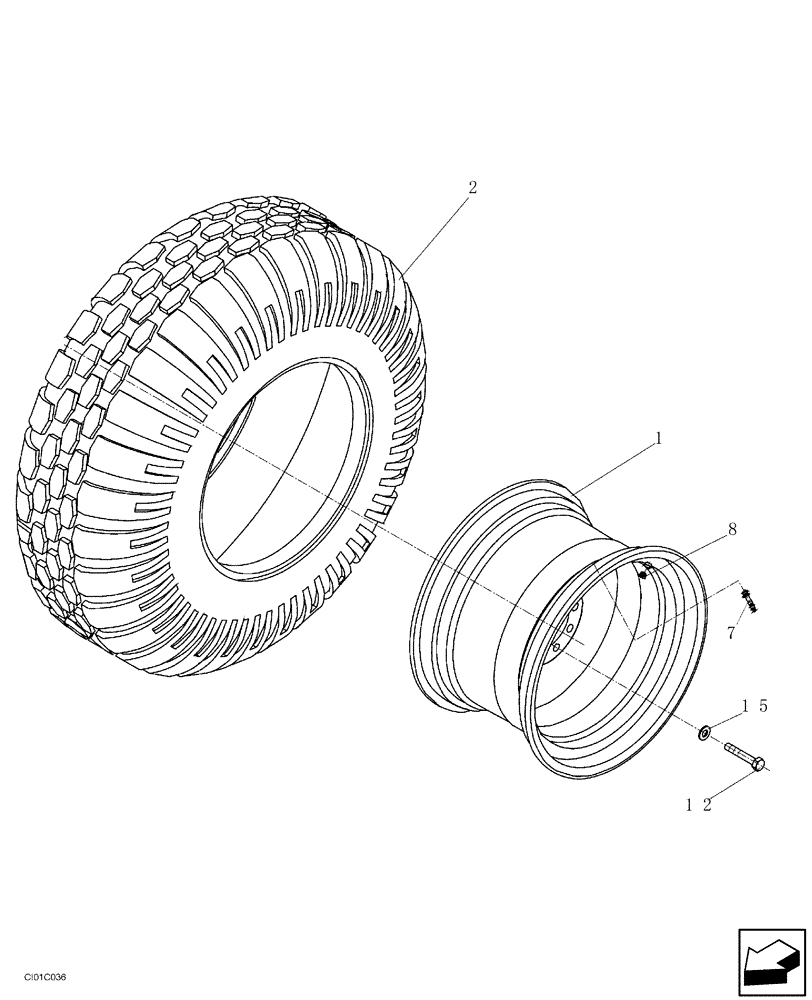

WHEELS, REAR (ND103367) (GROUP 46)

1шт.

1

ND103129

RIM

2шт.

2

ND080009

TYRE/TIRE

23.1-26/15 PR TL

2шт.

7

ND063223

VALVE

2шт.

8

ND062420

PLUG

2шт.

12

ND021333

BOLT

M16 x 50

40шт.

15

ND035943

WASHER

ID 16

40шт.
