(55.000.04) - QUICK REFERENCE - FUSES (ACE)

Запчасти Case SV212 (55.000.04) - QUICK REFERENCE - FUSES (ACE) (00) - GENERAL & PICTORIAL INDEX

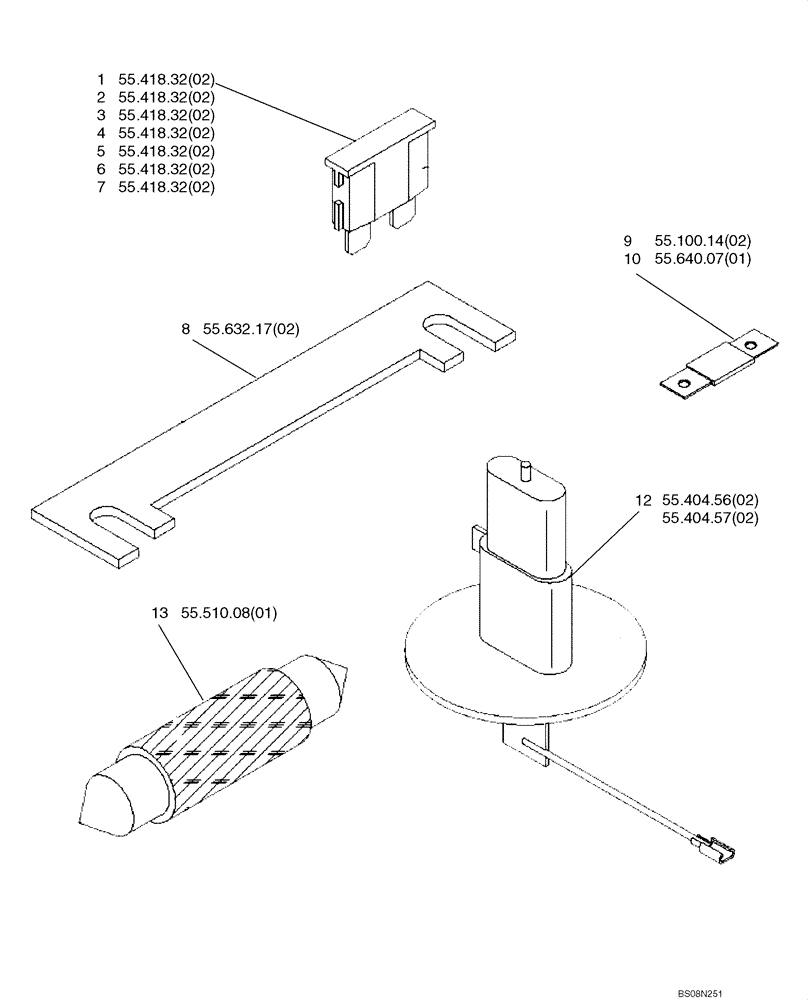

Схема запчастей Case SV212 - (55.000.04) - QUICK REFERENCE - FUSES (ACE) (00) - GENERAL & PICTORIAL INDEX
2
1
55.418.32(02)
3
55.418.32(02)
4
6
55.404.57(02)
55.632.17(02)
55.418.32(02)
55.418.32(02)
55.640.07(01)
55.418.32(02)
55.418.32(02)
5
55.510.08(01)
55.418.32(02)
12
10
55.100.14(02)
13
55.404.56(02)
7
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BULBS AND FUSES (ACE) (ND134897)

1шт.

1

ND127722

FUSE,1A

1A; See Figure 55.418.32 (02)

1шт.

2

ND065920

FUSE,5A

5A; See Figure 55.418.32 (02)

1шт.

3

ND065918

FUSE,7.5A

7, 5A; See Figure 55.418.32 (02)

1шт.

4

ND065922

FUSE,10A

10A; See Figure 55.100.14 (02)

1шт.

5

ND065919

FUSE,15A

15A; See Figure 55.418.32 (02)

1шт.

6

ND065923

FUSE,20A

20A; See Figure 55.418.32 (02)

1шт.

7

ND065926

FUSE,30A

30A; See Figure 55.100.14 (02)

1шт.

8

ND065913

FUSE,50A

Link; See Figure 55.632.17 (02)

1шт.

9

ND129301

FUSE,125A

125A; See Figure 55.100.14 (02)

1шт.

10

ND129298

FUSE

30A; See Figure 55.640.07

1шт.

12

ND066894

BULB,24V, 70W

24V 70W; See Figure 55.404.56 (02) And 55.404.57 (02)

1шт.

13

ND065107

BULB

See Figure 55.510.08

1шт.
