Запчасти Case SV212 (55.000.03) - QUICK REFERENCE - FUSES (GROUP 540) (ND031668) (00) - GENERAL & PICTORIAL INDEX

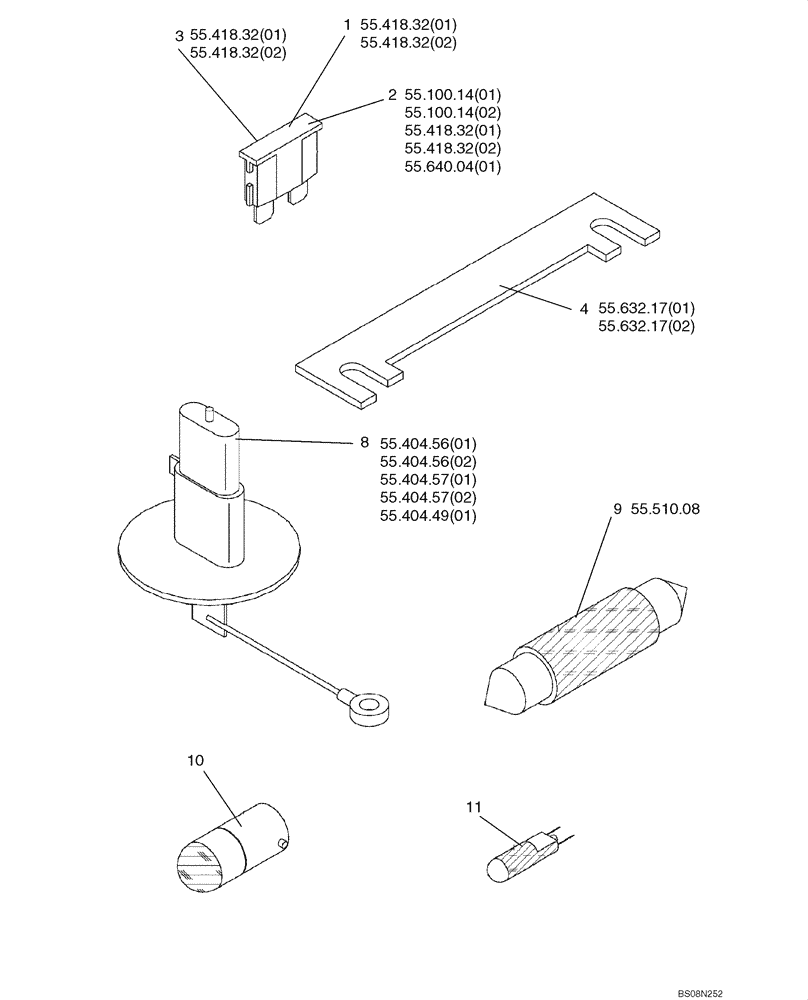

Схема запчастей Case SV212 - (55.000.03) - QUICK REFERENCE - FUSES (GROUP 540) (ND031668) (00) - GENERAL & PICTORIAL INDEX
55.100.14(01)
4
9
55.404.49(01)
55.510.08
55.404.57(02)
8
55.418.32(01)
3
55.404.56(01)
55.418.32(01)
55.404.56(02)
1
55.632.17(01)
55.418.32(02)
2
55.404.57(01)
55.418.32(01)
55.418.32(02)
55.418.32(01)
55.100.14(02)
55.640.04(01)
55.632.17(02)
11
10

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

QUICK REFERENCE - FUSES (ND031668) (GROUP 540)

1шт.

1

ND065918

FUSE,7.5A

7,5 Amp; See Figure(s) 55.418.32 (01) And 55.418.32 (02)

1шт.

2

ND065922

FUSE,10A

10A; See Figures(s) 55.100.14 (01), 55.100.14 (02), 55.418.32 (01), 55.418.32 (02), And 55.640.04 (01)

2шт.

3

ND065919

FUSE,15A

15 Amp; See Figures(s) 55.418.32 (01) And 55.418.32 (02)

1шт.

4

ND065913

FUSE,50A

50 Amp; See Figure(s) 55.632.17 (01) And 55.632.17 (02)

1шт.

5

ND065923

FUSE,20A

20 Amp; See Figure(s) 55.418.32 (01) And 55.418.32 (02)

2шт.

8

ND066894

BULB,24V, 70W

24V 70W H3; See Figure(s) 55.404.56 (01), 55.404.56 (02), 55.404.57 (01), 55.404.57 (02) And 55.404.49 (01)

1шт.

9

ND065107

BULB

See Figure 55.510.08

1шт.

10

ND098748

BULB

24V 3W (gauges)

2шт.

11

ND065414

BULB

24V 1,2W (Used in Switch)

3шт.

Выбрано товаров: 10
