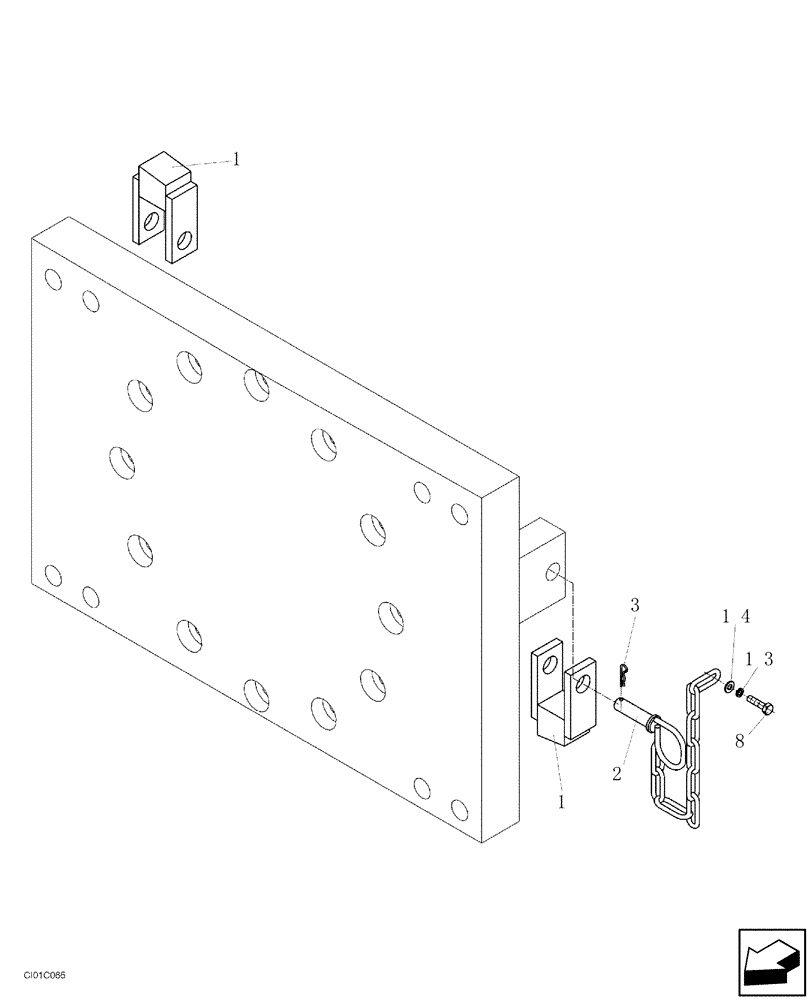

Запчасти Case SV212 (39.100.25) - LOCK, JOINT (39) - FRAMES AND BALLASTING

REF

INSTRUCTION

LOCK, JOINT (ND103133) (GROUP 68)

1шт.

1

ND030644

BRACKET

2шт.

2

ND032007

PIN

2шт.

3

ND119914

SPLIT PIN

2шт.

8

ND110229

BOLT

M5 x 16

2шт.

13

ND029308

WASHER

ID 5,1

2шт.

14

ND029247

WASHER

ID 5,3

2шт.
