(05.100.03[02]) - QUICK REFERENCE - FILTERS (ACE)

Запчасти Case SV212 (05.100.03[02]) - QUICK REFERENCE - FILTERS (ACE) (00) - GENERAL & PICTORIAL INDEX

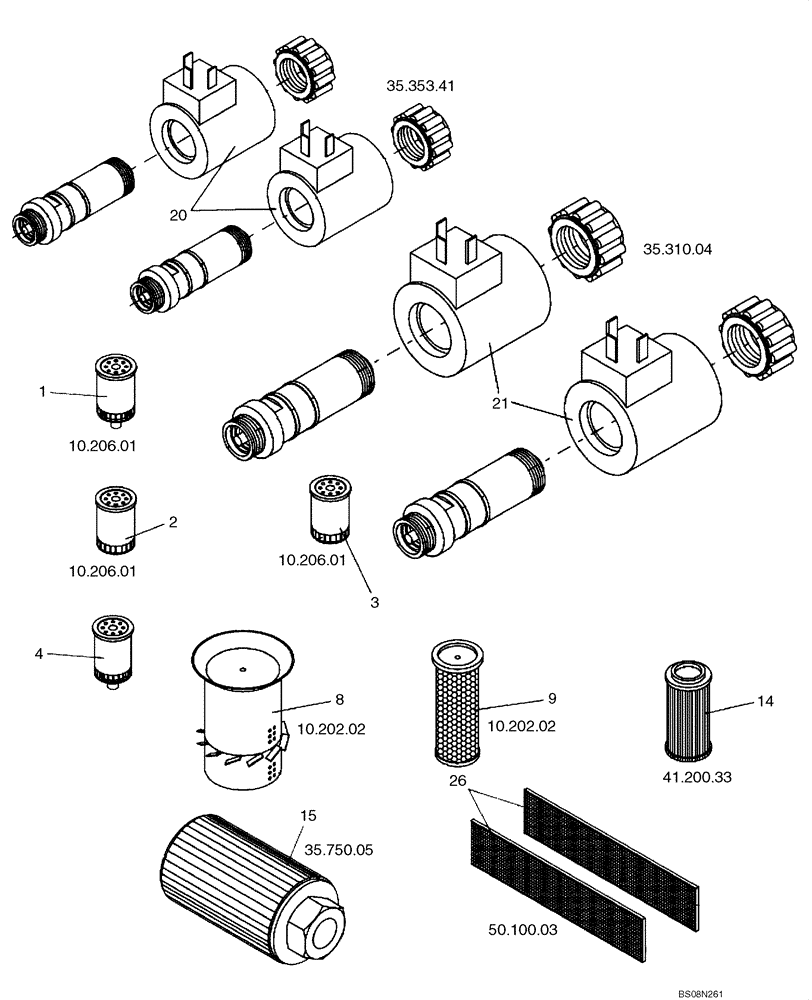

Схема запчастей Case SV212 - (05.100.03[02]) - QUICK REFERENCE - FILTERS (ACE) (00) - GENERAL & PICTORIAL INDEX
20
9
26
8
14
35.353.41
21
2
3
1
41.200.33
35.310.04
10.206.01
50.100.03
35.750.05
10.202.02
4
10.206.01
10.202.02
10.206.01
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

QUICK REFERENCE - FILTERS (ACE) (ND134898) (GROUP 547)

1шт.

1

ND131084

FUEL FILTER

See Figure 10.206.01

1шт.

2

ND131085

FUEL FILTER

See Figure 10.206.01

1шт.

3

ND116140

ENGINE OIL FILTER

See Figure 10.206.01

2шт.

4

ND133520

ELEMENT

See Figure 35.310.07

1шт.

8

ND133433

AIR FILTER

Outer; See Figure 10.202.02

1шт.

9

ND133434

AIR FILTER

Inner; See Figure 10.202.02

1шт.

14

ND126829

HYDRAULIC OIL FILTER

See Figure 41.200.33

1шт.

15

ND067790

FILTER STRAINER

See Figure 35.750.05

1шт.

20

ND067924

SOLENOID

See Figure 35.353.41

2шт.

21

ND067925

SOLENOID

See Figure 35.310.04

2шт.

26

ND137766

FILTER

See Figure 50.100.03

2шт.
