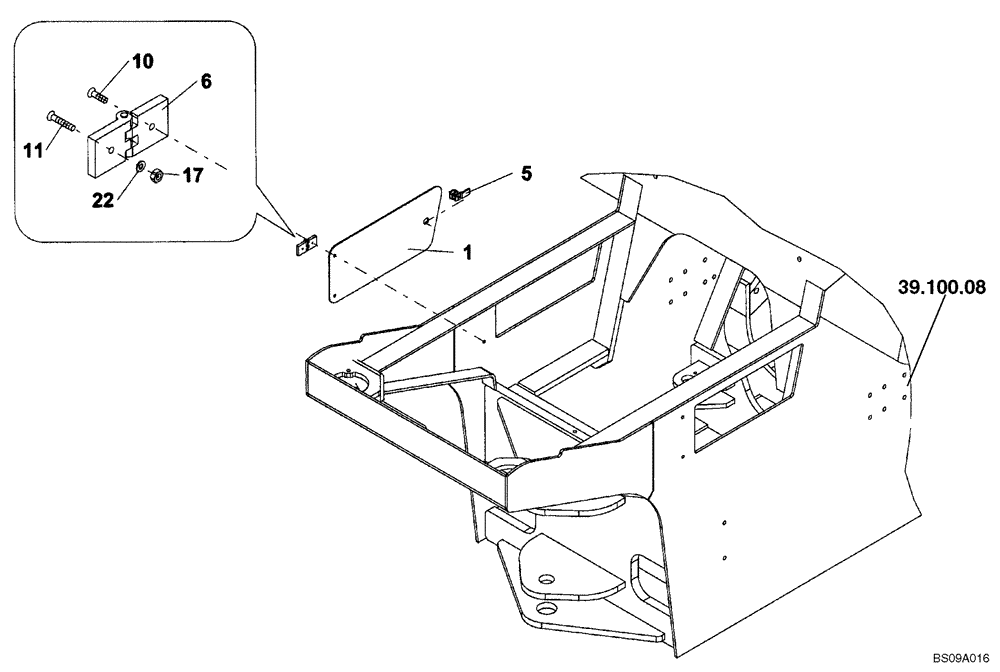

Запчасти Case SV212 (39.100.10) - DOOR, ACCESS RH (39) - FRAMES AND BALLASTING

1

ND126741

DOOR

Assy, RH, Serial Range: -NDNTC3445

1шт.

1

ND126740

DOOR

RH, Serial Range: -NDNTC3445

1шт.

1

ND128428

PIN

, Serial Range: -NDNTC3445

1шт.

1

ND093038

SPRING

Torsion, RH, Serial Range: -NDNTC3445

1шт.

1

ND029290

WASHER

, Serial Range: -NDNTC3445

2шт.

1

ND024371

SCREW,M5 x 10mm

, Serial Range: -NDNTC3445

2шт.

1

ND126735

BRACKET

Used on Inside of Door, Serial Range: -NDNTC3445

1шт.

1

ND021295

BOLT

Use with Bracket ND126735, Serial Range: -NDNTC3445

2шт.

1

ND021848

NUT

Use with Bracket ND126735, Serial Range: -NDNTC3445

2шт.

1

ND128418

ACCESS COVER

RH, Start Serial: NDNTC3446

1шт.

5

ND101396

LOCK

1шт.

5

ND101395

KEY

1шт.

6

ND124581

HINGE

2шт.

10

ND124565

BOLT

2шт.

11

ND124604

BOLT

2шт.

17

ND021847

NUT

2шт.

22

ND124703

WASHER

4шт.
