Запчасти Case SV212 (05.100.03[01]) - QUICK REFERENCE - FILTERS (00) - GENERAL & PICTORIAL INDEX

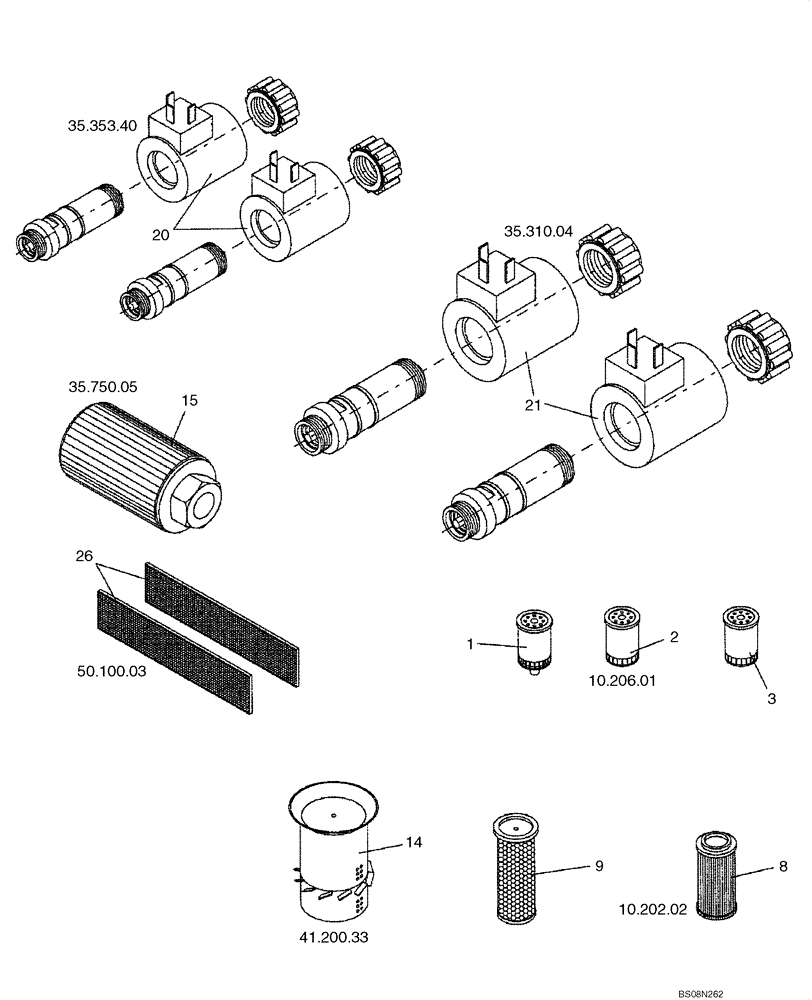

Схема запчастей Case SV212 - (05.100.03[01]) - QUICK REFERENCE - FILTERS (00) - GENERAL & PICTORIAL INDEX
20
21
26
3
15
14
1
35.310.04
35.353.40
10.206.01
10.202.02
41.200.33
50.100.03
35.750.05
9
2
8

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

QUICK REFERENCE - FILTERS (ND133266) (GROUP 545)

1шт.

1

ND131084

FUEL FILTER

Ref Figure 10.206.01

1шт.

2

ND131085

FUEL FILTER

Ref Figure 10.206.01

1шт.

3

ND116140

ENGINE OIL FILTER

Ref Figure 10.206.01

2шт.

8

ND133433

AIR FILTER

Air Intake; Outer Insert - Ref Figure 10.202.02

1шт.

9

ND133434

AIR FILTER

Air Intake; Inner Insert - Ref Figure 10.202.02

1шт.

14

ND126829

HYDRAULIC OIL FILTER

Hydraulic; Ref Figure 41.200.33

1шт.

15

ND067790

FILTER STRAINER

Hydraulic; Ref Figure 35.750.05

1шт.

20

ND067924

SOLENOID

Ref Figure 35.353.40

2шт.

21

ND067925

SOLENOID

Ref Figure 35.310.04

2шт.

26

ND075260

CAB FILTER

Air; Ref Figure 50.100.03

2шт.

Выбрано товаров: 11
