Запчасти Case SV212 (39.000.02) - FRAME COMPONENTS - SECTION PICTORIAL 2/2 (39) - FRAMES AND BALLASTING

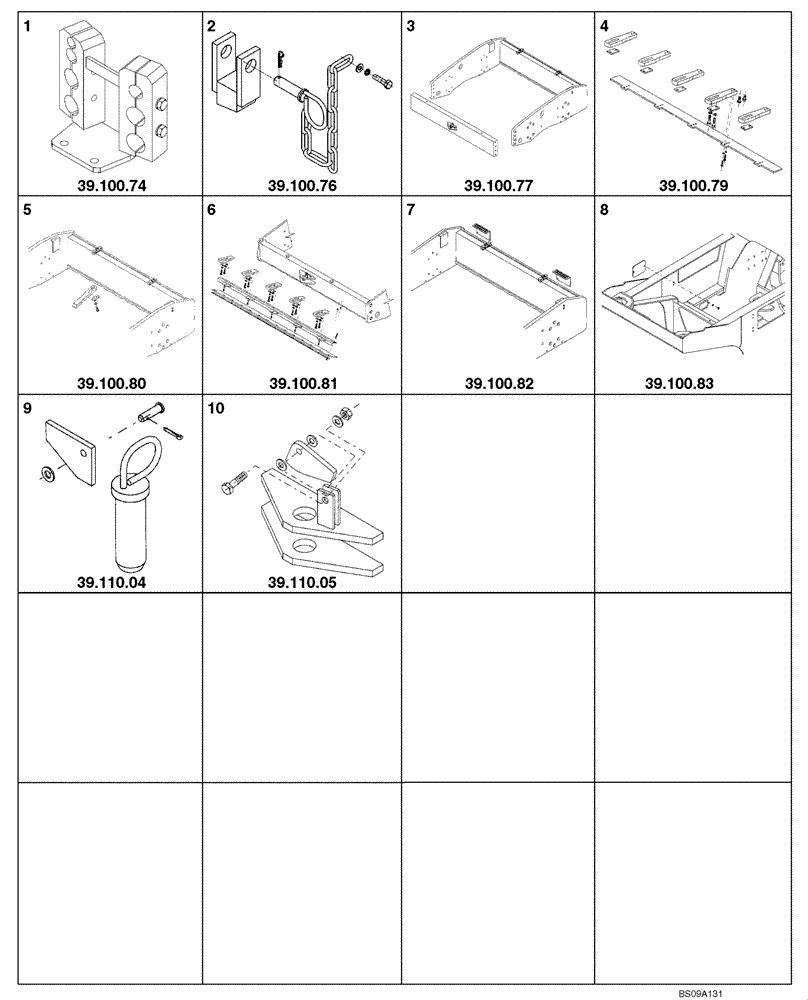

Схема запчастей Case SV212 - (39.000.02) - FRAME COMPONENTS - SECTION PICTORIAL 2/2 (39) - FRAMES AND BALLASTING
4
5
39.100.80
39.100.81
39.100.82
39.100.83
39.100.79
39.100.77
39.100.76
39.100.74
39.110.05
39.110.04
6
8
7
2
10
9
3
1

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

FRAME COMPONENTS - SECTION PICTORIAL

1шт.

1

REF

INSTRUCTION

Holder, Hose - For Service Breakdown See Figure(s) 39.100.74 And 39.100.5

1шт.

2

REF

INSTRUCTION

Lock, Joint - For Service Breakdown See Figure 39.100.76

1шт.

3

REF

INSTRUCTION

Frame, Drum - For Service Breakdown See Figure(s) 39.100.77 And 39.100.78

1шт.

4

REF

INSTRUCTION

Scraper, Smooth Drum - For Service Breakdown See Figure 39.100.79

1шт.

5

REF

INSTRUCTION

Scraper, Pad Foot Drum - For Service Breakdown See Figure 39.100.80

1шт.

6

REF

INSTRUCTION

Scraper - For Service Breakdown See Figure 39.100.81

1шт.

7

REF

INSTRUCTION

Step, Drum Frame - For Service Breakdown See Figure 39.100.82

1шт.

8

REF

INSTRUCTION

Cover, Access RH - For Service Breakdown See Figure 39.100.83

1шт.

9

REF

INSTRUCTION

Drawbar, Rear - For Service Breakdown See Figure 39.110.04

1шт.

10

REF

INSTRUCTION

Drawbar, Front - For Service Breakdown See Figure 39.110.05

1шт.

11

REF

INSTRUCTION

Cover, Rear Drive Motor; Not Illustrated - For Service Breakdown See Figure 39.100.70

1шт.

Выбрано товаров: 12
