Запчасти Case SV212 (39.000.01) - FRAME COMPONENTS - SECTION PICTORIAL 1/2 (39) - FRAMES AND BALLASTING

REF

INSTRUCTION

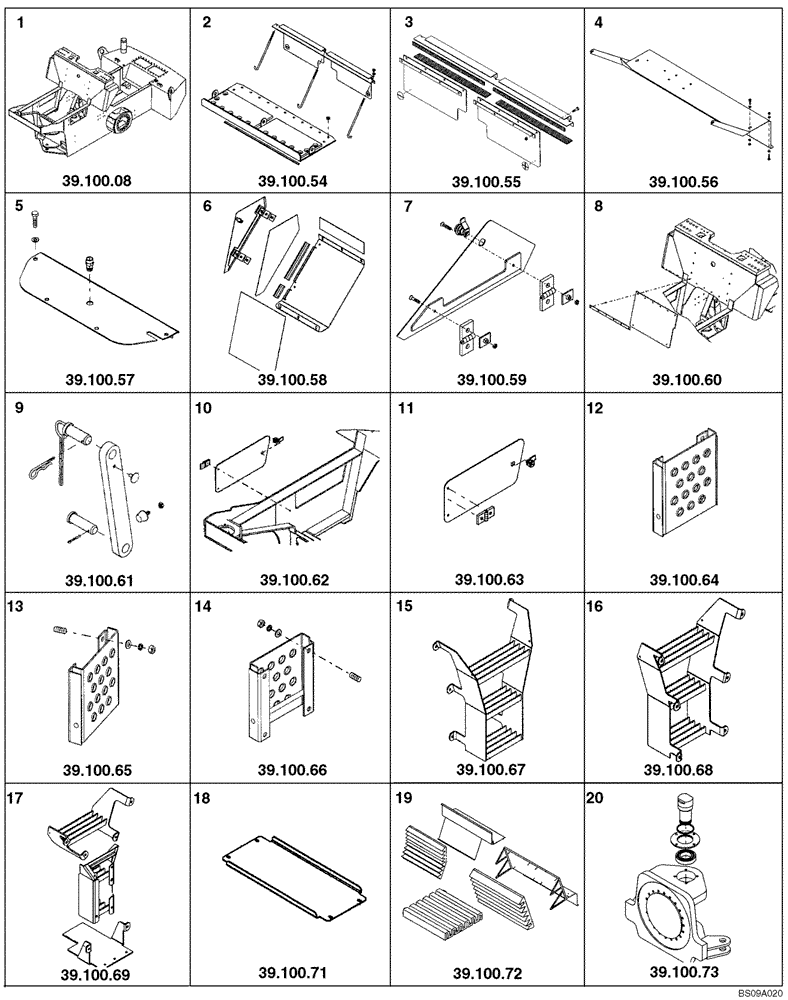

FRAME COMPONENTS - SECTION PICTORIAL

1шт.

1

REF

INSTRUCTION

Frame, Rear - For Service Breakdown See Figure 39.100.08

1шт.

2

REF

INSTRUCTION

Battery Hold Down & Fuel Tank Parts - For Service Breakdown See Figure 39.100.54

1шт.

3

REF

INSTRUCTION

Holder, Battery - For Service Breakdown See Figure 39.100.55

1шт.

4

REF

INSTRUCTION

Cover, Battery - For Service Breakdown See Figure 39.100.56

1шт.

5

REF

INSTRUCTION

Cover, Hydraulic Tank - For Service Breakdown See Figure 39.100.57

1шт.

6

REF

INSTRUCTION

Tool Box - For Service Breakdown See Figure 39.100.58

1шт.

7

REF

INSTRUCTION

Door, Tool Box - For Service Breakdown See Figure 39.100.59

1шт.

8

REF

INSTRUCTION

Cover, Hydraulic Pump - For Service Breakdown See Figure 39.100.60

1шт.

9

REF

INSTRUCTION

Lock, Articulated Joint - For Service Breakdown See Figure 39.100.61

1шт.

10

REF

INSTRUCTION

Door, Access RH - For Service Breakdown See Figure 39.100.62

1шт.

11

REF

INSTRUCTION

Door, Access LH - For Service Breakdown See Figure 39.100.63

1шт.

12

REF

INSTRUCTION

Step, Upper LH - For Service Breakdown See Figure 39.100.64

1шт.

13

REF

INSTRUCTION

Step, LH - For Service Breakdown See Figure 39.100.65

1шт.

14

REF

INSTRUCTION

Step, RH - For Service Breakdown See Figure 39.100.66

1шт.

15

REF

INSTRUCTION

Steps, Platform Access LH - For Service Breakdown See Figure 39.100.67

1шт.

16

REF

INSTRUCTION

Steps, Platform Access RH - For Service Breakdown See Figure 39.100.68

1шт.

17

REF

INSTRUCTION

Steps, Platform Access RH (ACE) - For Service Breakdown See Figure 39.100.69

1шт.

18

REF

INSTRUCTION

Cover, Chassis - For Service Breakdown See Figure 39.100.71

1шт.

19

REF

INSTRUCTION

Noise Reduction - For Service Breakdown See Figure 39.100.72

1шт.

20

REF

INSTRUCTION

Articulation Joint - For Service Breakdown See Figure(s) 39.100.73 (01) And 39.100.73 (02)

1шт.
