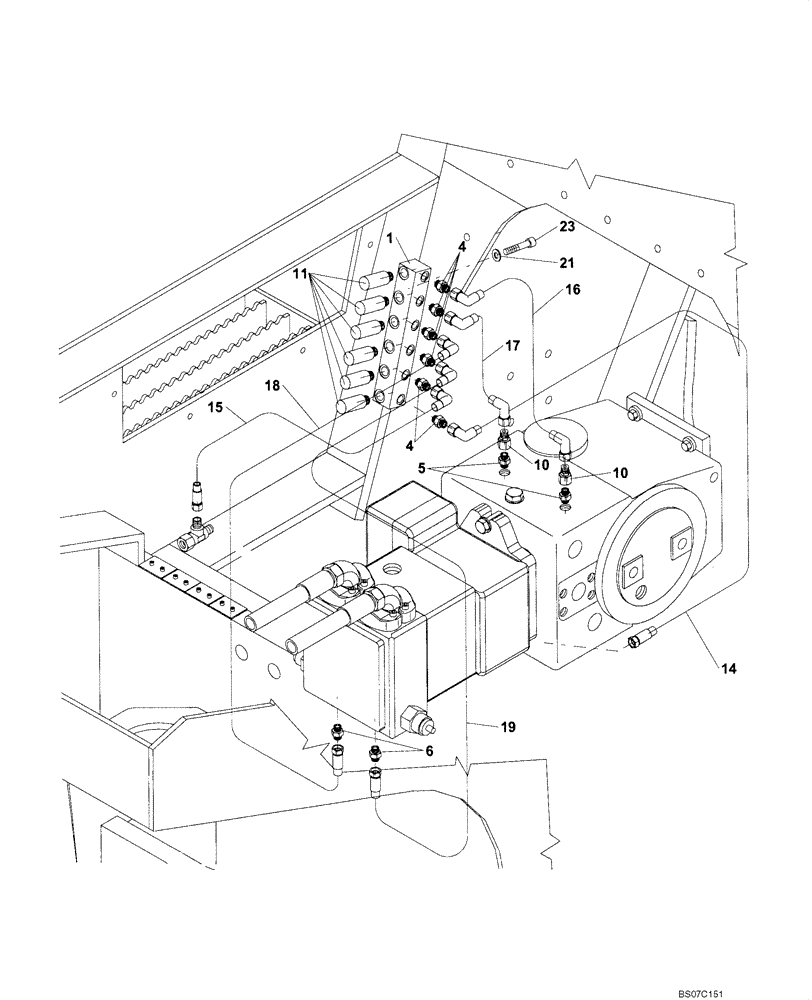

Запчасти Case SV212 (35.700.05[01]) - LINES, HYDRAULIC DIAGNOSTIC - BSN DDD001148 (35) - HYDRAULIC SYSTEMS

REF

INSTRUCTION

LINES, HYDRAULIC DIAGNOSTIC (ND122233) (GROUP 391)

1шт.

1

ND031315

BLOCK

1шт.

4

ND062197

HYD CONNECTOR

6шт.

5

ND062137

HYD CONNECTOR

2шт.

6

ND120738

PIPE

2шт.

10

ND062431

HYD CONNECTOR

2шт.

11

ND062258

HYD CONNECTOR

6шт.

14

ND061703

HOSE,900.00 mm

1шт.

15

ND061532

HOSE,350.00 mm

1шт.

16

ND061533

HOSE

550mm

1шт.

17

ND061534

HOSE,400.00 mm

1шт.

18

ND120736

HOSE

450 mm

1шт.

19

ND120737

HOSE

700 mm

1шт.

21

ND035940

SPRING WASHER

ID 8

2шт.

23

ND024245

BOLT

M8 x 25

2шт.
