Запчасти Case SV212 (35.700.01) - PUMP, HYDRAULIC, SMOOTH / PAD FOOT - BSN DDD001149 (35) - HYDRAULIC SYSTEMS

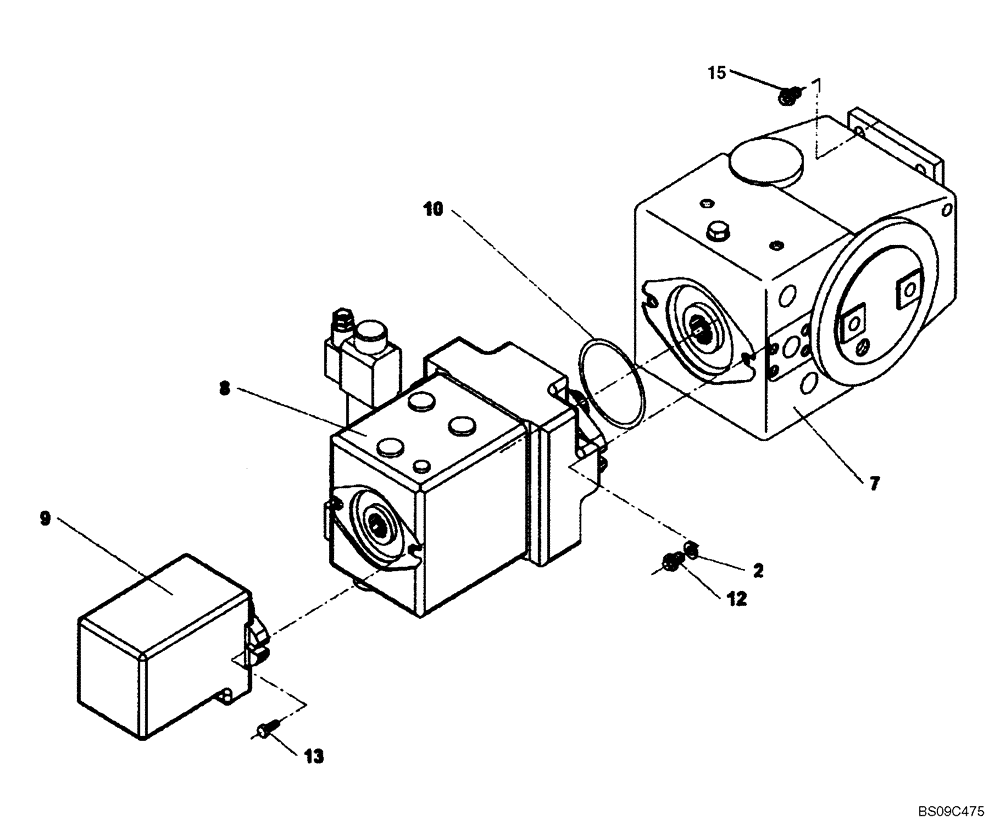

Схема запчастей Case SV212 - (35.700.01) - PUMP, HYDRAULIC, SMOOTH / PAD FOOT - BSN DDD001149 (35) - HYDRAULIC SYSTEMS
13
10
12
8
2
7
15
9

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

PUMP, HYDRAULIC (ND126716) (GROUP 115)

1шт.

2

ND049809

WASHER

2шт.

7

ND090919

HYDRAULIC PUMP

1шт.

8

ND126372

PUMP

1шт.

8-1

ND143749

SOLENOID VALVE

1шт.

8-2

31601

SCREW

Cyl. Head Screw DIN 912-M6 x 45-8.8; Not Illustrated

2шт.

8-3

1872428

SCREW

Cyl. Head Screw; Not Illustrated

2шт.

9

ND126095

PUMP

Gear

1шт.

10

ND144149

O-RING

Used Between Ref# 7 & 8

1шт.

10

ND139919

O-RING

Used Between Ref# 8 & 9

1шт.

12

ND034055

BOLT

2шт.

13

ND127820

BOLT

2шт.

15

ND118093

BOLT

4шт.

Выбрано товаров: 13
