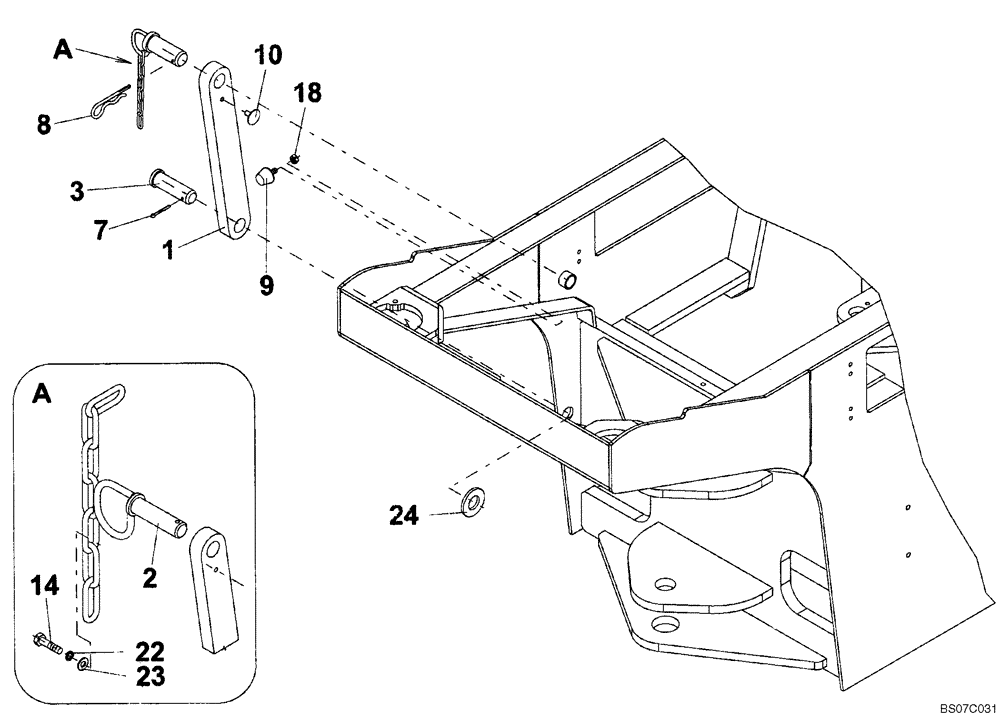

Запчасти Case SV212 (12-001-00[08]) - CHASSIS - ARTICULATED JOINT LOCK (GROUP 487) (ND126691) (09) - CHASSIS/ATTACHMENTS

JOINT LOCK (ND126691) (GROUP 487)

1шт.

1

ND030796

TIE-ROD

1шт.

2

ND126760

PIN

1шт.

3

ND126759

TOWBAR PIN

1шт.

7

ND029396

COTTER PIN

1шт.

8

ND118345

ROLL PIN

1шт.

9

ND079083

RUBBER BUMPER

1шт.

10

ND108312

PLUG

1шт.

14

ND110229

BOLT

1шт.

18

ND021848

NUT

1шт.

22

ND029308

WASHER

SPRING

1шт.

23

ND029247

WASHER

1шт.

24

ND124289

WASHER

1шт.
