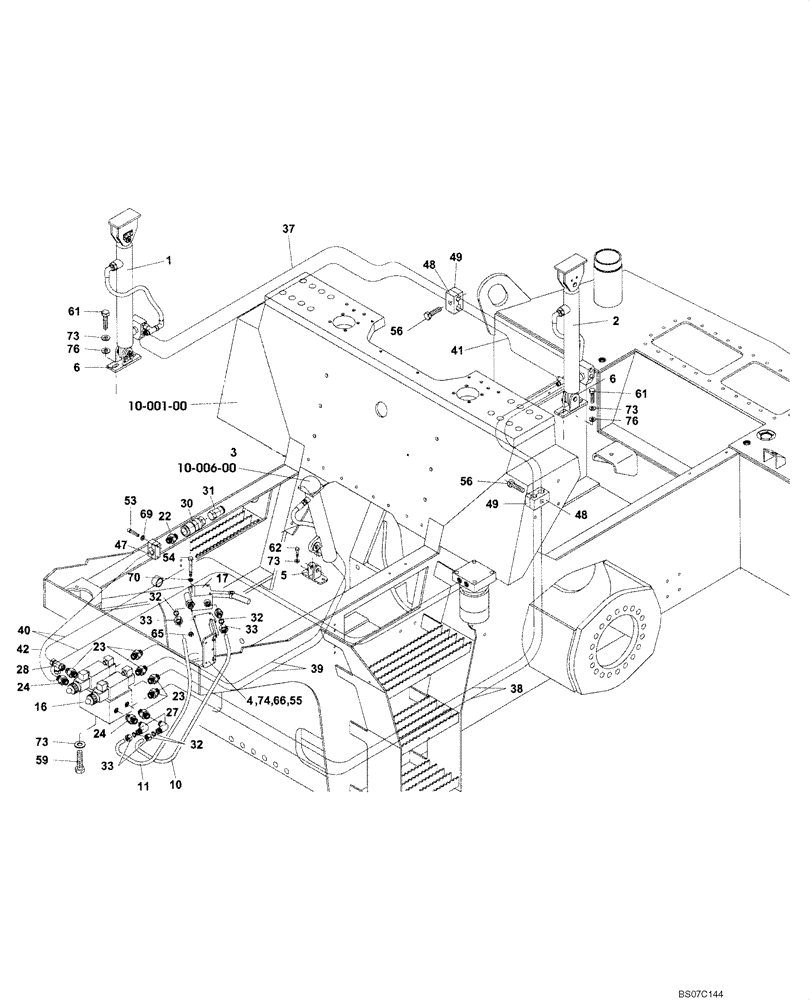

Запчасти Case SV212 (10-005-01[01]) - HYDRAULICS - HOOD & PLATFORM TILTING (GROUP 382) (ND110353) (08) - HYDRAULICS

.

HYDR SYST OF LIFTING (ND110353) (GROUP 382)

1шт.

1

ND103127

SERVICE KIT

1шт.

2

ND103131

SERVICE KIT

1шт.

3

ND103132

SERVICE KIT

1шт.

4

ND126729

HOLDER

1шт.

5

ND126749

BRACKET

FRONT

1шт.

6

ND126728

BRACKET

2шт.

10

ND127577

FLEXIBLE HOSE

PIPE

1шт.

11

ND127578

FLEXIBLE HOSE

PIPE

1шт.

16

ND067789

BLOCK

Includes ND067925 - Solenoid, Serial Range: -NENTC3557

1шт.

16

47715258

SOLENOID VALVE

, Start Serial: NENTC3558

1шт.

.

ND067925

SOLENOID

Not Illustrated

2шт.

17

ND067870

HYDRAULIC PUMP

HAND

1шт.

22

ND062220

HYD CONNECTOR

PIPE

1шт.

23

ND062233

HYD CONNECTOR

PIPE

6шт.

24

ND062234

HYD CONNECTOR

PIPE

2шт.

27

ND062414

ELBOW

L COUPLING

2шт.

28

ND062313

HYD CONNECTOR

T COUPLING

1шт.

30

ND112941

QUICK MALE COUPLING

FAST

1шт.

31

ND062386

COVER

1шт.

32

ND062038

SEAL

PACKING RING

4шт.

33

ND062045

NUT

CAP NUT

4шт.

37

ND102092

FLEXIBLE HOSE

800mm

1шт.

38

ND102093

HOSE,1280.00 mm

2шт.

39

ND102094

HOSE,370.00 mm

2шт.

40

ND102095

HOSE,800.00 mm

2шт.

41

ND102096

FLEXIBLE HOSE

800mm

1шт.

42

ND127245

HOSE

1шт.

47

ND064809

CLAMP

SLEEVE

1шт.

48

ND064851

SLEEVE

2шт.

49

ND064807

CLAMP

COVER

2шт.

53

ND024234

BOLT

BOLT

2шт.

54

ND021179

BOLT

BOLT

3шт.

55

ND021182

BOLT

BOLT

3шт.

56

ND021184

BOLT

BOLT

2шт.

59

ND021197

BOLT

BOLT

2шт.

61

ND021310

BOLT

BOLT

6шт.

65

ND021847

NUT

M6

3шт.

66

ND021848

NUT

3шт.

69

ND029248

WASHER

ID 6,4

2шт.

70

ND029309

SPRING WASHER

ID 6,1 SPRING

3шт.

72

ND035941

WASHER

ID 10

2шт.

73

ND035942

WASHER

ID 12

6шт.

74

ND035940

SPRING WASHER

SPRING

3шт.

76

ND122456

WASHER

4шт.
