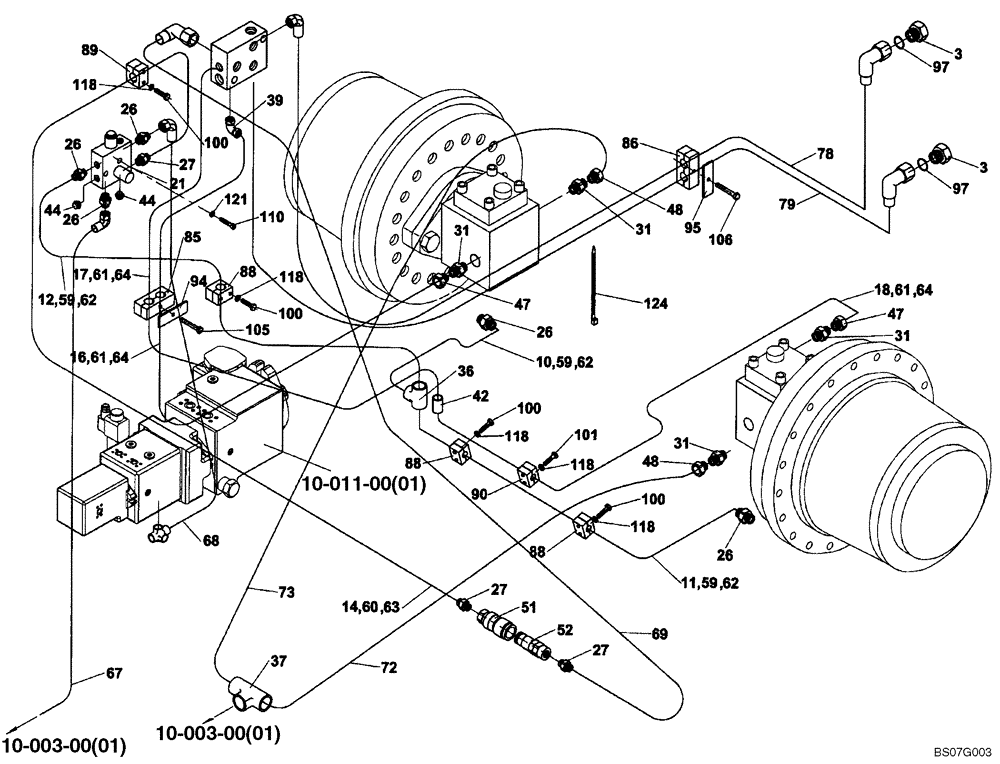

Запчасти Case SV212 (10-004-00[01]) - HYDRAULICS - TRAVEL - REAR (GROUP 305 A) (ND127513) (08) - HYDRAULICS

HYDR. SYSTEM OF TRAV (ND127513) (GROUP 305 A)

1шт.

3

ND031345

HYD CONNECTOR

2шт.

10

ND103197

FLEXIBLE HOSE

1шт.

11

ND103198

FLEXIBLE HOSE

1шт.

12

ND127572

HYD TUBE

1шт.

14

ND127573

HYD TUBE

1шт.

16

ND127574

PIPE

1шт.

17

ND127575

HYD TUBE

1шт.

18

ND103203

HYD TUBE

1шт.

21

ND123634

VALVE BLOCK

Includes ND067924 Solenoid and ND115381 Brake Pressure Switch

1шт.

21

ND067924

SOLENOID

Not Illustrated

2шт.

21

ND115381

PRESSURE SWITCH

PRESSURE SWITCH; Brake (Not Illustrated)

1шт.

26

ND062153

HYD CONNECTOR

6шт.

27

ND062173

HYD CONNECTOR

3шт.

31

ND062135

HYD CONNECTOR

5шт.

36

ND062294

TEE

1шт.

37

ND062335

TEE

1шт.

39

ND062367

HYD CONNECTOR

1шт.

42

ND062247

HYD CONNECTOR

1шт.

44

ND062452

PLUG

2шт.

47

ND062391

REDUCER

2шт.

48

ND062433

RESTRICTOR

3шт.

51

ND112940

COUPLING, QUICK, FEM

1шт.

52

ND112941

QUICK MALE COUPLING

1шт.

59

ND062039

SEAL

6шт.

60

ND062033

SLEEVE

2шт.

61

ND062037

SEAL

6шт.

62

ND062046

NUT

6шт.

63

ND062047

NUT

2шт.

64

ND062058

NUT

6шт.

67

ND127242

HOSE

1шт.

68

ND127244

HOSE

1шт.

69

ND127241

HOSE

1шт.

72

ND103076

FLEXIBLE HOSE

1шт.

73

ND103077

HOSE

1шт.

78

ND061508

FLEXIBLE HOSE

1шт.

79

ND061509

FLEXIBLE HOSE

1шт.

85

ND064802

SLEEVE

1шт.

86

ND064836

SLEEVE

1шт.

88

ND064797

SLEEVE

4шт.

89

ND064786

CLAMP

2шт.

90

ND064799

CLAMP

2шт.

94

ND064807

CLAMP

1шт.

95

ND064834

COVER

1шт.

97

ND073366

WASHER

2шт.

100

ND024231

BOLT

8шт.

101

ND024233

BOLT

2шт.

105

ND021184

BOLT

1шт.

106

ND024252

BOLT

1шт.

110

ND024264

BOLT

2шт.

118

ND029248

WASHER

14шт.

121

ND035941

WASHER

4шт.

124

ND106910

STRAP

15шт.
