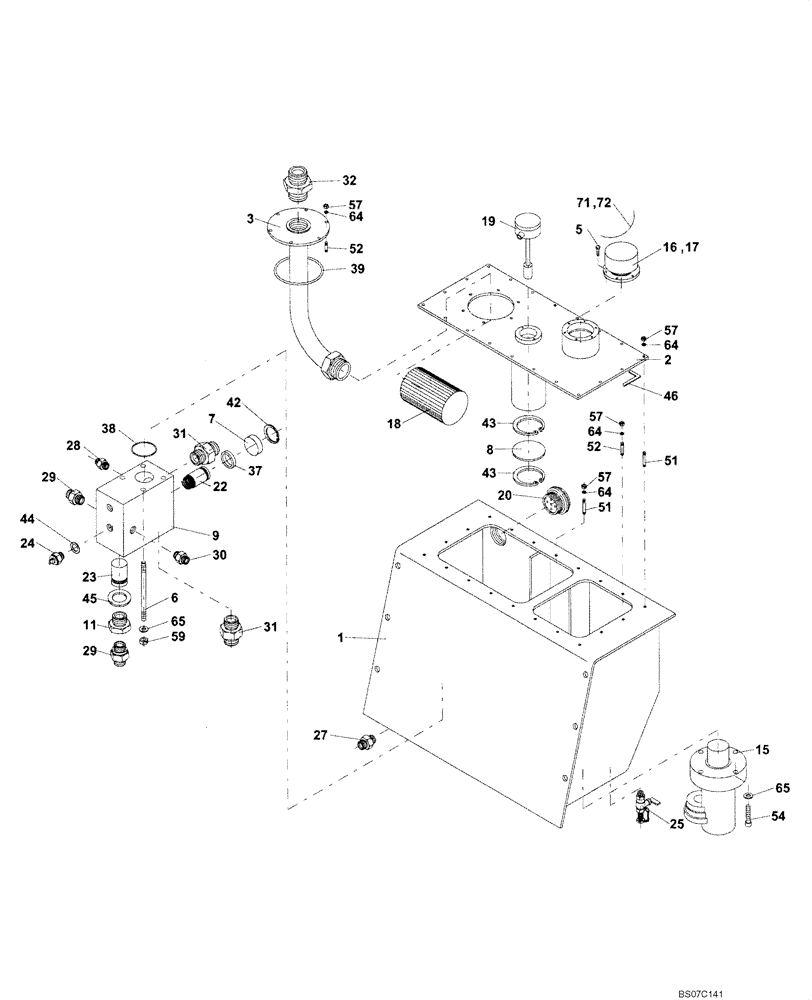

Запчасти Case SV212 (10-001-00[02]) - HYDRAULICS - RESERVOIR WITH ELECTRIC PUMP (GROUP 362) (ND121823) (08) - HYDRAULICS

.

HYDRAULIC TANK (ND121823) (GROUP 362)

1шт.

1

ND123244

RESERVOIR, HYDRAULIC

1шт.

2

ND123245

TOP COVER

1шт.

3

ND123246

HOLDER

1шт.

5

ND054246

BOLT

1шт.

6

ND103189

ROD

4шт.

7

ND103190

PLUG

1шт.

8

ND054261

SLEEVE

1шт.

9

ND123247

COUPLING BLOCK

1шт.

11

ND052876

HYD CONNECTOR

1шт.

15

ND067804

VALVE

1шт.

16

ND065471

CAP

1шт.

17

ND065473

ADAPTER

1шт.

18

ND067790

FILTER STRAINER

1шт.

19

ND064905

LEVEL GAUGE

Until P.I.N. DDD001148

1шт.

19

ND138001

LEVEL GAUGE

P.I.N. DDD001149 And After

1шт.

20

ND070150

LEVEL GAUGE

OIL

1шт.

22

ND102098

THERMOSTAT

1шт.

23

ND067788

VALVE

1шт.

24

ND098754

SENDER UNIT

Hyd Oil Temp

1шт.

25

ND121416

COCK, DRAIN

1шт.

27

ND062440

STOP PLUG

1шт.

28

ND062154

HYD CONNECTOR

1шт.

29

ND062140

HYD CONNECTOR

2шт.

30

ND062161

HYD CONNECTOR

1шт.

31

ND062162

HYD CONNECTOR

2шт.

32

ND062185

HYD CONNECTOR

1шт.

37

ND079933

O-RING

1шт.

38

ND079937

O-RING

1шт.

39

ND079938

O-RING

1шт.

42

ND102045

SNAP RING

1шт.

43

ND069890

SNAP RING

2шт.

44

ND073356

PACKING RING

PACKING

1шт.

45

ND073363

O-RING

PACKING

1шт.

46

ND103221

SEALING STRIP

1шт.

51

ND106607

STUD

2шт.

52

ND021710

STUD

24шт.

54

ND024250

BOLT

4шт.

57

ND021847

NUT

26шт.

59

ND021848

NUT

4шт.

64

ND029309

SPRING WASHER

26шт.

65

ND035940

SPRING WASHER

8шт.

71

ND037453

LEADSEAL

1шт.

72

ND100090

CABLE

1шт.
