(07-002-00[01]) - TRANSMISSION - DRIVE OF REAR AXLE (GROUP 95) (ND103104)

Запчасти Case SV212 (07-002-00[01]) - TRANSMISSION - DRIVE OF REAR AXLE (GROUP 95) (ND103104) (06) - POWER TRAIN

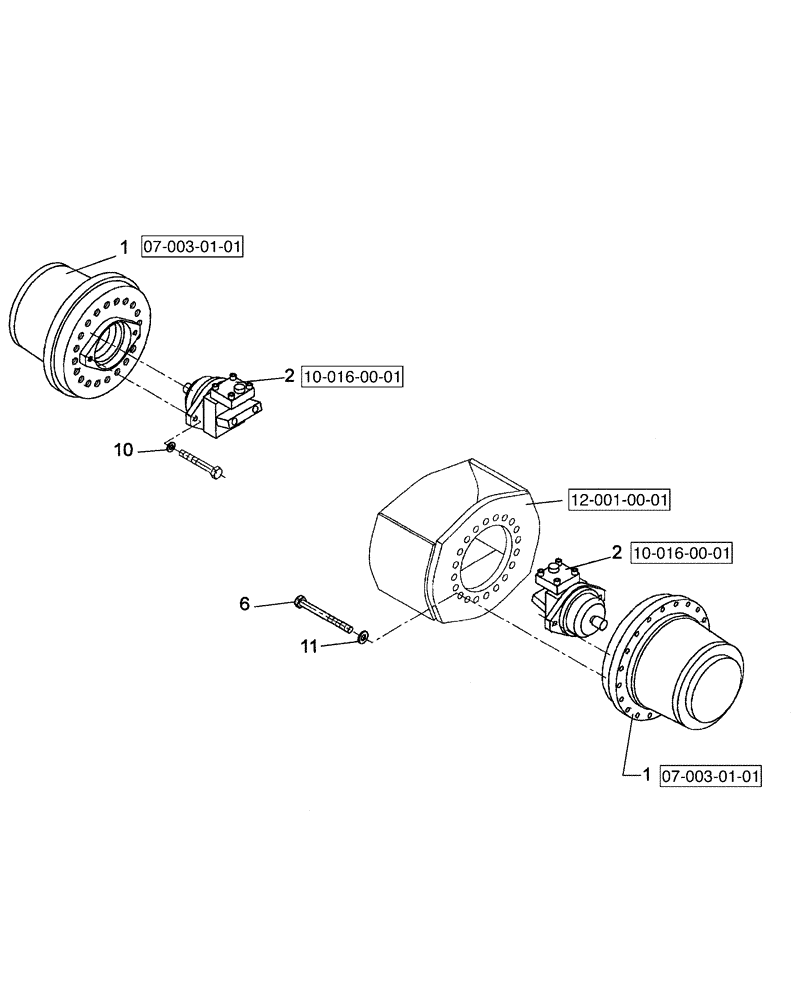

Схема запчастей Case SV212 - (07-002-00[01]) - TRANSMISSION - DRIVE OF REAR AXLE (GROUP 95) (ND103104) (06) - POWER TRAIN
1
2
11
10
2
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

(ND103104) (REAR AXLE DRIVE KIT) (GROUP 95)

1шт.

1

ND101767

REDUCER

2шт.

2

ND135693

HYDRAULIC MOTOR

MOTOR, HYDRAULIC; Replaces ND090792, Motor Hydraulic

2шт.

6

ND021241

BOLT

M20 x 65

40шт.

10

ND035943

WASHER

ID 16

4шт.

11

ND035944

WASHER

ID 20

40шт.

Выбрано товаров: 6
