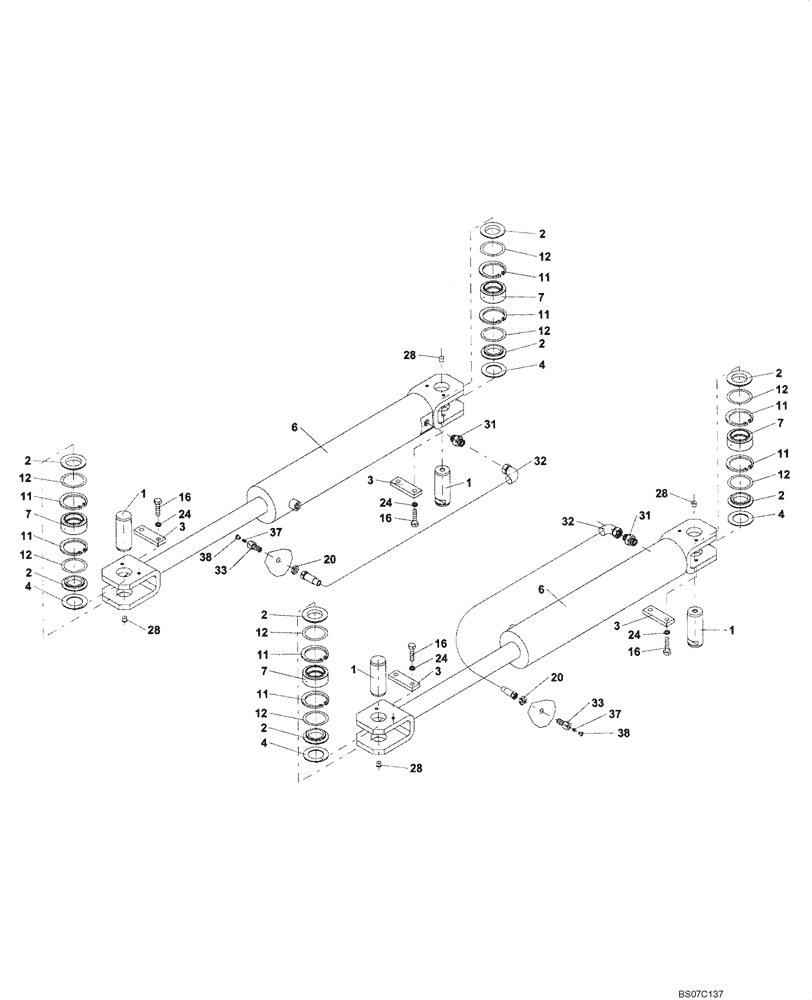

Запчасти Case SV212 (06-004-00[01]) - STEERING - CYLINDER (GROUP 372) (ND126675) (05) - STEERING

1

ND126733

PIN

4шт.

2

ND126761

RING

8шт.

3

ND048815

PLATE

PACKING

4шт.

4

ND126776

RING

2шт.

6

ND124578

STEERING CYLINDER

HYDROMOTOR, For Seal Kit See 39

2шт.

6

ND134695

SEAL PACKAGE

Incl in 6

1шт.

7

ND124579

BALL BEARING

BEARING

4шт.

11

ND069886

SNAP RING

8шт.

12

ND079772

RING

8шт.

16

ND021302

BOLT

M10 x 25 BOLT

8шт.

20

ND026471

NUT

2шт.

24

ND035941

WASHER

8шт.

28

ND124537

SHIN

4шт.

31

ND062170

PIPE

HOSE

2шт.

32

ND126346

HOSE

2шт.

33

ND126345

HYD CONNECTOR

2шт.

37

ND070133

LUBE NIPPLE,M10 x 1

4шт.

38

ND064758

PLUG

4шт.
