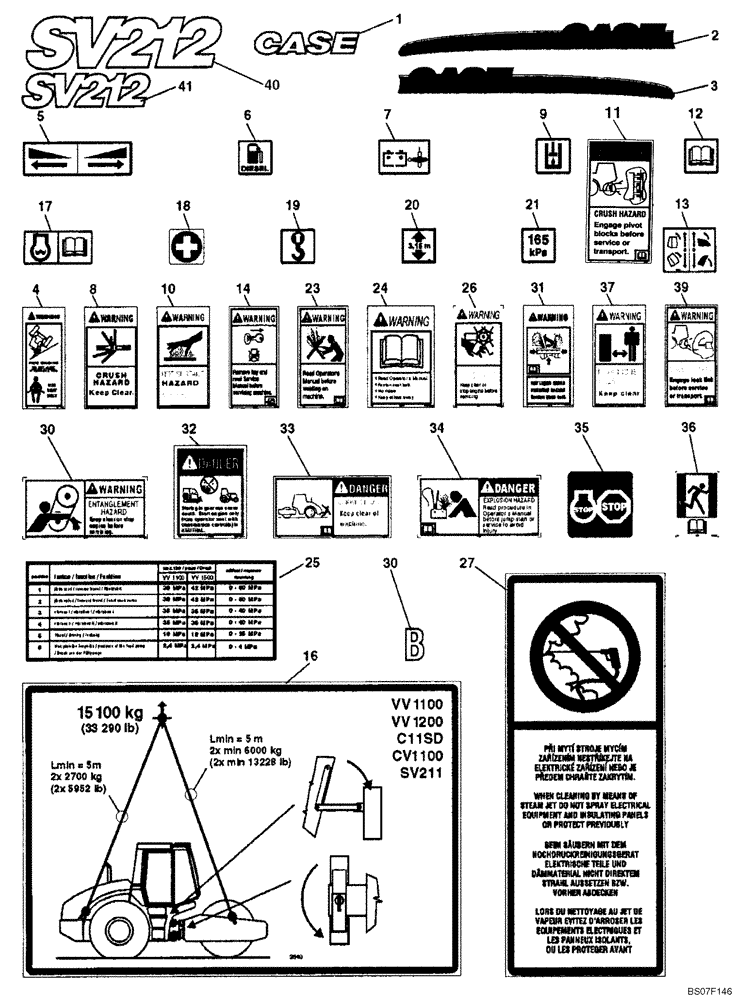

Запчасти Case SV212 (12-028-00[02]) - CHASSIS - DECALS - NORTH AMERICA (GROUP 510 / 69) (ND104805) (09) - CHASSIS/ATTACHMENTS

(ND104805) (DECAL SPARE PART SET) (GROUP 510)

1шт.

1

ND110464

DECAL

Case logo

2шт.

2

ND110462

DECAL

Stripe

1шт.

3

ND110463

DECAL

Stripe

1шт.

4

ND106583

WARNING DECAL

Warning use seat belt

1шт.

5

ND081629

DECAL

1шт.

6

ND081458

DECAL

Diesel fuel

1шт.

7

ND081677

DECAL

Battery disconect

1шт.

8

ND106588

WARNING DECAL

Warning crush hazard

2шт.

9

ND081465

DECAL

1шт.

10

ND106591

WARNING DECAL

Warning hot surface

1шт.

11

ND106590

DECAL

Crush hazzard engage pivot blocks (ND111483) (GROUP 69)

1шт.

12

ND081612

DECAL

Operators manual

1шт.

13

ND081828

DECAL

Platform hood tilt

1шт.

14

ND106592

WARNING DECAL

Warning remove key

1шт.

16

ND081824

DECAL

Lifting

1шт.

17

ND081459

DECAL

1шт.

18

ND081611

DECAL

First aid

1шт.

19

ND081460

DECAL

Lifting point

4шт.

20

ND122802

DECAL

Machine max height

1шт.

21

ND081587

DECAL

2шт.

23

ND106593

WARNING DECAL

Warning read operators manual

1шт.

24

ND106584

WARNING DECAL

Operators manual

1шт.

25

ND081795

DECAL

System pressure

1шт.

26

ND106576

WARNING DECAL

Warning keep clear

2шт.

27

ND081530

DECAL

Cleaning machine

2шт.

30

ND106577

WARNING DECAL

Warning entanglement

2шт.

31

ND106578

WARNING DECAL

Warning hot liquid

2шт.

32

ND106579

DANGER DECAL

Danger starting engine

1шт.

33

ND106580

DANGER DECAL

Danger runover hazard

1шт.

34

ND106581

DANGER DECAL

Danger battery explosion

1шт.

35

ND106582

DECAL

Stop

1шт.

36

ND106585

DECAL

Emergency exit

1шт.

37

ND106586

WARNING DECAL

Warning

2шт.

39

ND106589

WARNING DECAL

Warning crush hazard

2шт.

41

ND110466

DECAL

Model

1шт.

43

ND119495

DECAL

Not illustrated

4шт.
