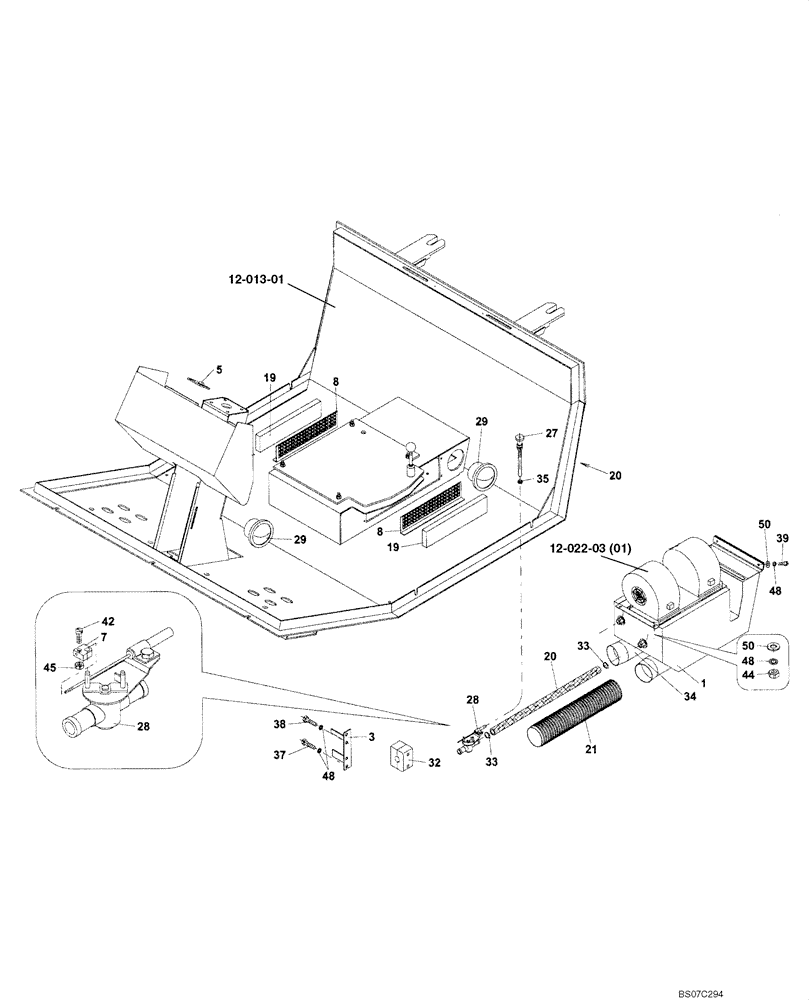

Запчасти Case SV212 (12-022-03[00]) - CHASSIS - PLATFORM - HEATER INSTALLATION (GROUP 600) (ND012032) (09) - CHASSIS/ATTACHMENTS

WATER HEATING (ND012032) (GROUP 600)

1шт.

1

ND126713

UNIT HEATER

1шт.

3

ND054228

SUPPORT

HOLDER

1шт.

5

ND053444

SWITCH

ELECTRONIC

1шт.

7

ND053448

CLAMP

1шт.

8

ND031723

GRILLE

2шт.

19

ND076166

AIR FILTER

2шт.

20

ND076168

HOSE

1шт.

21

ND075848

HOSE

2шт.

26

ND081822

DECAL

1шт.

27

ND090785

FLEXIBLE CONTROL

PULL

1шт.

28

ND090033

DRAINCOCK/TAP SUPPLY

WATER VALVE

1шт.

29

ND089999

RING

BLOWER

4шт.

32

ND064809

CLAMP

SLEEVE

1шт.

33

ND069479

CLAMP

CLIP

4шт.

34

ND078445

SECURING STRAP

1шт.

35

ND079515

GROMMET

1шт.

37

ND024234

BOLT

BOLT

2шт.

38

ND021287

BOLT,M8 x 16

BOLT

2шт.

39

ND021288

BOLT

BOLT

2шт.

42

ND024109

BOLT

BOLT

1шт.

44

ND021847

NUT

2шт.

45

ND026413

NUT

1шт.

48

ND029309

SPRING WASHER

SPRING

8шт.

50

ND029290

WASHER

WASHER FOR WOOD

4шт.
