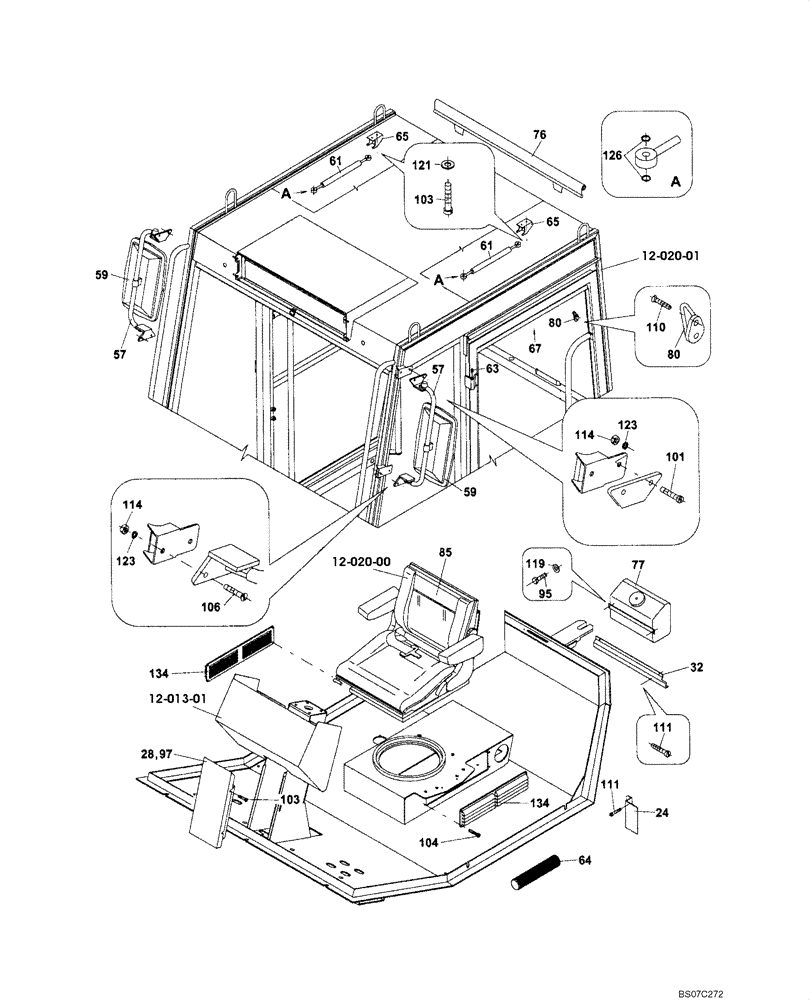

Запчасти Case SV212 (12-015-00[01]) - CHASSIS - PLATFORM COMPLETE (GROUP 165 C) (ND001506) (09) - CHASSIS/ATTACHMENTS

.

COMPLETE CABIN (ND001506) (GROUP 165 C)

1шт.

24

ND103163

CLAMP

CLIP

1шт.

28

ND031632

COVER

1шт.

32

ND103162

COVER

SHEET

1шт.

57

ND064405

SUPPORT

MIRROR HOLDER

2шт.

59

ND064408

MIRROR

2шт.

61

ND064716

GAS STRUT

2шт.

63

ND064758

PLUG

CAP

6шт.

64

ND101587

HOSE,170.00 mm

1шт.

65

ND078515

COVER

2шт.

67

ND078508

CLAMP

CLIP

12шт.

76

ND063885

SUNSHADE

1шт.

77

ND065424

RESERVOIR, WINDSHIEL

24V, Includes Pump

1шт.

80

ND089998

COAT HOOK

RACK

2шт.

85

ND118091

DRIVER SEAT

UPHOLSTERY

1шт.

95

ND023811

BOLT

M8 x 16 BOLT

2шт.

97

ND023791

BOLT

M5 x 12 BOLT

1шт.

101

ND024135

BOLT

M6 x 16 BOLT

4шт.

103

ND024121

BOLT

M5 x 10 BOLT

2шт.

104

ND024109

BOLT

BOLT

8шт.

106

ND024381

SCREW

M6 x 16 COUNTERSINK

4шт.

110

ND025017

BOLT

M4 x 16 BOLT

1шт.

111

ND024966

SELF-TAP SCREW

SELF TAPPING

1шт.

114

ND021847

NUT

M6

1шт.

119

ND029249

WASHER

ID 8,4

2шт.

121

ND029247

WASHER

ID 5,3

1шт.

123

ND029309

SPRING WASHER

ID 6,1 SPRING

1шт.

126

ND069816

SNAP RING

ID 10 LOCKING

4шт.

134

ND064524

GRILLE

GRATE

2шт.
