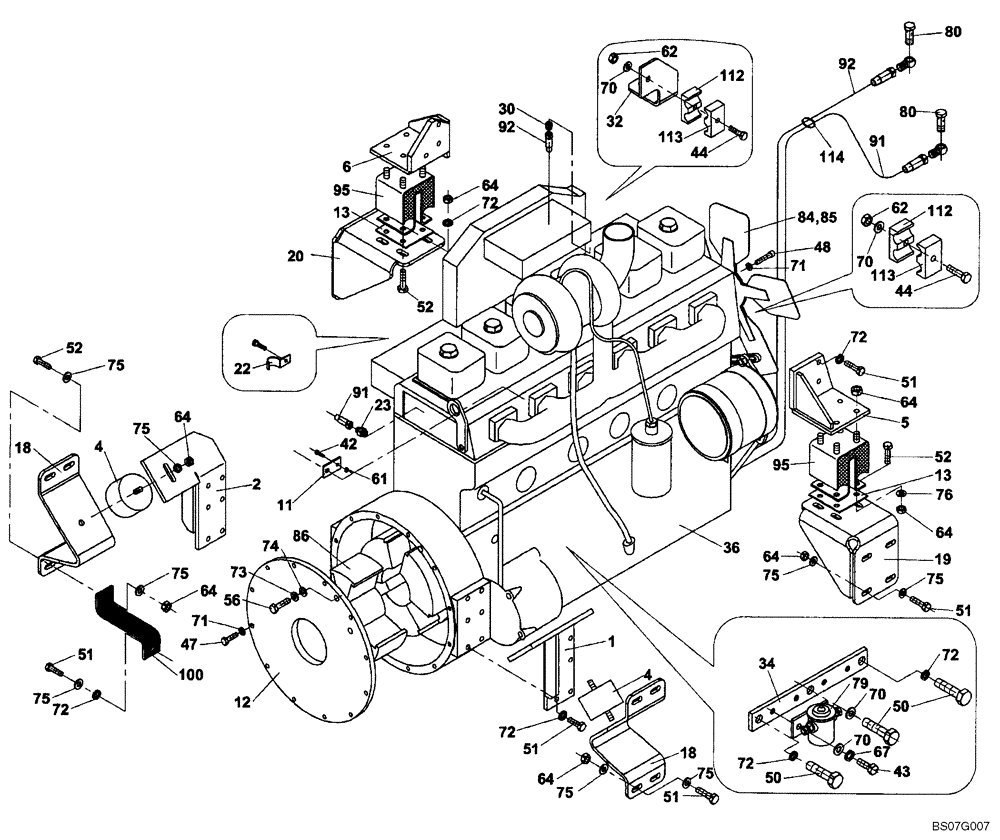

Запчасти Case SV212 (02-001-00[01]) - ENGINE - MOUNTING (GROUP 105) (ND114733) (02) - ENGINE

ENGINE MOUNTING (ND114733) (GROUP 105)

1шт.

1

ND028621

SUPPORT

1шт.

2

ND028625

SUPPORT

1шт.

4

ND107210

SHOCK ABSORBER

2шт.

5

ND029756

SUPPORT

1шт.

6

ND029753

SUPPORT

1шт.

11

ND114781

HOLDER

1шт.

12

ND119074

FLANGE

1шт.

13

ND049398

PLATE

4шт.

18

ND126692

BRACKET

FRONT

2шт.

19

ND126694

BRACKET

LOWER

1шт.

20

ND126693

BRACKET

LOWER

1шт.

22

ND117963

CLAMP

1шт.

23

ND062207

HYD CONNECTOR

1шт.

30

ND053059

HYD CONNECTOR

1шт.

32

ND126747

HOLDER

1шт.

34

ND114775

HOLDER

1шт.

36

NSS

NOT SOLD SEPARAT

Includes; ND116137 Fuel Filter, ND116138 - Oil Filter

1шт.

ND110994

ENGINE ASSEMBLY

ENGINE ASSY

1шт.

ND116137

FUEL FILTER

Not Illustrated

1шт.

ND116138

ENGINE OIL FILTER

Not Illustrated

1шт.

42

ND021287

BOLT,M8 x 16

1шт.

43

ND021293

BOLT

4шт.

44

ND021187

BOLT

M8 x 50

2шт.

47

ND021195

BOLT

M10 x 35

10шт.

48

ND024266

BOLT

M10 x 80

4шт.

50

ND021309

BOLT,M12 x 25

3шт.

51

ND021311

BOLT

M12 x 35

18шт.

52

ND021312

BOLT

M12 x 40

24шт.

56

ND021327

BOLT

2шт.

61

ND027300

NUT

1шт.

62

ND021848

NUT

M8

2шт.

64

ND034086

NUT

M12

36шт.

67

ND029249

WASHER

4шт.

70

ND035940

SPRING WASHER

ID 8

6шт.

71

ND035941

WASHER

ID 10

14шт.

72

ND035942

WASHER

ID 12

25шт.

73

ND035943

WASHER

ID 16

2шт.

74

ND029253

WASHER

ID 17

2шт.

75

ND122456

WASHER

46шт.

79

ND091347

RELAY

24V Starter Relay

2шт.

80

ND062457

BOLT

Includes Bolt, Banjo Fitting, and Sealing Washer

2шт.

84

ND119724

FAN

1шт.

85

ND119725

SPACER

1шт.

86

ND091164

SPACER

1шт.

91

ND129033

HOSE

1шт.

92

ND129034

HOSE

1шт.

95

ND064129

RUBBER MOUNTING

2шт.

100

ND066152

WIRE HARNESS

1шт.

112

ND062019

CLAMP

2шт.

113

ND064807

CLAMP

2шт.

114

ND078445

SECURING STRAP

5шт.
