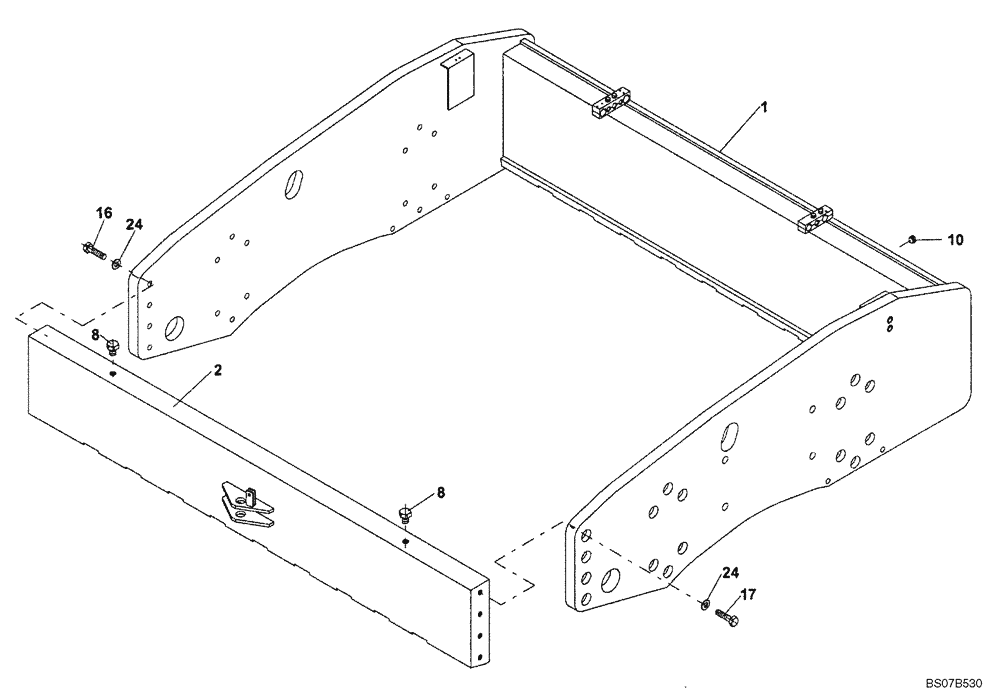

Запчасти Case SV212 (12-005-00[01]) - CHASSIS - DRUM FRAME (GROUP 52) (ND103362) (09) - CHASSIS/ATTACHMENTS

DRUM FRAME (ND103362) (GROUP 52)

1шт.

1

ND126677

FRAME

Front

1шт.

2

ND126687

PANEL

FRONT PANEL

1шт.

8

ND109004

PLUG

2шт.

10

ND114913

PLUG

2шт.

16

ND021343

BOLT

M20 x 45

4шт.

17

ND021345

BOLT

M20 x 60

4шт.

24

ND035944

WASHER

ID 20

8шт.
