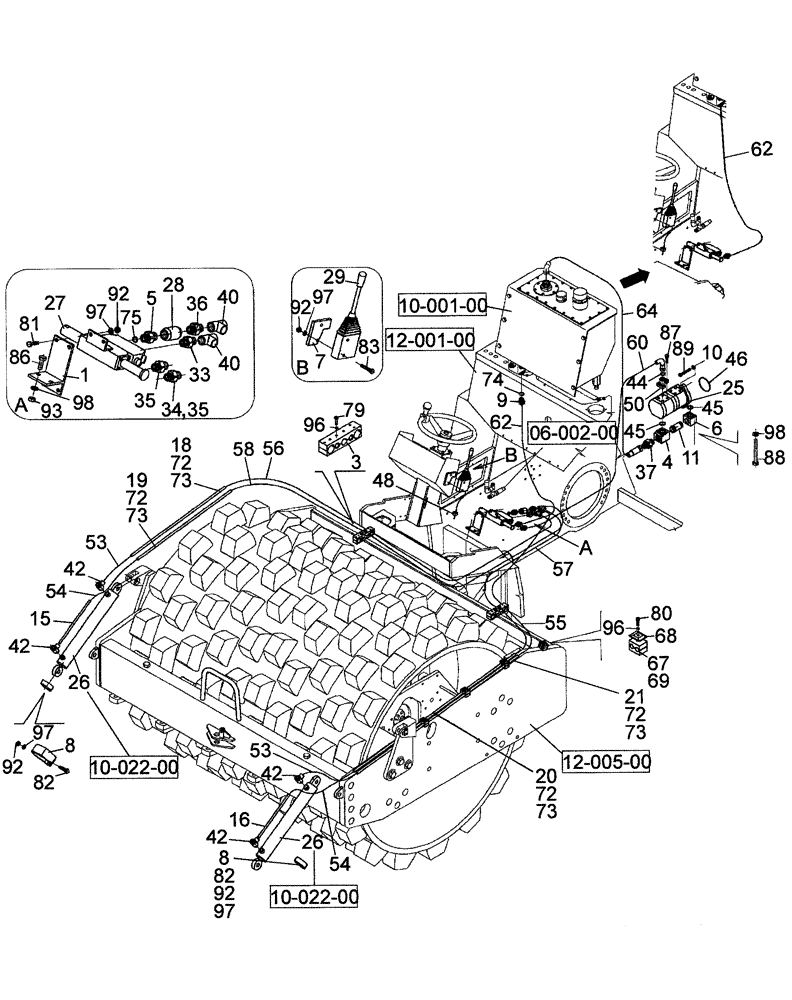

Запчасти Case SV212 (10-010-00[01]) - HYDRAULIC CIRCUIT, DOZER BLADE - IF USED (08) - HYDRAULICS

1

ND098269

SUPPORT

1шт.

3

ND051432

CLAMP

2шт.

4

ND096307

BLOCK

1шт.

5

ND050613

HYD CONNECTOR

1шт.

6

ND096308

BLOCK

1шт.

7

ND098290

PLATE

1шт.

8

ND098282

CLAMP

1шт.

9

ND096306

HYD CONNECTOR

1шт.

Serial Number : Until DDD0001009

1шт.

10

ND042815

WASHER

ID 12

2шт.

11

ND098270

FLEXIBLE HOSE

1шт.

15

ND099898

FLEXIBLE HOSE

1шт.

16

ND099899

FLEXIBLE HOSE

1шт.

18

ND099900

FLEXIBLE HOSE

1шт.

19

ND099901

FLEXIBLE HOSE

1шт.

20

ND099902

FLEXIBLE HOSE

1шт.

21

ND099903

FLEXIBLE HOSE

1шт.

25

ND067967

HYDRAULIC PUMP

1шт.

26

ND068139

HYDRAULIC CYLINDER

2шт.

27

ND067850

CONTROL VALVE

1шт.

28

ND068008

VALVE

1шт.

29

ND067848

JOYSTICK

1шт.

33

ND062124

HYD CONNECTOR

1шт.

34

ND062212

HYD CONNECTOR

1шт.

Serial Number : Until DDD0001017

1шт.

35

ND062110

HYD CONNECTOR

1шт.

Serial Number : Until DDD0001009

1шт.

35

ND062140

HYD CONNECTOR

2шт.

Serial Number : DDD0001010 And After

1шт.

35

ND062140

HYD CONNECTOR

3шт.

Serial Number : DDD0001019 And After

1шт.

36

ND062171

HYD CONNECTOR

1шт.

37

ND062185

HYD CONNECTOR

1шт.

40

ND062413

HYD CONNECTOR

2шт.

42

ND062467

BOLT

4шт.

44

ND079933

O-RING

1шт.

45

ND079934

O-RING

4шт.

46

ND079806

RING

1шт.

Serial Number : DDD0001001 And After

1шт.

48

ND079514

GROMMET

1шт.

50

ND062013

HALF-COLLAR

2шт.

53

ND061712

HOSE,320.00 mm

2шт.

54

ND061713

HOSE,330.00 mm

2шт.

55

ND061714

FLEXIBLE HOSE

1550mm

1шт.

56

ND061715

FLEXIBLE HOSE

1550mm

1шт.

57

ND061716

FLEXIBLE HOSE

1700mm

1шт.

58

ND061728

FLEXIBLE HOSE

1700mm

1шт.

60

ND061717

FLEXIBLE HOSE

2000mm

1шт.

62

ND060971

FLEXIBLE HOSE

1200mm

1шт.

Serial Number : Until DDD0001009

1шт.

62

ND106565

FLEXIBLE HOSE

1200mm

1шт.

Serial Number : DDD0001010 And After

1шт.

64

ND061718

FLEXIBLE HOSE

1350mm

1шт.

67

ND064847

HOSE

8шт.

68

ND064833

COVER

8шт.

69

ND064831

SUPPORT

8шт.

72

ND062047

NUT

8шт.

73

ND062033

SLEEVE

8шт.

74

ND073364

SEAL

27 x 32 x1

1шт.

Serial Number : Until DDD0001009

1шт.

75

ND073349

SEAL

13 x 17 x 1,5

1шт.

79

ND023707

SCREW

M6 x 30

4шт.

80

ND021174

BOLT

M6 x 35

8шт.

81

ND021294

BOLT

M8 x 20

4шт.

82

ND021296

BOLT

M8 x 30

2шт.

83

ND024250

BOLT

M8 x 50

2шт.

86

ND021303

BOLT

M10 x 30

2шт.

87

ND021195

BOLT

M10 x 35

4шт.

88

ND021203

BOLT,Hex, M10 x 80mm

M10 x 80

8шт.

89

ND021215

BOLT

M12 x 80

2шт.

92

ND021848

NUT

M8

8шт.

93

ND021849

NUT

M10

2шт.

96

ND029309

SPRING WASHER

ID 6,1

12шт.

97

ND035940

SPRING WASHER

ID 8

8шт.

98

ND035941

WASHER

ID 8

10шт.
