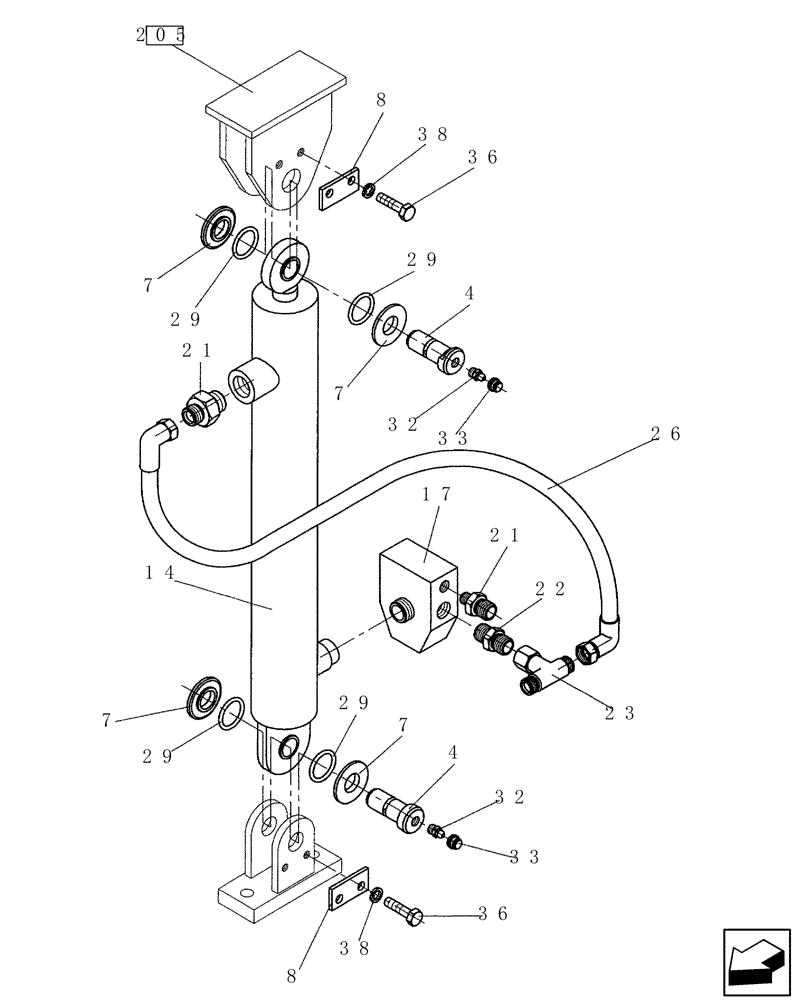

Запчасти Case SV212 (10-007-00[01]) - HYDRAULIC CIRCUIT - ENGINE HOOD OPENING CYLINDER - RIGHT - IF USED (08) - HYDRAULICS

4

ND049262

PIN

2шт.

7

ND049260

INSERT

4шт.

8

ND049268

COVER PLATE

2шт.

14

ND068121

CYLINDER

1шт.

17

ND067918

VALVE

1шт.

21

ND062200

HYD CONNECTOR

2шт.

22

ND062221

HYD CONNECTOR

1шт.

23

ND062326

HYD CONNECTOR

1шт.

26

ND101576

FLEXIBLE HOSE

450mm

1шт.

29

ND079727

O-RING

332 x 2,5

4шт.

32

ND070133

LUBE NIPPLE,M10 x 1

M10 x 1

2шт.

33

ND064758

PLUG

2шт.

36

ND021292

BOLT

M8 x 12

4шт.

38

ND035940

SPRING WASHER

ID 8

4шт.
