Запчасти Case SV212 (10-003-00[01]) - HYDRAULIC CIRCUIT, TRAVEL - DRUM (08) - HYDRAULICS

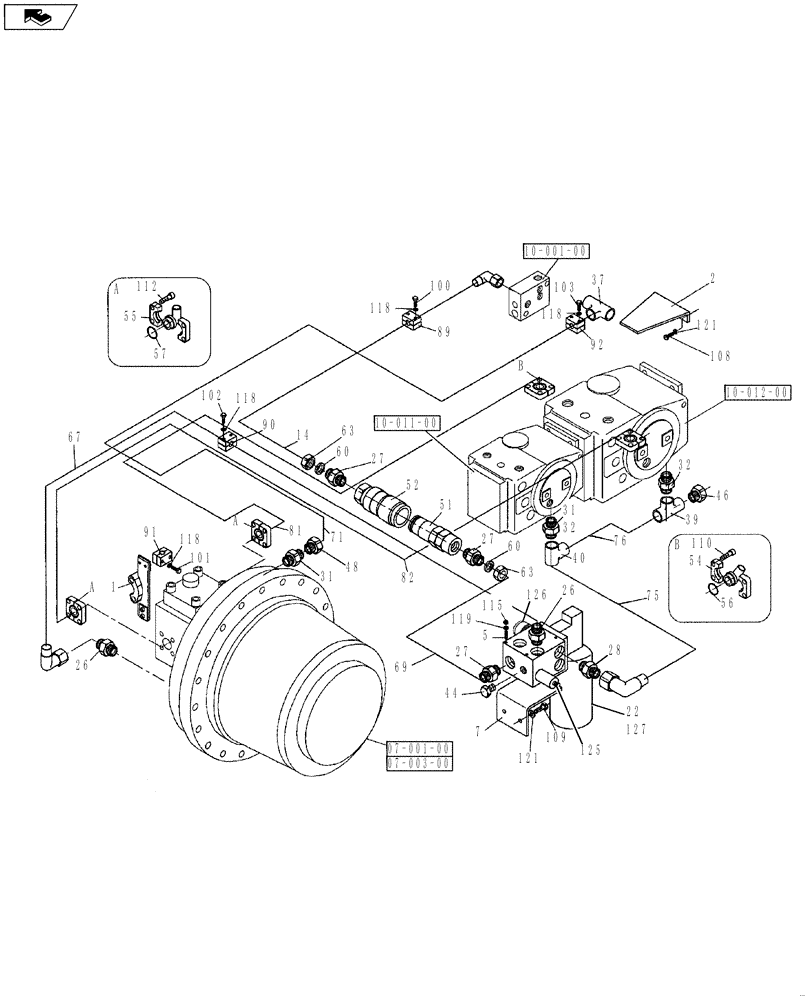

Схема запчастей Case SV212 - (10-003-00[01]) - HYDRAULIC CIRCUIT, TRAVEL - DRUM (08) - HYDRAULICS
126
102
26
27
7
109
a
14
27
22
71
103
46
121
37
44
32
60
121
76
67
10-011-00
07-003-00
07-001-00
10-012-00
10-001-00
52
2
28
a
101
31
63
110
27
100
b
1
118
81
118
48
26
home
57
127
125
118
112
63
115
91
119
89
39
55
54
32
90
b
69
56
5
40
118
60
108
82
75
a
51
31
92

Артикул

Название

Примечание

Количество

1

ND031988

SUPPORT

1шт.

2

ND103147

SUPPORT

1шт.

Serial Number : Until DDD0001009

1шт.

2

ND103340

SUPPORT

1шт.

Serial Number : DDD0001010 And After

1шт.

5

ND052985

STUD

3шт.

7

ND103175

BRACKET

1шт.

14

ND103200

FLEXIBLE HOSE

1шт.

22

ND067795

VALVE

1шт.

26

ND062153

HYD CONNECTOR

4шт.

Serial Number : Until DDD0001009

1шт.

26

ND062153

HYD CONNECTOR

5шт.

Serial Number : DDD0001010 And After

1шт.

27

ND062173

HYD CONNECTOR

3шт.

28

ND062196

HYD CONNECTOR

1шт.

31

ND062135

HYD CONNECTOR

2шт.

32

ND062136

HYD CONNECTOR

1шт.

37

ND062335

TEE

1шт.

39

ND062426

HYD CONNECTOR

1шт.

40

ND062298

HYD CONNECTOR

1шт.

Serial Number : Until DDD0001009

1шт.

44

ND062452

PLUG

1шт.

46

ND062428

RESTRICTOR

1шт.

48

ND062433

RESTRICTOR

1шт.

51

ND062277

COUPLING, QUICK, FEM

1шт.

52

ND062280

QUICK MALE COUPLING

1шт.

54

ND062008

HALF-COLLAR

8шт.

56

ND079933

O-RING

4шт.

60

ND062033

SLEEVE

2шт.

63

ND062047

NUT

2шт.

67

ND061504

FLEXIBLE HOSE

3750mm

1шт.

69

ND061225

FLEXIBLE HOSE

400mm

1шт.

71

ND103079

FLEXIBLE HOSE

1шт.

Serial Number : DDD0001001 And After

1шт.

71

ND104859

FLEXIBLE HOSE

3250mm

1шт.

Serial Number : DDD0001001 And After

1шт.

75

ND061540

FLEXIBLE HOSE

500mm

1шт.

Serial Number : Until DDD0001009

1шт.

75

ND106983

HOSE

420mm

1шт.

Serial Number : DDD0001010 And After

1шт.

76

ND061145

FLEXIBLE HOSE

650mm

1шт.

81

ND061709

FLEXIBLE HOSE

3450mm

1шт.

Serial Number : DDD0001001 And After

1шт.

81

ND061709

FLEXIBLE HOSE

3250mm

1шт.

Serial Number : DDD0001001 And After

1шт.

82

ND061708

FLEXIBLE HOSE

3750mm

1шт.

Serial Number : DDD0001001 And After

1шт.

82

ND061708

FLEXIBLE HOSE

3650mm

1шт.

Serial Number : DDD0001001 And After

1шт.

89

ND064786

CLAMP

2шт.

90

ND064799

CLAMP

1шт.

91

ND061999

CLAMP

2шт.

92

ND064810

SLEEVE

1шт.

Serial Number : Until DDD0001009

1шт.

92

ND064809

CLAMP

1шт.

Serial Number : DDD0001010 And After

1шт.

100

ND024231

BOLT

M6 x 22

8шт.

101

ND024233

BOLT

M6 x 28

6шт.

102

ND024235

BOLT

M5 x 35

2шт.

103

ND024236

BOLT

M6 x 40

2шт.

Serial Number : Until DDD0001009

1шт.

103

ND024234

BOLT

M6 x 30

2шт.

Serial Number : DDD0001010 And After

1шт.

108

ND021197

BOLT

M10 x 45

2шт.

109

ND021302

BOLT

M10 x 25

2шт.

110

ND024259

BOLT

M10 x 30

8шт.

112

ND034059

BOLT

8шт.

115

ND021847

NUT

M6

3шт.

118

ND029248

WASHER

ID 6,4

18шт.

119

ND029309

SPRING WASHER

ID 6,1

3шт.

121

ND035941

WASHER

ID10

4шт.

124

ND078446

SECURING STRAP

15шт.

Serial Number : Until DDD0001009

1шт.

124

ND106910

STRAP

15шт.

Serial Number : DDD0001010 And After

1шт.

125

ND133238

SOLENOID

1шт.

126

84389510

PRESSURE SWITCH

1шт.

127

ND065484

ELEMENT

1шт.

Выбрано товаров: 78
