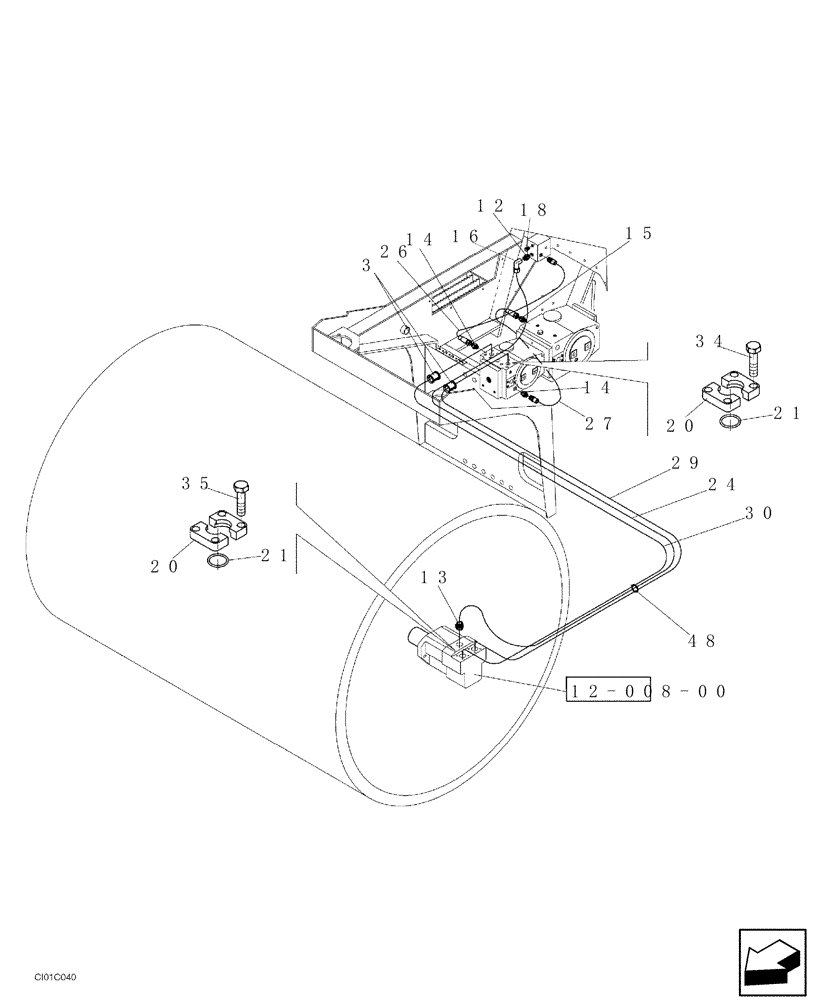

Запчасти Case SV212 (10-002-00[01]) - HYDRAULIC CIRCUIT - VIBRATION (08) - HYDRAULICS

3

ND053294

SNAP RING

2шт.

12

ND062109

HYD CONNECTOR

1шт.

13

ND062181

HYD CONNECTOR

1шт.

14

ND062138

HYD CONNECTOR

2шт.

15

ND062135

HYD CONNECTOR

1шт.

16

ND062367

HYD CONNECTOR

1шт.

18

ND062378

PLUG

1шт.

20

ND062008

HALF-COLLAR

8шт.

21

ND079933

O-RING

4шт.

24

ND061515

FLEXIBLE HOSE

3650mm

1шт.

26

ND061516

HOSE,550.00 mm

1шт.

27

ND061517

HOSE,750.00 mm

1шт.

29

ND061518

FLEXIBLE HOSE

3150mm

1шт.

Serial Number : DDD0001001 And After

1шт.

29

ND104860

HOSE

1шт.

Serial Number : DDD0001001 And After

1шт.

30

ND061519

FLEXIBLE HOSE

3200mm

1шт.

34

ND034059

BOLT

16шт.

35

ND034050

SCREW

8шт.

48

ND078446

SECURING STRAP

370mm

10шт.

Serial Number : Until DDD0001009

1шт.

48

ND106910

STRAP

10шт.

Serial Number : DDD0001010 And After

1шт.
