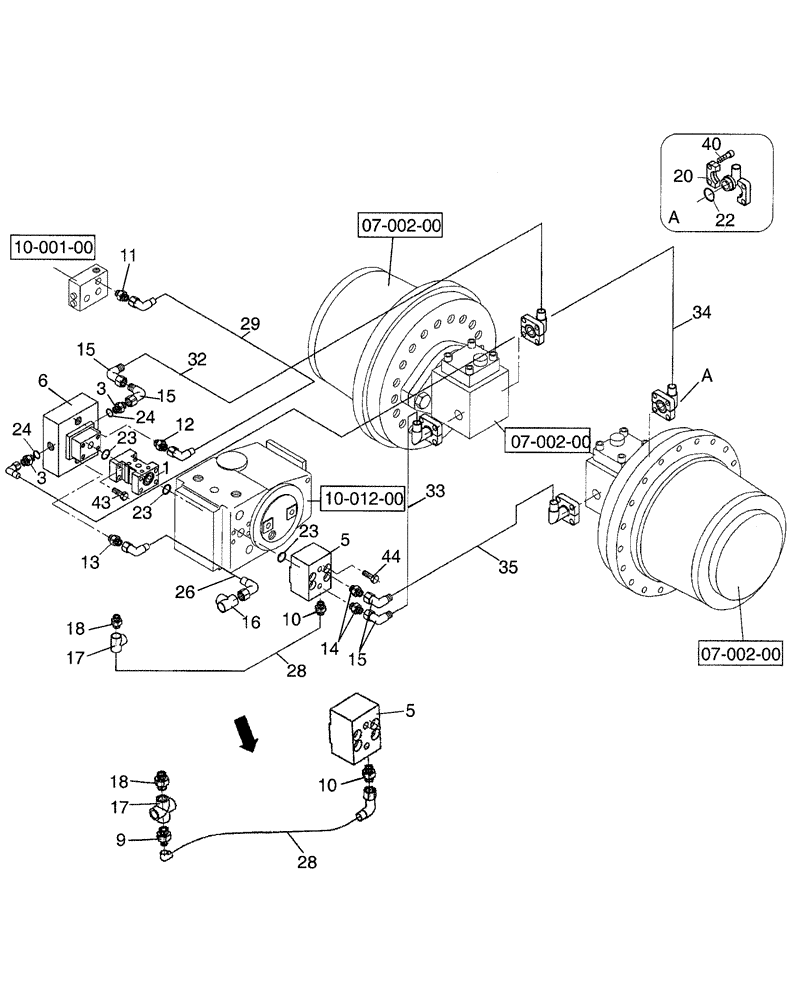

Запчасти Case SV212 (09-001-00[01]) - HYDRAULIC CIRCUIT, BRAKING - IF USED (07) - BRAKES

1

ND031235

BLOCK

1шт.

3

ND052874

HYD CONNECTOR

2шт.

5

ND067793

BLOCK

1шт.

6

ND090925

VALVE

1шт.

9

ND062391

REDUCER

1шт.

Serial Number : DDD0001010 And After

1шт.

10

ND062133

HYD CONNECTOR

1шт.

Serial Number : Until DDD0001009

1шт.

10

ND062180

HYD CONNECTOR

1шт.

Serial Number : DDD0001010 And After

1шт.

11

ND062154

HYD CONNECTOR

1шт.

12

ND062156

HYD CONNECTOR

1шт.

13

ND062188

HYD CONNECTOR

1шт.

14

ND062217

HYD CONNECTOR

2шт.

15

ND062300

ELBOW

3шт.

16

ND062393

HYD CONNECTOR

1шт.

17

ND062325

HYD CONNECTOR

1шт.

Serial Number : Until DDD0001009

1шт.

17

ND107018

HYD CONNECTOR

1шт.

Serial Number : DDD0001010 And After

1шт.

18

ND062324

HYD CONNECTOR

1шт.

20

ND062008

HALF-COLLAR

8шт.

22

ND079933

O-RING

4шт.

23

ND079934

O-RING

3шт.

24

ND079939

O-RING

2шт.

26

ND061263

FLEXIBLE HOSE

440mm

1шт.

28

ND061799

FLEXIBLE HOSE

200mm

1шт.

Serial Number : Until DDD0001009

1шт.

28

ND106984

HOSE

1шт.

Serial Number : DDD0001010 And After

1шт.

29

ND061510

HOSE,500.00 mm

1шт.

32

ND061511

HOSE,820.00 mm

1шт.

33

ND103078

HOSE

1шт.

34

ND103075

HOSE

1шт.

35

ND103074

HOSE

1шт.

40

ND034059

BOLT

16шт.

43

ND034063

BOLT

8шт.

44

ND034064

BOLT

4шт.
