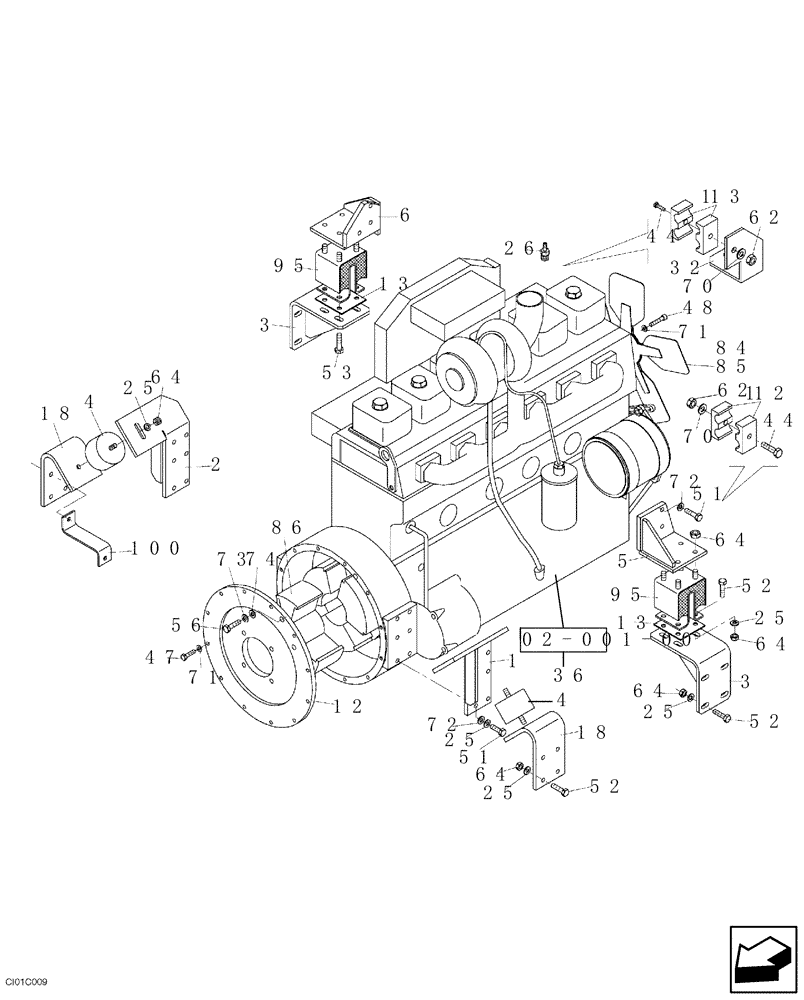

Запчасти Case SV212 (02-001-00[01]) - ENGINE - ENGINE MOUNTING (02) - ENGINE

1

ND028621

SUPPORT

1шт.

2

ND028625

SUPPORT

1шт.

3

ND030802

SUPPORT

2шт.

4

ND046074

RUBBER MOUNTING

2шт.

5

ND029756

SUPPORT

1шт.

6

ND029753

SUPPORT

1шт.

12

ND031279

FLANGE

1шт.

13

ND049398

PLATE

4шт.

18

ND030873

SUPPORT

2шт.

25

ND042815

WASHER

ID 12

34шт.

26

ND030807

HYD CONNECTOR

1шт.

32

ND029207

SUPPORT

1шт.

36

ND093295

ENGINE

Once Exhausted, See Your Nearest Cummins Dealer

1шт.

44

ND021187

BOLT

M8 x 50

2шт.

47

ND021195

BOLT

M10 x 35

10шт.

48

ND024266

BOLT

M10 x 80

4шт.

51

ND021311

BOLT

M12 x 35

18шт.

52

ND021312

BOLT

M12 x 40

24шт.

53

ND021313

BOLT

M12 x 45

1шт.

56

ND023846

SCREW

M16 x 20

2шт.

62

ND021848

NUT

M8

2шт.

64

ND034086

NUT

M12

36шт.

70

ND035940

SPRING WASHER

ID 8

4шт.

71

ND035941

WASHER

ID 10

14шт.

72

ND035942

WASHER

ID 12

20шт.

73

ND035943

WASHER

ID 16

2шт.

74

ND029253

WASHER

ID 17

2шт.

84

ND104468

FAN

1шт.

85

ND104467

SPACER

1шт.

86

ND091164

SPACER

1шт.

95

ND064129

RUBBER MOUNTING

2шт.

100

ND066152

WIRE HARNESS

1шт.

112

ND062019

CLAMP

2шт.

113

ND064807

CLAMP

2шт.
