(12-022-00[01]) - OPERATORS COMPARTMENT

Запчасти Case SV212 (12-022-00[01]) - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

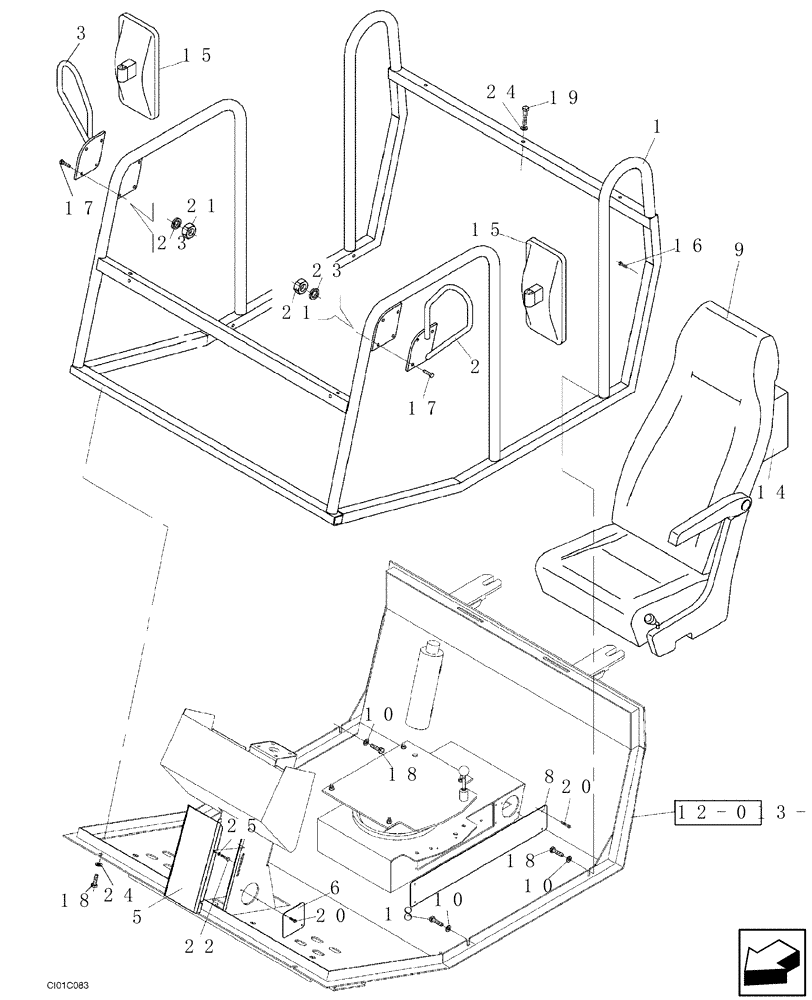

Схема запчастей Case SV212 - (12-022-00[01]) - OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS
17
18
24
18
20
25
24
9
8
17
2
10
5
1
14
18
19
15
10
18
10
15
23
22
6
21
20
16
21
23
12-013-00
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

ND011288

HANDRAIL

1шт.

2

ND017742

SUPPORT

1шт.

3

ND017749

SUPPORT

1шт.

5

ND031736

COVER

1шт.

6

ND051939

COVER

2шт.

8

ND031738

COVER

2шт.

9

ND031878

DRIVER SEAT

Prior to PIN : DDD001068, Does Not Include "Operator Present" Seat Switch

1шт.

10

ND050532

WASHER

4шт.

14

ND090877

HOLDER

1шт.

15

ND064412

REAR VIEW MIRROR

2шт.

16

ND023808

SCREW

M8 x 10

2шт.

17

ND021182

BOLT

M8 x 28

8шт.

18

ND021301

BOLT

M10 x 20

7шт.

19

ND021199

BOLT

M10 x 55

3шт.

20

ND024957

SCREW

M4 x 12

16шт.

21

ND026416

NUT

M8

8шт.

22

ND023790

BOLT

M5 x 10

4шт.

23

ND029310

WASHER

ID8,2

8шт.

24

ND029250

WASHER

ID 10,5

6шт.

25

ND029247

WASHER

ID 5,3

4шт.
