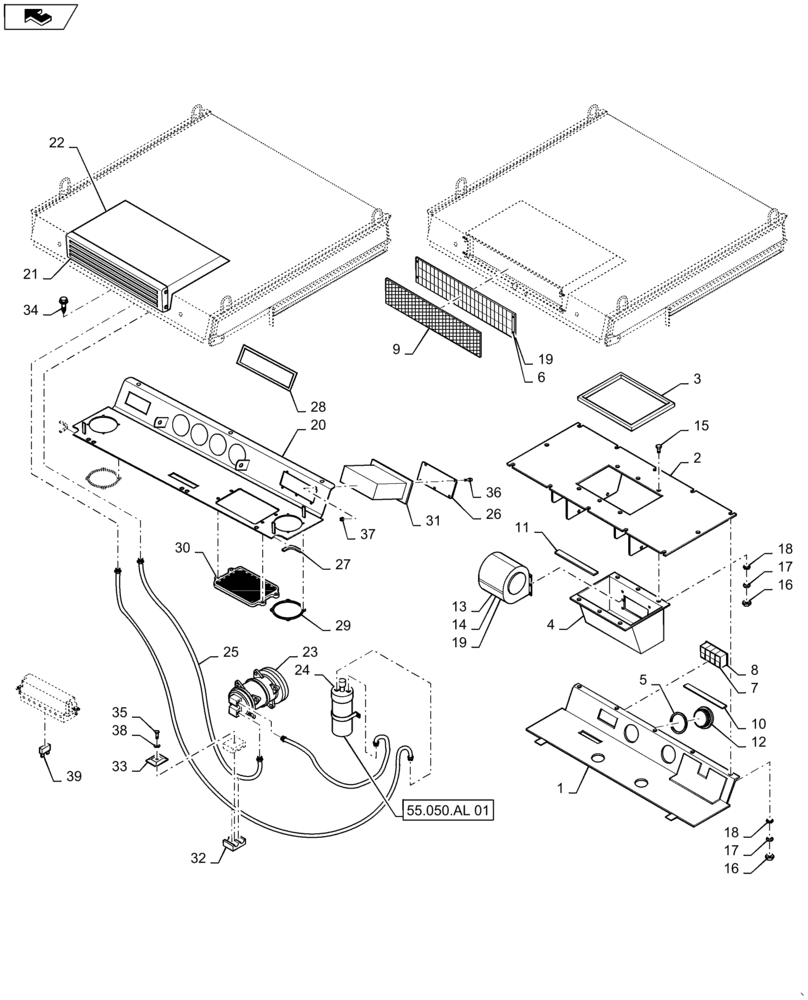

Запчасти Case SV211 (55.050.AL) - CAB VENTILATION PARTS (55) - ELECTRICAL SYSTEMS

1

ND017873

COVER

Upper

1шт.

2

ND138903

COVER

Roof

1шт.

3

ND106244

FRAME

1шт.

4

ND103120

SUPPORT

Fan Holder

1шт.

5

ND134446

WASHER

2шт.

6

ND136586

SHEET

Steel

1шт.

7

ND065303

ROCKER SWITCH

1шт.

8

ND065317

LENS

1шт.

9

ND137766

FILTER

1шт.

10

ND103220

SEALING STRIP

1шт.

11

ND066078

SEALING STRIP

1шт.

12

ND089999

RING

2шт.

13

ND102003

FAN

1шт.

14

ND138140

HARNESS

1шт.

15

ND021287

BOLT,M8 x 16

6шт.

16

ND021847

NUT

14шт.

17

ND029309

SPRING WASHER

14шт.

18

ND029248

WASHER

17шт.

19

ND069931

RIVET

5шт.

20

ND148333

PANEL

1шт.

21

ND136587

GRATE

1шт.

22

ND136690

AIR CONDITIONER

Unit and Cab Parts Kit

1шт.

23

47368598

KIT

Engine Parts

1шт.

24

47373133

CONDENSER

Receiver - Dryer, Complete

1шт.

25

47373134

KIT

Air Conditioning Hoses

1шт.

26

ND134831

ACCESS COVER

1шт.

27

ND078396

TRIM

1шт.

28

ND076085

TAPE

1шт.

29

ND148344

ACCESS COVER

2шт.

30

ND148342

GRATE

1шт.

31

ND148336

HOLDER

1шт.

32

ND061999

CLAMP

1шт.

33

ND062001

CLAMP

1шт.

34

ND024965

SELF-TAP SCREW

Self-Tapping

3шт.

35

ND024236

BOLT

4шт.

36

ND127694

BOLT

5шт.

37

ND107948

LOCK NUT

5шт.

38

ND029248

WASHER

4шт.

39

ND065919

FUSE,15A

15A

1шт.
