(44.905.AA[01]) - PAD FOOT - SMOOTH DRUM

Запчасти Case SV211 (44.905.AA[01]) - PAD FOOT - SMOOTH DRUM (44) - WHEELS

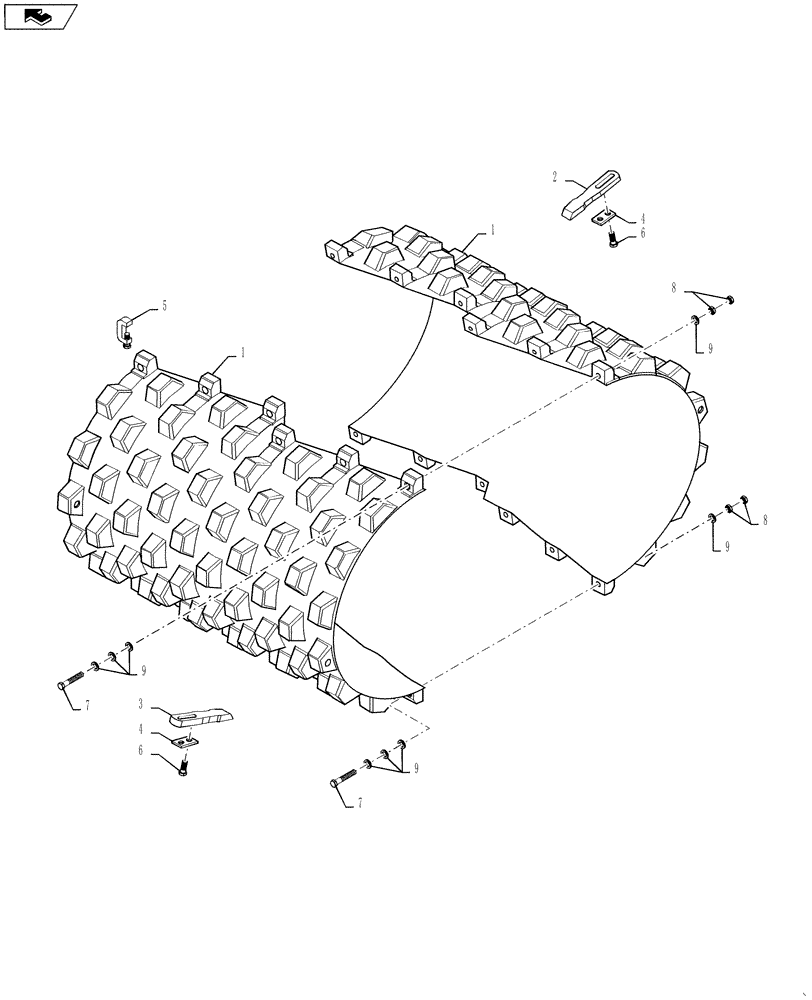

Схема запчастей Case SV211 - (44.905.AA[01]) - PAD FOOT - SMOOTH DRUM (44) - WHEELS
home
6
4
6
7
9
9
1
4
3
8
9
5
8
9
7
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84420577

SHELL

Padfoot Segment

2шт.

2

ND124148

SCRAPER

Used with Shell

9шт.

2

47519832

SCRAPER

Used with Segmented Drum W/O Shell

9шт.

3

ND124147

SCRAPER

Used with Shell

9шт.

3

47519835

SCRAPER

Used with Segmented Drum W/O Shel

9шт.

4

ND124162

MOUNTING PLATE

Used with Shell

18шт.

4

47519842

PLATE

Used with Segmented Drum W/O Shel

18шт.

5

84420584

CLAMP

4шт.

6

ND103566

BOLT

36шт.

7

ND021253

BOLT

12шт.

8

ND021853

NUT

24шт.

9

ND029255

WASHER

48шт.
