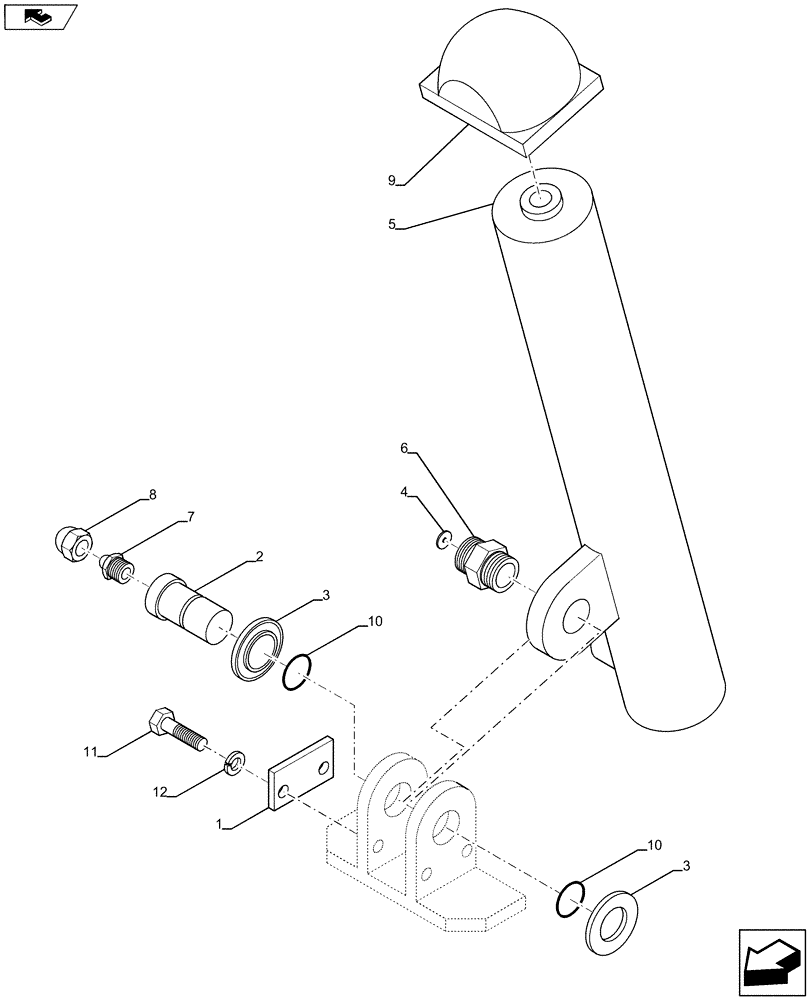

Запчасти Case SV211 (35.610.AE[03]) - MOUNTING - HYDRAULIC CYL, PLATFORM TILT (35) - HYDRAULIC SYSTEMS

1

ND103345

RETAINING PLATE

1шт.

2

ND049262

PIN

1шт.

3

ND049260

INSERT

2шт.

4

ND121527

ORIFICE

1шт.

5

ND117465

HYDRAULIC CYLINDER

1шт.

6

ND062221

HYD CONNECTOR

1шт.

7

ND070133

LUBE NIPPLE,M10 x 1

1шт.

8

ND064758

PLUG

Cap

1шт.

9

ND102263

STOP

1шт.

10

ND079727

O-RING

O-Ring

2шт.

11

ND021292

BOLT

2шт.

12

ND035940

SPRING WASHER

2шт.
