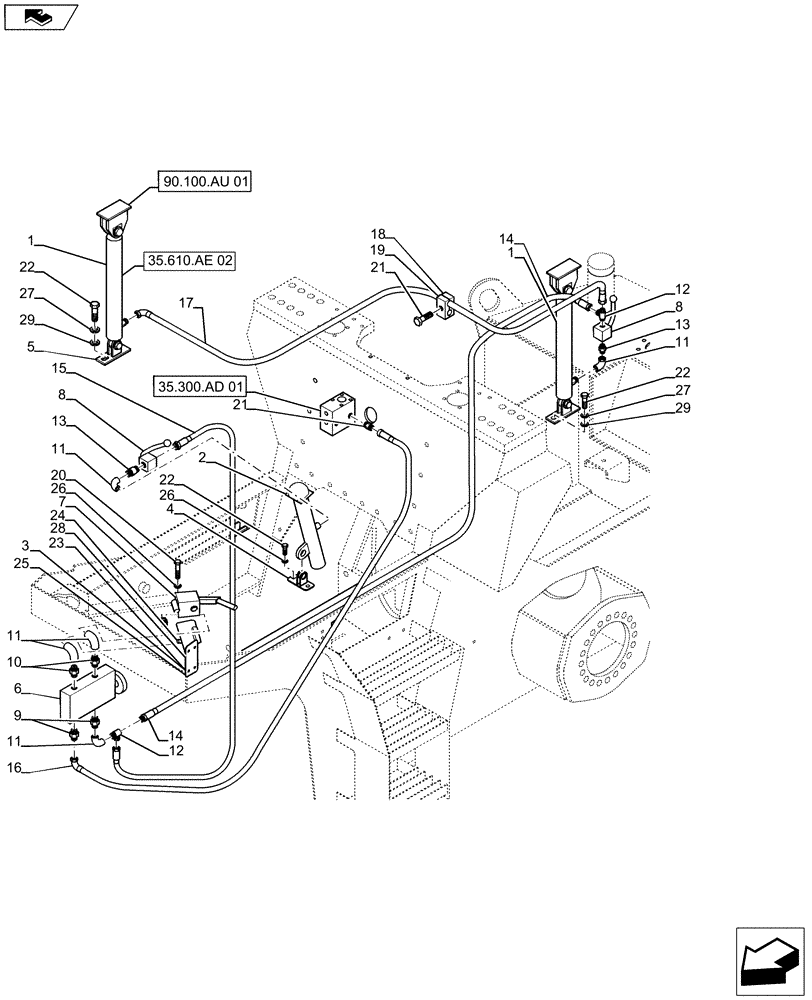

Запчасти Case SV211 (35.610.AE[01]) - HYDRAULICS - HOOD AND PLATFORM TILT (35) - HYDRAULIC SYSTEMS

1

ND121518

HYDRAULIC CYLINDER

Hood Tilting

2шт.

2

ND121517

HYDRAULIC CYLINDER

Platform Tilting

1шт.

3

ND126729

HOLDER

1шт.

4

ND126749

BRACKET

1шт.

5

ND126728

BRACKET

1шт.

6

ND117464

CONNECTING BLOCK

1шт.

7

ND067870

HYDRAULIC PUMP

Hand

1шт.

8

ND120031

DRAIN VALVE

Shut-Off

2шт.

9

ND062220

HYD CONNECTOR

2шт.

10

ND062206

HYD CONNECTOR

2шт.

11

ND062414

ELBOW

Connector

5шт.

12

ND062313

HYD CONNECTOR

Tee

2шт.

13

ND120032

COUPLING

Hydraulic Connector

2шт.

14

ND103636

HOSE ASSY.

1шт.

15

ND123757

HYDRAULIC HOSE

1шт.

16

ND061941

HOSE

1шт.

17

ND123487

HYDRAULIC HOSE

1шт.

18

ND064851

SLEEVE

Clamp

1шт.

19

ND064807

CLAMP

1шт.

20

ND021179

BOLT

3шт.

21

ND021184

BOLT

1шт.

22

ND021310

BOLT

6шт.

23

ND021182

BOLT

3шт.

24

ND021847

NUT

3шт.

25

ND021848

NUT

3шт.

26

ND029309

SPRING WASHER

3шт.

27

ND035942

WASHER

6шт.

28

ND035940

SPRING WASHER

3шт.

29

ND122456

WASHER

4шт.
