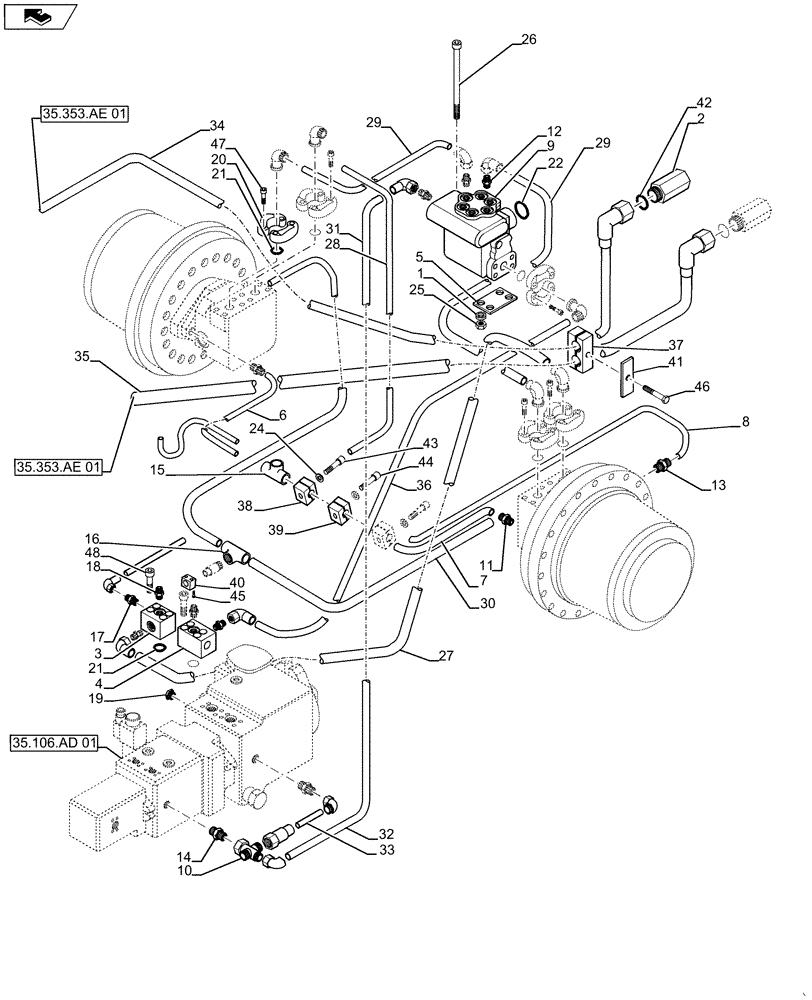

Запчасти Case SV211 (35.353.AE[02]) - HYDRAULICS - TRAVEL SYSTEM (B) (35) - HYDRAULIC SYSTEMS

1

ND035942

WASHER

4шт.

2

ND031345

HYD CONNECTOR

2шт.

3

ND124156

MANIFOLD

1шт.

4

ND124157

MANIFOLD

1шт.

5

ND124168

SHIM

1шт.

6

ND124180

HYD TUBE

1шт.

7

ND124182

HYD TUBE

1шт.

8

ND124192

HYD TUBE

1шт.

9

ND142508

HYDRAULIC MANIFOLD

1шт.

10

ND108887

HYD TUBE

1шт.

11

ND062153

HYD CONNECTOR

4шт.

12

ND062180

HYD CONNECTOR

1шт.

13

ND062181

HYD CONNECTOR

3шт.

14

ND120734

PIPE

Hydraulic Connector

2шт.

15

ND062294

TEE

Tee

1шт.

16

ND062335

TEE

Tee

1шт.

17

ND062228

HYD CONNECTOR

4шт.

18

ND062214

HYD CONNECTOR

3шт.

19

ND062378

PLUG

1шт.

20

ND062008

HALF-COLLAR

Yoke

10шт.

21

ND079933

O-RING

7шт.

22

ND079934

O-RING

1шт.

23

ND035941

WASHER

3шт.

24

ND029248

WASHER

6шт.

25

ND021850

NUT

Cap Nut

4шт.

26

ND123460

BOLT

Cap

4шт.

27

ND123474

HYDRAULIC HOSE

1шт.

28

ND123475

HYDRAULIC HOSE

1шт.

29

ND123478

HYDRAULIC HOSE

2шт.

30

ND124022

HYDRAULIC HOSE

1шт.

31

ND124021

HYDRAULIC HOSE

1шт.

32

ND123472

HYDRAULIC HOSE

1шт.

33

ND061148

HOSE

1шт.

34

ND123466

HYDRAULIC HOSE

1шт.

35

ND061509

FLEXIBLE HOSE

1шт.

36

ND123476

HYDRAULIC HOSE

Hydraulic

1шт.

37

ND064836

SLEEVE

Clamp

1шт.

38

ND064797

SLEEVE

Clamp

2шт.

39

ND064799

CLAMP

1шт.

40

ND064809

CLAMP

1шт.

41

ND064834

COVER

1шт.

42

ND073366

WASHER

Packing Ring

2шт.

43

ND024231

BOLT

2шт.

44

ND024233

BOLT

2шт.

45

ND024234

BOLT

2шт.

46

ND024252

BOLT

1шт.

47

ND021195

BOLT

20шт.

48

ND024264

BOLT

9шт.
