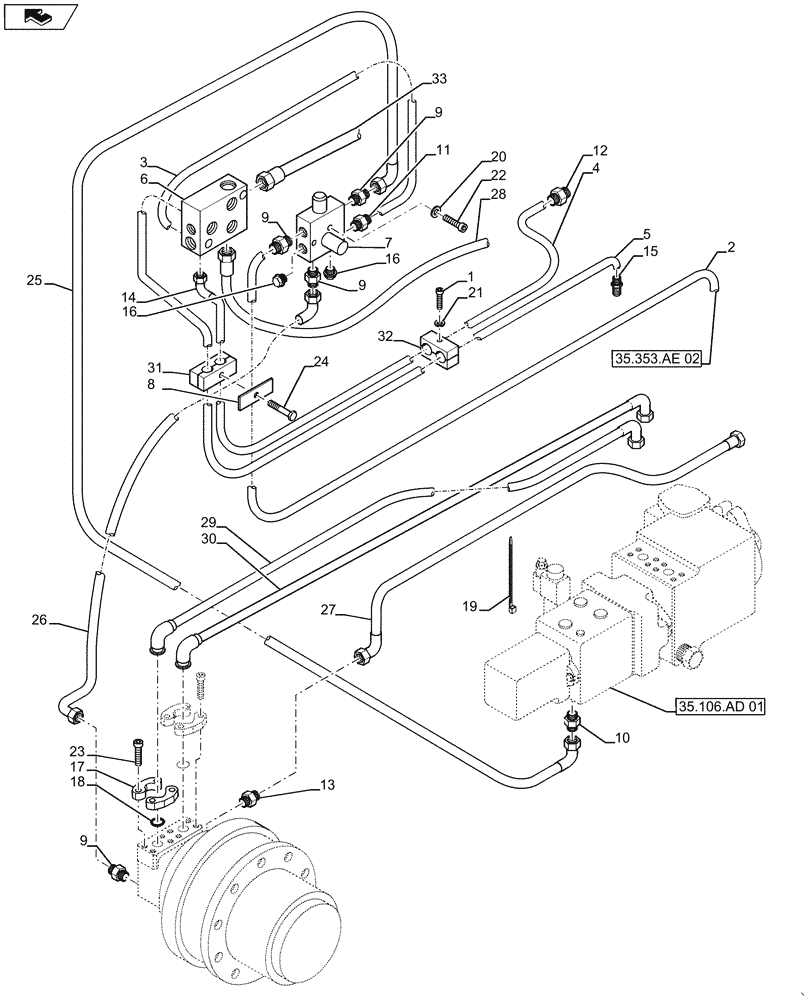

Запчасти Case SV211 (35.353.AE[01]) - HYDRAULICS - TRAVEL SYSTEM (A) (35) - HYDRAULIC SYSTEMS

1

ND024231

BOLT

ORFICE

1шт.

2

ND127572

HYD TUBE

1шт.

3

ND128619

HYD TUBE

1шт.

4

ND128620

HYD TUBE

1шт.

5

ND127575

HYD TUBE

1шт.

6

ND123634

VALVE BLOCK

Incl 7, 8

1шт.

7

ND067924

SOLENOID

2шт.

8

ND064807

CLAMP

(Not Shown)

1шт.

9

ND062153

HYD CONNECTOR

4шт.

10

ND062199

HYD CONNECTOR

1шт.

11

ND062173

HYD CONNECTOR

1шт.

12

ND062181

HYD CONNECTOR

1шт.

13

ND062128

HYD CONNECTOR

1шт.

14

ND062367

HYD CONNECTOR

Elbow

1шт.

15

ND062247

HYD CONNECTOR

Coupling

1шт.

16

ND062452

PLUG

2шт.

17

ND062008

HALF-COLLAR

Yoke

4шт.

18

ND079933

O-RING

2шт.

19

ND106910

STRAP

15шт.

20

ND035941

WASHER

1шт.

21

ND029248

WASHER

1шт.

22

ND024264

BOLT

1шт.

23

ND021195

BOLT

8шт.

24

ND021184

BOLT

1шт.

25

ND123470

HYDRAULIC HOSE

1шт.

26

ND123471

HYDRAULIC HOSE

1шт.

27

ND123479

HYDRAULIC HOSE

1шт.

28

ND061509

FLEXIBLE HOSE

1шт.

29

ND123477

HYDRAULIC HOSE

1шт.

30

ND123480

HYDRAULIC HOSE

1шт.

31

ND064802

SLEEVE

1шт.

32

ND064797

SLEEVE

1шт.

33

ND123466

HYDRAULIC HOSE

1шт.
