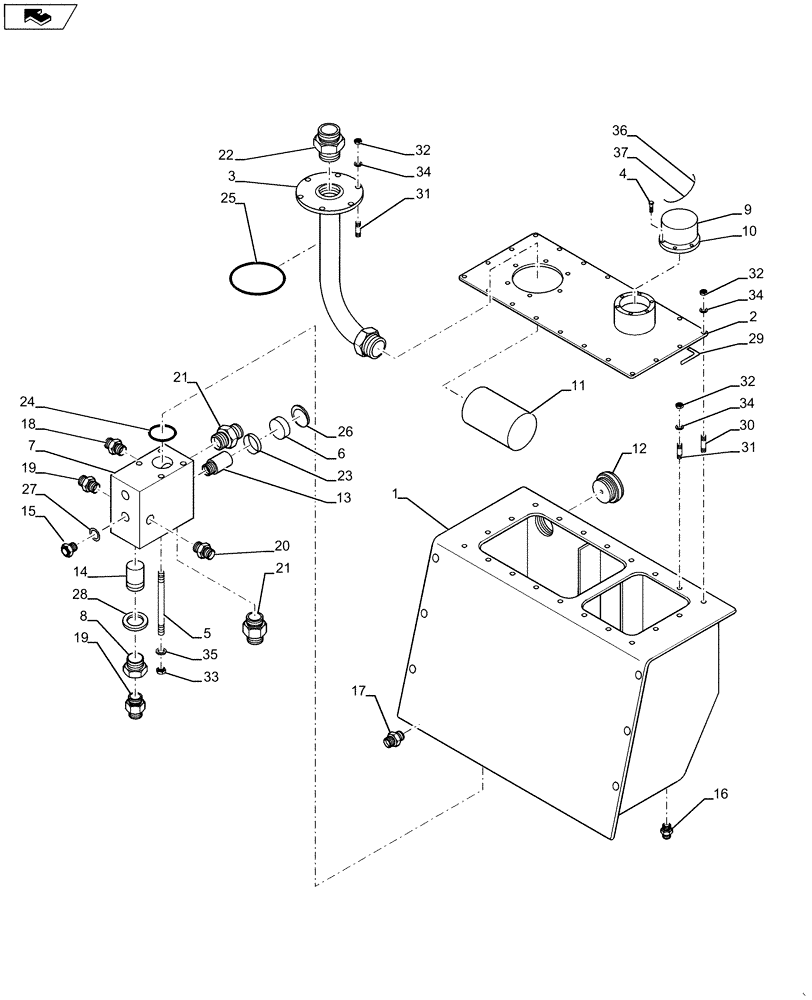

Запчасти Case SV211 (35.300.AD[01]) - HYDRAULIC TANK ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

ND123243

RESERVOIR, HYDRAULIC

1шт.

2

ND123245

TOP COVER

1шт.

3

ND123246

HOLDER

Filter Holder

1шт.

4

ND054246

BOLT

1шт.

5

ND103189

ROD

4шт.

6

ND103190

PLUG

1шт.

7

ND123247

COUPLING BLOCK

Cube

1шт.

8

ND052876

HYD CONNECTOR

Reducing Piece

1шт.

9

ND065471

CAP

Filler

1шт.

10

ND065473

ADAPTER

Accessory

1шт.

11

ND067790

FILTER STRAINER

Suction

1шт.

12

ND070150

LEVEL GAUGE

Oil Level Gauge

1шт.

13

ND102098

THERMOSTAT

1шт.

14

ND067788

VALVE

1шт.

15

ND098754

SENDER UNIT

Hyd Oil Temp

1шт.

16

ND062375

PLUG

1шт.

17

ND062200

HYD CONNECTOR

1шт.

18

ND062154

HYD CONNECTOR

1шт.

19

ND062140

HYD CONNECTOR

2шт.

20

ND062161

HYD CONNECTOR

1шт.

21

ND062162

HYD CONNECTOR

2шт.

22

ND062185

HYD CONNECTOR

1шт.

23

ND079933

O-RING

1шт.

24

ND079937

O-RING

1шт.

25

ND079938

O-RING

1шт.

26

ND102045

SNAP RING

Locking Ring

1шт.

27

ND073356

PACKING RING

1шт.

28

ND073363

O-RING

1шт.

29

ND103221

SEALING STRIP

Sealing Strip

1шт.

30

ND106607

STUD

2шт.

31

ND021710

STUD

24шт.

32

ND021847

NUT

26шт.

33

ND021848

NUT

4шт.

34

ND029309

SPRING WASHER

26шт.

35

ND035940

SPRING WASHER

4шт.

36

ND037453

LEADSEAL

Indicator

1шт.

37

ND100090

CABLE

Wire

1шт.
