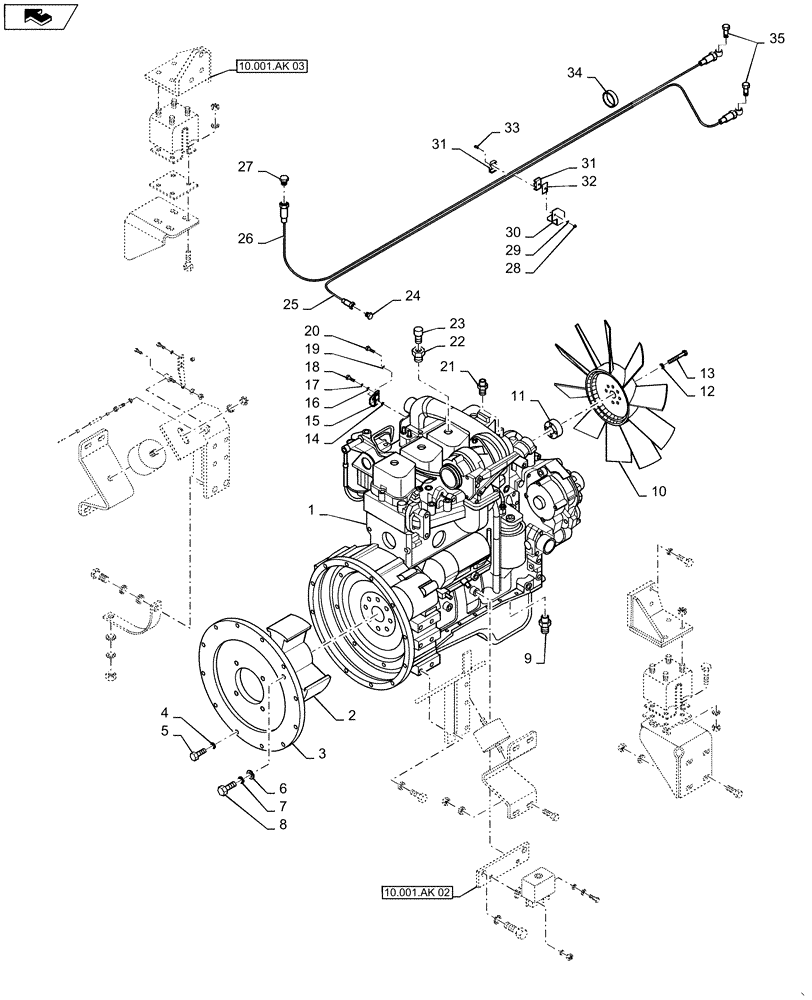

Запчасти Case SV211 (10.001.AK[01]) - ENGINE - INSTALLATION (10) - ENGINE

1

NSS

NOT SOLD SEPARAT

See Nearest Cummins Dealer For Engine Parts And Service

1шт.

1

ND088177

BELT, TRANSMISSION

Water Pump

1шт.

2

ND091165

SPACER

Hydraulic Clutch

1шт.

3

ND124144

FLANGE

1шт.

4

ND035941

WASHER

10шт.

5

ND021195

BOLT

10шт.

6

ND029253

WASHER

2шт.

7

ND035943

WASHER

2шт.

8

ND021327

BOLT

2шт.

9

ND028169

HYD CONNECTOR

1шт.

10

47962373

FAN

1шт.

11

ND123029

SPACER

Fan

1шт.

12

ND029249

WASHER

5шт.

13

ND121212

BOLT

4шт.

14

ND021846

NUT

1шт.

15

ND124165

CLAMP

1шт.

16

ND029281

WASHER

1шт.

17

ND118926

WASHER

5шт.

18

ND092866

BOLT

1шт.

19

ND029308

WASHER

2шт.

20

ND100963

BOLT

1шт.

21

ND030807

HYD CONNECTOR

1шт.

22

ND028174

HYD CONNECTOR

Reducer

1шт.

23

ND067921

SENSOR

Oil Pressure

1шт.

24

ND062207

HYD CONNECTOR

1шт.

25

ND129033

HOSE

1шт.

26

47477266

HOSE

1шт.

27x

ND053059

HYD CONNECTOR

1шт.

28

ND021848

NUT

3шт.

29

ND035940

SPRING WASHER

2шт.

30x

ND126747

HOLDER

1шт.

31

ND062019

CLAMP

2шт.

32

ND064807

CLAMP

Backing Plate

2шт.

33

ND021187

BOLT

2шт.

34

ND078445

SECURING STRAP

Tie Strap

5шт.

35

ND062457

BOLT

Includes Bolt, Banjo Fitting, and Sealing Washer

2шт.
