(09-03[01]) - BATTERY HOLD DOWN & FUEL TANK PARTS (GROUP 473) (ND131884)

Запчасти Case SV210 (09-03[01]) - BATTERY HOLD DOWN & FUEL TANK PARTS (GROUP 473) (ND131884) (09) - CHASSIS/ATTACHMENTS

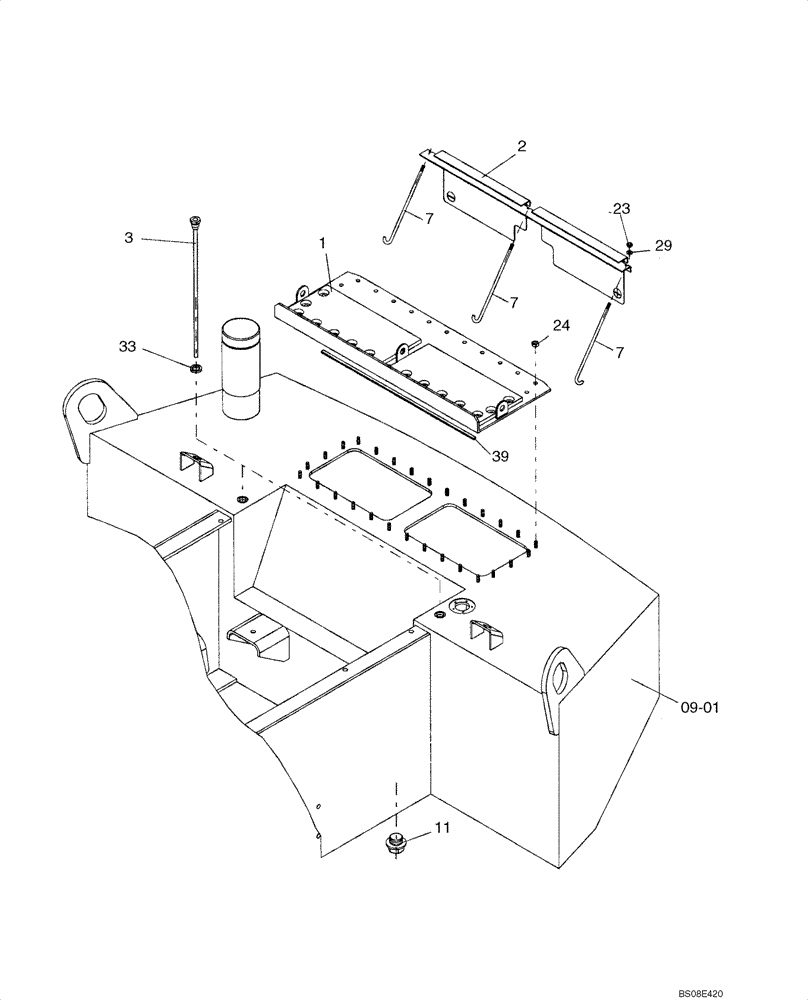

Схема запчастей Case SV210 - (09-03[01]) - BATTERY HOLD DOWN & FUEL TANK PARTS (GROUP 473) (ND131884) (09) - CHASSIS/ATTACHMENTS
2
39
29
3
11
09-01
7
23
1
7
7
33
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

BATTERY HOLD DOWN AND FUEL TANK PARTS (ND131884) (GROUP 473)

1шт.

1

ND126748

COVER

1шт.

2

ND112489

SUPPORT

See Figure 09-04 (01) For Service Breakdown

1шт.

3

ND104397

FLEXIBLE HOSE

2шт.

7

ND052503

TIE-ROD

3шт.

11

ND065651

PLUG

1шт.

23

ND034087

NUT

3шт.

24

ND034088

NUT

28шт.

29

ND029249

WASHER

3шт.

33

ND073360

PACKING RING

2шт.

39

ND101584

TAPE

1шт.
