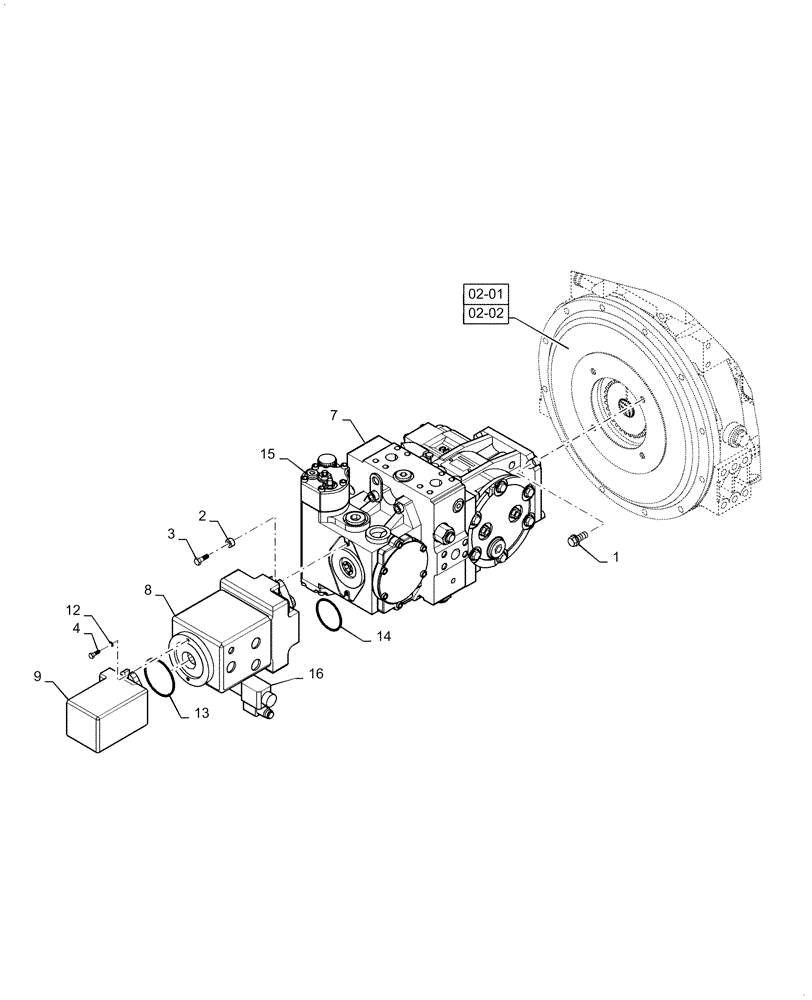

Запчасти Case SV210 (08-16[01]) - PUMP, HYDRAULIC (GROUP 122) (ND138838) (08) - HYDRAULICS

REF

INSTRUCTION

PUMP, HYDRAULIC (ND138838) (GROUP 122)

1шт.

1

ND118093

BOLT

4шт.

2

ND029267

WASHER

Replaces ND049809 Washer - Old Qty 4 Used On Some Models

2шт.

3

ND104175

BOLT

2шт.

4

ND034059

BOLT

2шт.

7

ND091342

HYDROSTATIC PUMP

, Serial Range: -NENTB2084

1шт.

7

47788073

PUMP

For Valve See 15, Start Serial: NENTB2085

1шт.

8

ND101788

HYDRAULIC PUMP

For Valve See 16

1шт.

9

ND123032

HYDRAULIC PUMP

1шт.

12

ND029266

WASHER

2шт.

13

ND138267

O-RING

1шт.

14

ND144149

O-RING

O-RING, Replaces ND139919 O-Ring

1шт.

15

47953172

CONTROL VALVE

1шт.

16

47953189

SOLENOID VALVE

1шт.
